Normally Open Thermal Protector Bimetal disc Thermostat switch

HCET-A TB02 cheap bimetallic thermal switch
HCET-A Series Thermostat

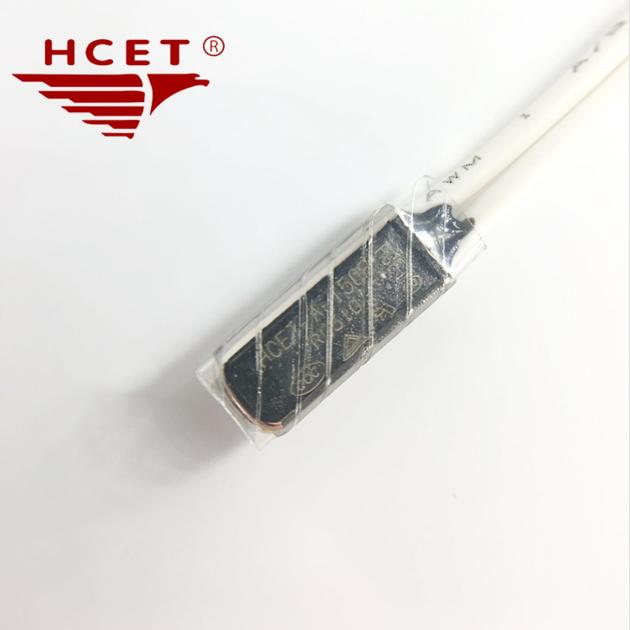

HCET-A/TB02 series is a precise protector with small size. It is sensitive, accurate and reliable, especially suitable for heat cable, battery protection board, micro-motor and security protection of transformer. The patent number: ZL2013 20699495.2

Special Features
Electrical Characteristics
Technical Parameters
Main Applications
● Small size, Installation is more flexible and convenient;
● Have the stable work characteristics and excellent reliability;
● Sensitive temperature and snap action；
● Nickel and wires are optional；
● Each type of parts strictly implemented European ROHS environmental standards；
● Terminals are optional with normally closed Model B and normally open Model K
● 2.5A/250 V AC
● 5A/120 V AC
● 10A/12 V AC
● 5A/24 V AC
● Action temperature from 30℃-155℃, Every 5 ℃ a specification. Temperature is optional and customized.
● Temperature tolerance:¯3℃,¯5℃.
● Battery pack, Li battery protect board
● Electrical tools
● PC board, temperature sensitive cable
● Heating-pads, electrical blankets
● Fluorescent ballasts and lightings, transformers
Products Application
Products Application :Lithium battery protection board / Electric tools / Electric blanket / battery pack / heating pad / PC Circuit board / Temperature sensing cable / tube style motor / fluorescent lamp ballast
