Nonwoven Dust Bag Machine

Dust bag machine：

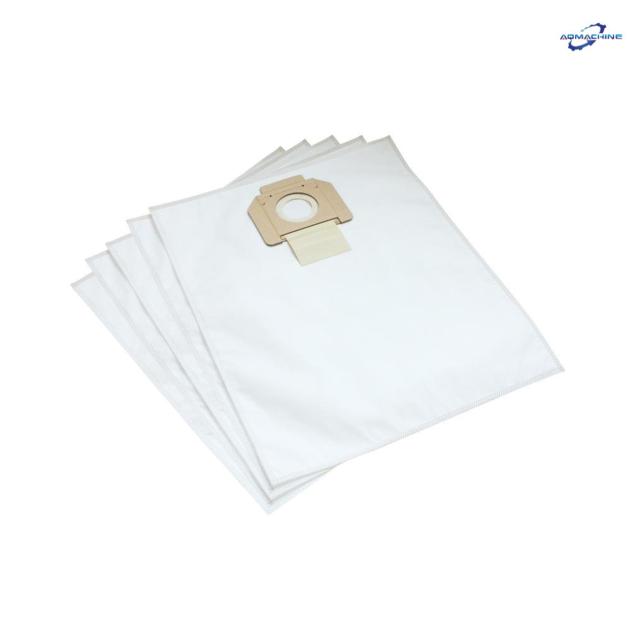

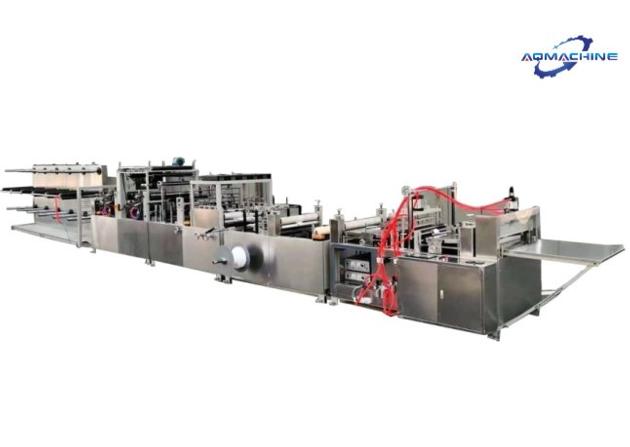

The dust bag machine (M-300-700) is an air filter bag machine which is designed to manufacture non-woven filter bags. This non woven bag machine is equipped with a full servo control system and a printing system, and comes with a photoelectric tracking device for the bag mouth binding, bonding and cutting, which enables a smooth, neat, and burr-free edge with a high bonding strength.

Production Process：

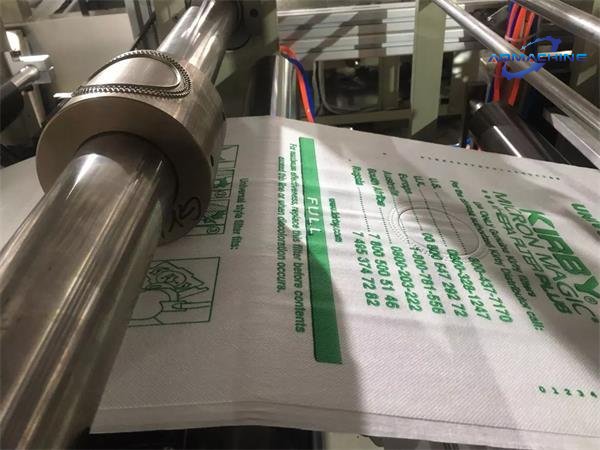

The dust bag machine can automatically complete the entire non-woven bag manufacturing process from the raw material feeding to the printing, pocket mouth binding, folding, ultrasonic bonding, cutting, and finished product output.

Specifications：

Model: M-(300-700)

Equipment feature: Full servo control

Printing system: Environment friendly flexo printing

Folding device: Stainless steel bag edge forming unit

Embossing device:

Bonding system: Ultrasonic bonding

Bag size: ≤700mm

Bag types: Binding pocket mouth type, folded edge type

Control system: PLC, Servo

Power: Servo motor

Parameter setting: Color touch screen

Production speed: 10-50pcs/minute (It depends on bag specifications)

Compressed air: Customers provide for themselves

Carton size: Depending on machine configurations and models

Power supply: 220V, 50Hz, 7.5Kw

Weight: about 3500kg

Features：

1. The vaccum cleaner bag machine is equipped with a continuous variable speed change device and adjustable automatic bag mouth binding device.

2. At the back side of the machine, there are 10 groups of raw materials feeding devices with mechanical tension control devices, manual web guiding devices, and a quick feeding wrench.

3. It is designed with an automatic balance material conveying system and a bag edge folding system which comes with a set of stainless steel edge forming molds and 2 press rollers for sufficiently shaping folded bag edges.

4. All transparent guiding rollers are made of a hard anodizing aluminum with a diameter of 75mm.

5. All molds are made from special materials and the embossing figures are engraved on the computer.

6. This bag production line will automatically stop when there are no materials.

7. Ultrasonic bonding molds, bag mouth bindings and edge sealing molds use a manual screw rod to adjust the widths and a fast hand lever for positioning.
