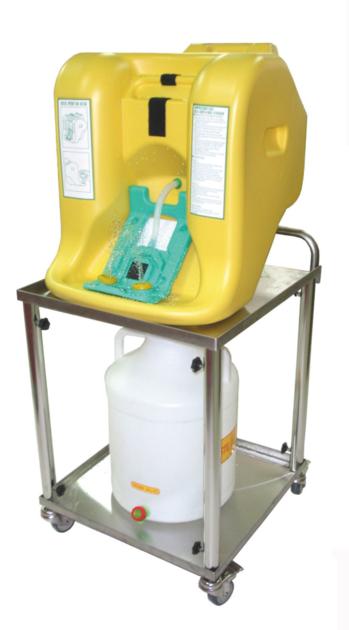

Non-pressurized Self Contained Eyewash

Model EEW-NP
Tank Dimension: 550(W)x550(D)x650(H)mm
HDPE material, anti-UV and flameproof
Volume 80Liters
Available Flow Capacity 40Liters, supply for above 15mis washing work
Eyewash Plate Dimension: 204(W)x326(D)x111(H)mm
HDPE material, anti-UV and flameproof
Spray head Nylon material，provide more than 1.5L/min water flow
Water Pipe Line Supply (inlet) Inlet pipe is silicon material with seal for avoiding leaking
Waste (outlet) 1/2” PVC transparent pipe, drain waste water to the sink
or to waste liquid disposal bottle

Sign Symbol Size: 185(W)x200(H)mm
On the green eyewash tray
Operation
Instruction Size: 100(W)x250(L)mm
On the left side of the tank
Maintenance Instruction Size: 100(W)x250(L)mm
On the right side of the tank

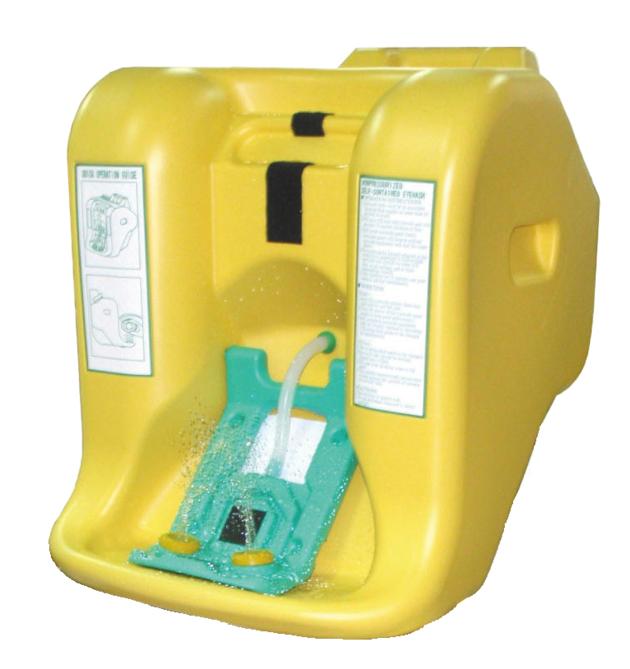

Operation 1. Just pull down the green eyewash tray and the tank will be activated to deliver a dual stream of water.
2. User has to hold eyelids open and roll eyeball to let water flow on all the surfaces and moisten the surrounding of eyeball.
3. Push up the green eyewash tray to the original place when not in use.
