Network 1080 PLicense plate capture Camera
Price: | US$ 65 |
---|---|
Minimum Order: | |
Payment Terms: | T/T |
Port of Export: |
Product Details
Model No.: | Brand Name: |
---|
Certification: | |
---|---|
Specification: |
Ambarella ARM11 CPU 1080P Video Resolution With TF card slot Support auto capture picture by external alarm triger Support upload Picture to FTP server Support Alarm input (Alarm Output is optional) Max.Support 120 km /h Vehicle Speed 6 mm , 8mm ,12mm ,16 mm , 25 mm,5-50 Varifocal lens are optional Anti Strong Light & WDR function Support choosing different working mode according vehicle speed |
Packaging & Delivery
Packaging: | |
---|---|
Delivery/Lead Time: | |
Production Capacity: |
Product Description
Model No. VG-LPR-AM2.0MP-IR140 video Sensor Exmor 1/2.8" SONY 2.1 CMOS Sensor
Max. Resolution Full HD/1080P(1920x1080) OR D1
Illumination Color:0.05Lux at F1.2 / IR LED on 0.001Lux at F1.2
WDR Support
Compression format H.264 Main Profile @ Level 4.1 / Motion JPEG
Multi streaming FHD/1080P + Full D1 + CVBS
FPS 1-30FPS
Streaming Support H.264 and M-JPEG(Bit rate is adjustable)
3D noise reduction support
ROI area setting Support (Make pointed area picture be better than other area)
Lens 3MP 6MM, 8MM ,12MM,16MM and 25mm are opitional
Working mode 5 mode Mode A1: common ( No anti strong light function)
Mode A2: car speed 30KM/H
ModeA3: Car Speed 60KM/H
Model A4: Car Speed 90KM/H
Mode A5: Car Speed 120KM/H ,
Mode A6: Car Speed 180KM/H
IR LEDs light intensity is adustable 00-32 Level

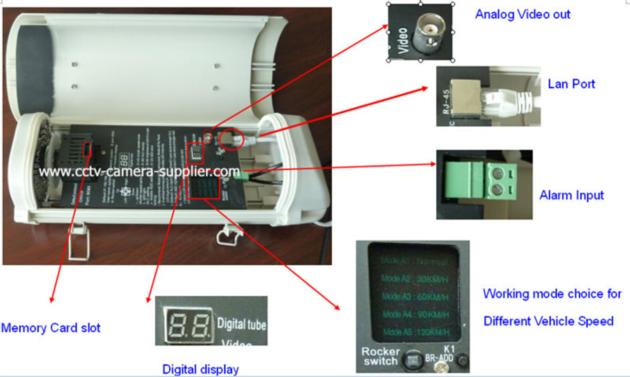

internet Interface One RJ45,10/100M, one BNC,one power socket
Internet protocol
IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP,
UPnP, DDNS, NTP, IGMP, ICMP and ect
Access protocol WEB, SDK API, ONVIF
storage Video Computer or NVR
Picture TF card or FTP server
Safety watch dog auto discovery ,when device gets crashed
default setting remotely set
others OS Microsoft Windows XP/Windows 7
Microsoft Internet Explorer 6.x or above
video ouput 1.0Vp-p,75ohm
working power DC12V
working temperature -10 degrees to 50 degrees
weight 2.5kg( Volume weight 4KG )
size 460mm(L)×(W)190mm×(H)150mm
