Negative Flash Dryer System for Cassava Flour Plant

Negative Flash Dryer System for Cassava Flour Plant


The whole Flash Drying Machine for FUFU Flour Processing Plant is comprised of five major sections: Washing & Crushing Sections, Screening Sections, Concentrating Sections, Drying Section and Packing Section. DOING has its own factory and entire Flash Drying Machine for FUFU Flour Processing Plant , so we can offer you the best service, production and competitive price of Flash Drying Machine for FUFU Flour Processing Plant





.Negative Flash Dryer System for Cassava Flour Plant





The Flash Drying Machine for FUFU Flour Processing Plant includes these main machines:

1. Feeding system

2. Conveyor

3. Dry Sieve

4. Paddle Washing Machine,

5. Cutting,

6. Rasper mill,

7. Frame filter,

8. Fine Fiber Sieve,

9. Drying Process,

10. Packing Process.



On the following is the detailed information of Flash Drying Machine for FUFU Flour Processing Plant each section.



A. Washing Section: two accepts are included: Dry Sieve and Paddle Washing Machine. dry sieve can effectively remove dirt, sand and small stones. Paddle washing machine will remove silts and impurities from the surface of cassava. At the same time, the outer peel of cassava will be simply handed by these two machines. The section also can be performed manually.

Negative Flash Dryer System for Cassava Flour PlantNegative Flash Dryer System for Cassava Flour Plant

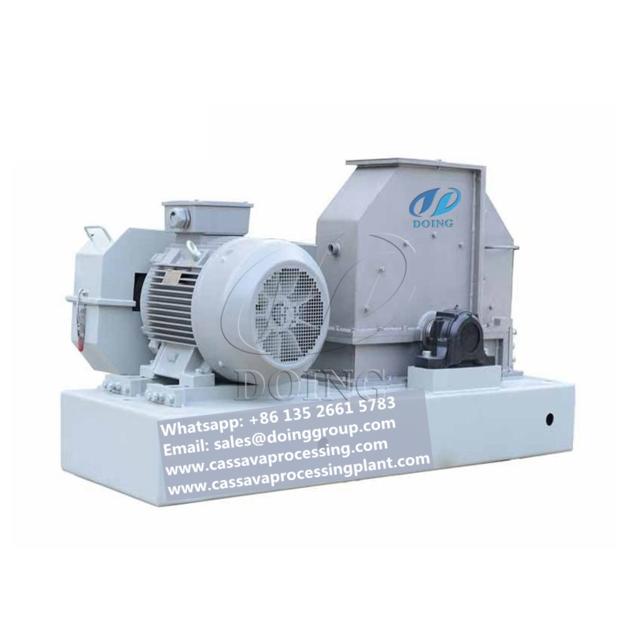

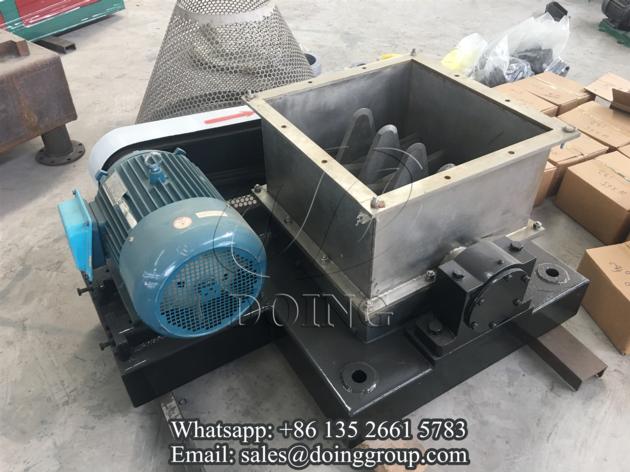

B. Crushing Section: it includes Cutting Machine and Rasper. Cutting Machine can cut cassava into small pieces for primary crushing; Rasper is best for filing and fragmentation, so that the crushing rate will be higher. It has features of modern design, compact structure, high speed, high rasping coefficient, even particles, high extraction rate. The advantage of it is to reduce the amount of work the next section needs to do.



Negative Flash Dryer System for Cassava Flour Plant Negative Flash Dryer System for Cassava Flour Plant



C. Screening Section: desander is mainly used to separate the fiber and sand from the slurry. It is stainless steel, easy for installation and maintenance. (high efficiency of sand removing, good technical index)Negative Flash Dryer System for Cassava Flour Plant Negative Flash Dryer System for Cassava Flour Plant


D. Dewater section



Filter press is used to dewater in this process, after it, the water content is less than 40%

Negative Flash Dryer System for Cassava Flour Plant

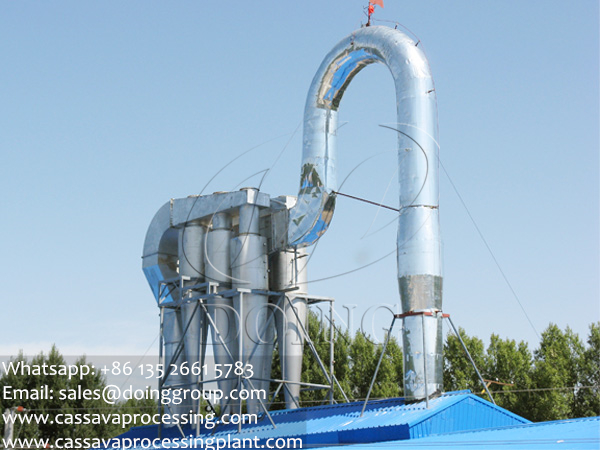

E. Flash dryer

Flash dryer is very important for drying,that’s decided the quality of final flour,so some special design must be considered, please check the photos and drawing .

Feeding the dewatered mash into hoist of flash dryer by feeding screw conveyor,The lifter throws the wet flour into the dryer tube,and then exchange of the wet four with hot air to ensure drying flour. After drying ,the flour into the cyclone separator, please check the photos,flour fall down along with cyclone separator,pass the seal auger into the dry powder outlet,and then enter the starch sifter,then packing it. The hot air is expelled upwards in a spiral shape in the middle of separator, and is drawn to the exhaust gas tube by a fan, and then discharged outside.

Negative Flash Dryer System for Cassava Flour Plant
F. Packing Section:Various spouts to meet different needs

Sifting the dryied flour to remove fibrous material. And it is important to obtain the high quality of free-flowing flour,free fiber with a good particle size. The sifter designed 10layers ,it is not only just separate the fibrous,but also to cool the temperature,and also each layer design different mesh to prevent the block.Using automatic packing machine to packed the flour,sewing the bag.



Negative Flash Dryer System for Cassava Flour Plant

G. Autonomous System

Negative Flash Dryer System for Cassava Flour Plant
