Nanofiber Electrospinning Units Used to Synthesize a Variety of Polymers

Nano Fiber Electrospinning Unit Introduction:
CYKY's CY-NFES-040 model electrospinning equipment is a complete unit for Nanofiber electrospinning.
It is used to make nano and micro fibers ranging from 50nm to 5 microns in diameter. Many kind of polymers like Protein nanofibers, carbon nanotubes, inorganic nanofibers etc. can be synthesized using our nano fiber electrospinning unit. Our equipment uses horizontal spinning when compared to other equipments available in the market. This technology assures the quality of the spun fibers with no dip and uneven diameter.

Nano Fiber Electrospinning Unit Key Features:
Cabin Heating:  Upto 45®C using 1000 watt coil heater
The chamber is provided with Residual Charge Discharge Stick which is used for static removal.

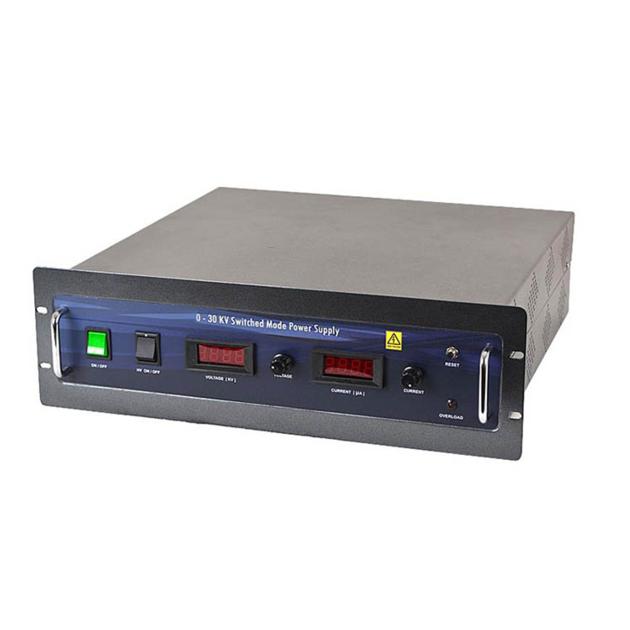

Safety switch provided to switch off H.V. Power supply when door is opened.
LED cabin lighting and back light to view Needle tip and electro spin process.
Exhaust fan is provided for solvent vaporization. It is also used for cooling down the equipment after spin process.
Emergency stop is provided on the control panel to stop the equipment where there is any emergency.
Coaxial spinneret: Our Nano fiber electrospinning unit equips Coaxial spinneret which helps to produce Hollow nanofibers and Core / Sheath nanofibers. This technology can also be used to combine different characteristics of each polymer into one fiber.

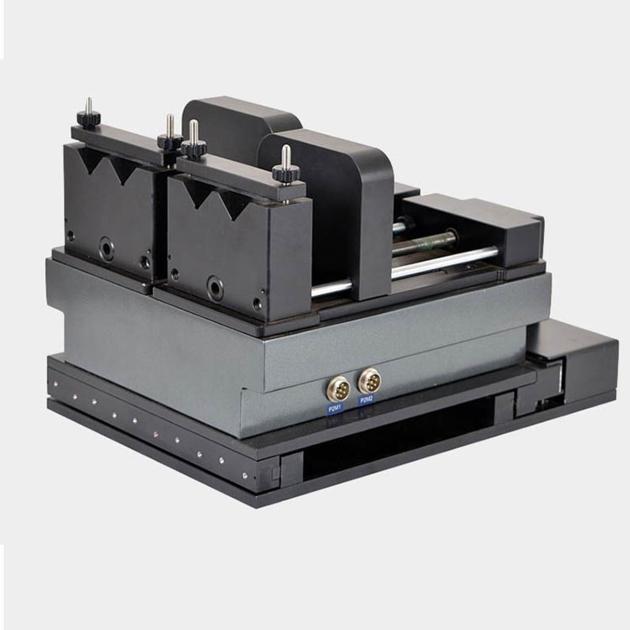

Graduation scale provided on the granite surface in X & Y direction which helps the end-user to achieve repetitive results by marketing the positions of syringe pump and target.
User friendly software enables PC interfacing that helps the regulation and control of various features like Rotating mandrel speed, Spin Duration, Syringe pump flow rate, vertically target movement etc.

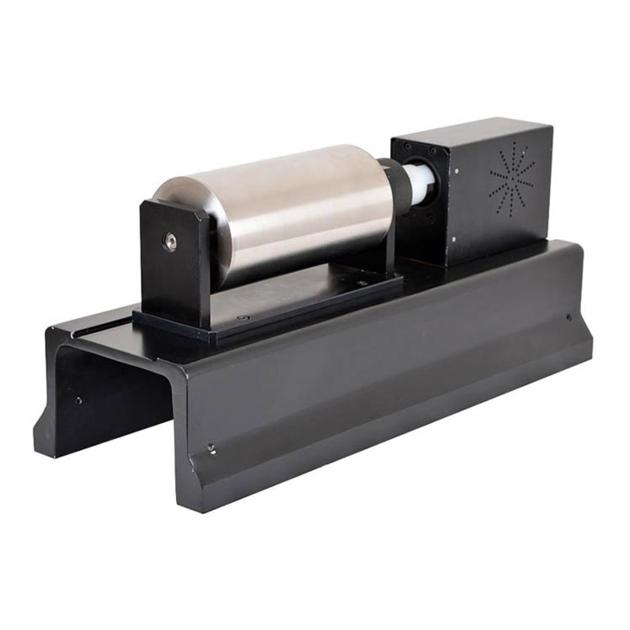

Rotating Mandrel targets of varying diameters, Stationary target and Reciprocating vertically moving target provided with the system.
System hood has features like Exhaust fan, halogen lighting and transparent door for monitoring electrospinning process.
Built-in Arc Protection Circuit
