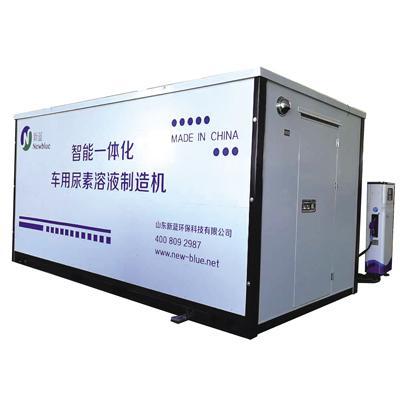

NW-650 DEF Solution Production Equipment

Technological Craft of DEF Solution Production Equipment
1 Preface of DEF Solution Production Equipment
Shandong Newblue provides one set Adblue production system.

1.1 Raw water quality: use tap water supplied by customers.

1.2 Output quality：meet customer’s requirement, 2 stage RO conductivity less than 10³´µs/cm, EDI conductivity＜1³´µs/cm.

1.3Users need to provide raw water, electricity, etc.for the system.


2 Design basis of DEF Solution Production Equipment
The manufacturing process and materials of the imported equipment should comply with the standards or equivalent standards in the industrial law of the American Institute of Mechanical Engineers (ASME) and the ASTM (ASTM).

The manufacturing process and materials of domestic equipment should meet the requirements of the latest version of the following standards and procedures

HJ/T270-2006 “Reverse Osmosis Water Treatment Device”
JB2932-86 “Technical Requirements for the Manufacture of Water Treatment Equipment”
GB/T18300-2001 “Automatic Control Sodium Ion Exchanger Technical Conditions”
GB/T 11446.1—1997 “Electronic Grade Water”
GB/T19249—2003 Standard
GB150, GB151 “Pressure Vessel Standard”
GB5226.1—2002 “Electric Safety Standard”
GB29518—2013 Standard

The design and manufacture of control equipment, measuring instruments and electrical equipment shall comply with the relevant regulations and standards.

Installation, commissioning and acceptance of the implementation of the existing national standard, Ministry of the relevant regulations, standards and regulations.

3 Technical craft system design of DEF Production Equipment
250L/H（25℃）2 stage RO + EDI water treatment system
tap water→raw water pump→quartz sand filter→active carbon filter→scale inhibitor dosing device →precision filter→1st stage high-pressure pump→一1st stage RO device→PH adjusting→2nd stage high-pressure pump →2nd stage RO→EDIsystem→EDIwater tank →purified water pump→mixing tank→transmission pump →precison filter→production tank
