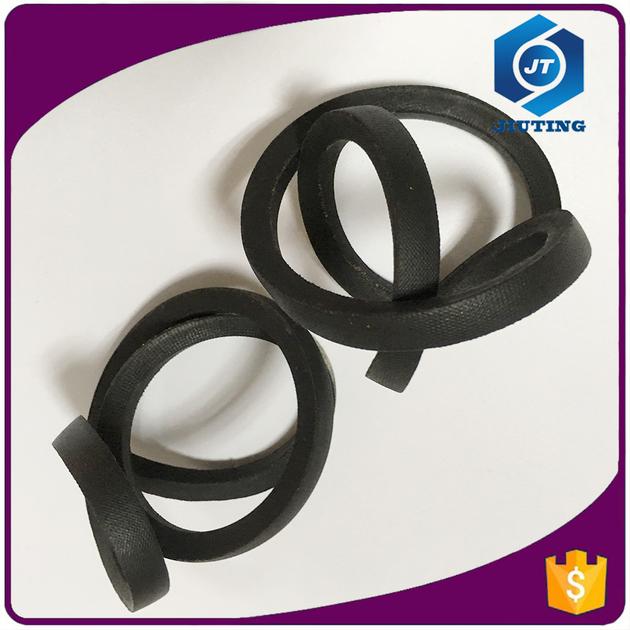

NBR V belt

Material：NBR
Feature:
· Wide breadth but thin belt, excellent elastic and flexible property
· High transmission efficiency under the operating environment of high-speed rotation, reverse flexible, small band pulley, etc.
· Core rubber with high tension and low elongation, while the consistent tension is maintained during the process of operation
· Excellent heat-resistance, oil-proof, and wearing resistance
· Less slip while large transmission effect during the process of operation
· Less noise during the process of operation
type top width pitch height length conversion lengtj(inch) angle
3V 9.5 / 8 la=li+50 71"-394" 40
5V 16 / 13.8 la=li+82 71"-394" 40
8V 25.5 / 23 la=li+144 71"-394" 40

type top width height length(inch)
A 13 8 21"-394"
B 17 11 24"-394"
C 22 14 59"-394"
D 32 19 86"-394"
E 38 23 98"-394"

Details

Structure
No. Name Function Material
1 Top Fabric Protect the lining tensile member Polyester Cotton Canvas
2 Buffer Rubber Support and protect the adhesive force of the tensile member CR, EPDM
3 Tensile Member Critical material to pass the dynamic force Polyester, Nylon
4 Bottom Rubber Maintain the shape of the rubber and improve its side compression performance CR, EPDM
Application
