Motorized & Manual Liquid Limit Device (Casagrande)
| Price: | US$ ask for last price / Unit |
|---|---|
| Minimum Order: | |
| Payment Terms: | CASH , L/C, TT, MONEYGRAM, WESTERN UNION |
| Port of Export: |
Product Details
| Model No.: | Brand Name: | ParsRos |
|---|
| Certification: | |
|---|---|
| Specification: |
Product Model Manual Motorized Dimensions 240x230x150 mm 200x290x170 mm Weight (approx.) 2 kg 4.2 kg STANDARDS ASTM D4318; BS 1377:2; AASHTO T89; TS 1900-1 |
Packaging & Delivery
| Packaging: | yes |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Motorized & Manual Liquid Limit Device (Casagrande)
PRODUCT CODE
PRS-ZE0200 Manual Liquid Limit Device (Casagrande),BS
PRS-ZE0202 Manual Liquid Limit Device (Casagrande), ASTM - AASHTO
PRS-ZE0210 Motorized Liquid Limit Device (Casagrande), BS, 220-240 V 50-60 Hz
PRS-ZE0212 Motorized Liquid Limit Device (Casagrande),ASTM –AASHTO 220-240 V 50-60 Hz

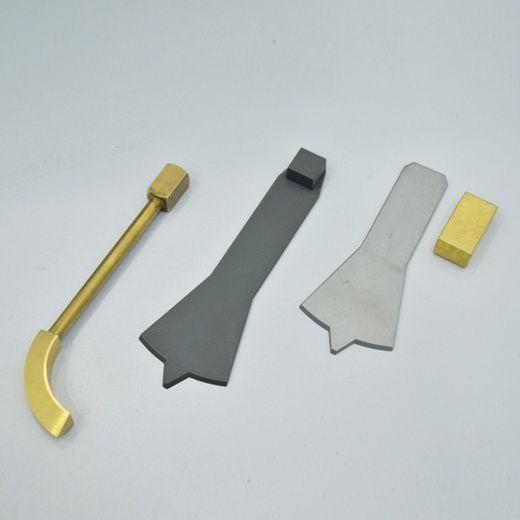

PRS-ZE0215 Metal Grooving Tool and Gauge Block, ASTM
PRS-ZE0216 Plastic Grooving Tool, ASTM
PRS-ZE0217 Plastic Grooving Tool, BS
PRS-ZE0218 Brass Grooving Tool, AASHTO
PRS-ZE0220 Resilience (Rebound) Tester, ASTM
PRS-ZE0221 Resilience (Rebound) Tester, TS 1900-1; AASHTO
PRS-ZE0225 Spare Brass Cup, for all Models
The PARSROS Manual and Motorized Liquid Limit Apparatus (Casagrande) are used to determine the moisture content at which clay soils pass from plastic to liquid state.
The Devices consist of an adjustable crank and cam mechanism, a blow counter and a removable brass cup fitted on the base.
Different models with the same shape but with different base and cup weights are available according to the required specifications.
Manual and Motorized versions are available.
PRS-ZE0200 and PRS-ZE0200 models are supplied with a BS type plastic grooving tool.
PRS-ZE0202 and PRS-ZE0212 models are supplied with a ASTM type plastic grooving tool.
Other types of grooving tools should be ordered separately.
|
