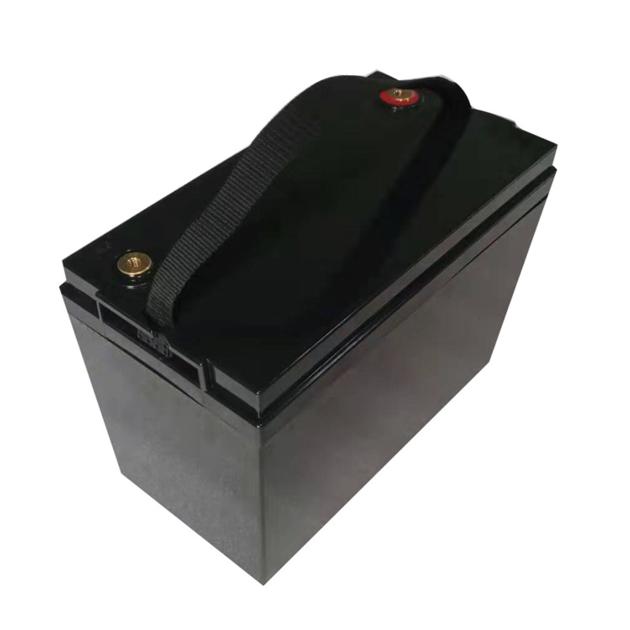

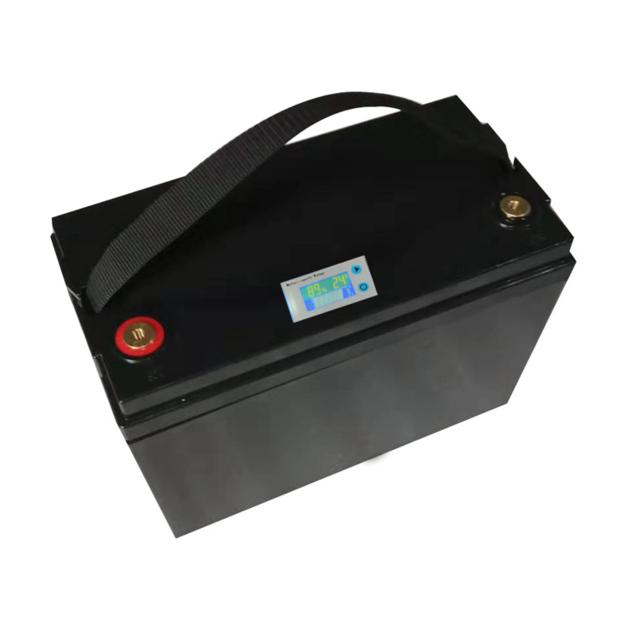

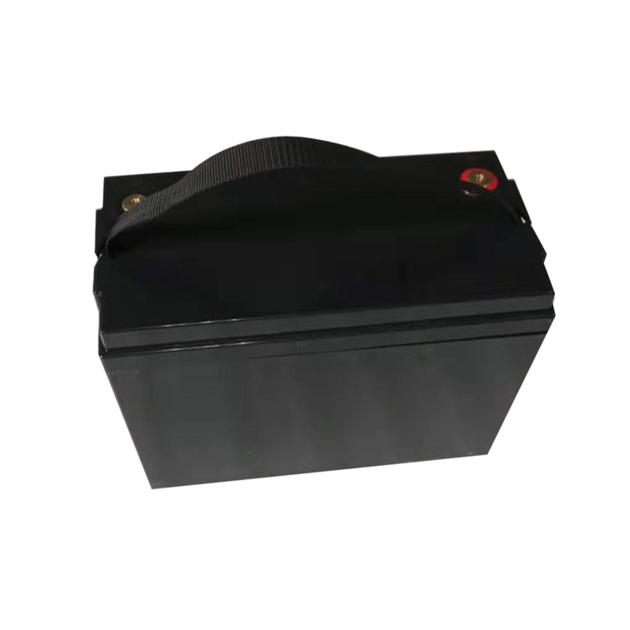

Motorhome 12v 100ah lifepo4 battery with smart bms 12V 100Ah Lithium Ion Battery Packs For RV Solar

Motorhome 12v 100ah lifepo4 battery with smart bms 12V 100Ah Lithium Ion Battery Packs For RV Solar System Yacht Golf Carts specification:
No.
Item
General Parameter
Remark
1
Rated Capacity
100.0Ah
Standard discharge(0.2 C5)after standard charge(0.2 C5)
2
Minimal Rated
Capacity
95.0Ah
3
Nominal Voltage
12.8V
4
Cycle Life
Higher than 60% of the Initial Capacity of the Cells
Charge: CC 0.2C to 14.6V, then CV till current to 0.05C
Rest: 30min.
Discharge: 0.2C to 10.0V
Temperature:20¯5℃
Carry out 2000cycles
5
Discharge cut-off voltage
10.0V
10.0V( recommended)
6
Charging cut-off voltage
14.8V
14.6V (recommended)
7
Standard charge
0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C
Charge time : Approx 7h
8
Standard discharge

Constant current 0.2C

Cut-off voltage 10.0V


9

Maximum Charge Current

100A


10

Continuous Discharge Current

200A
Over current 100¯5A 9mS
11
Operation Temperature Range
Charge: 5~45℃
60¯25%R.H.
12
Discharge: -10~60℃
13
Storage Temperature Range
Less than 1 year : 0~25℃
60¯25%R.H.
at the shipment state
Less than 3 months:-5~35℃
14
Weight
Approx: 6.1Kg
15
Max.Dimension
Height:182mmWidth: 130mmLength: 195mm
Motorhome 12v 100ah lifepo4 battery with smart bms 12V 100Ah Lithium Ion Battery Packs For RV Solar System Yacht Golf Carts feature:
Environmental friendly.
High density of energy.
Light weight.
Low self-discharge.
Low internal resistance.
Long cycle life, chargeable up to 1000 times.
No memory effect.
No fire, No explosion, No leakage.
