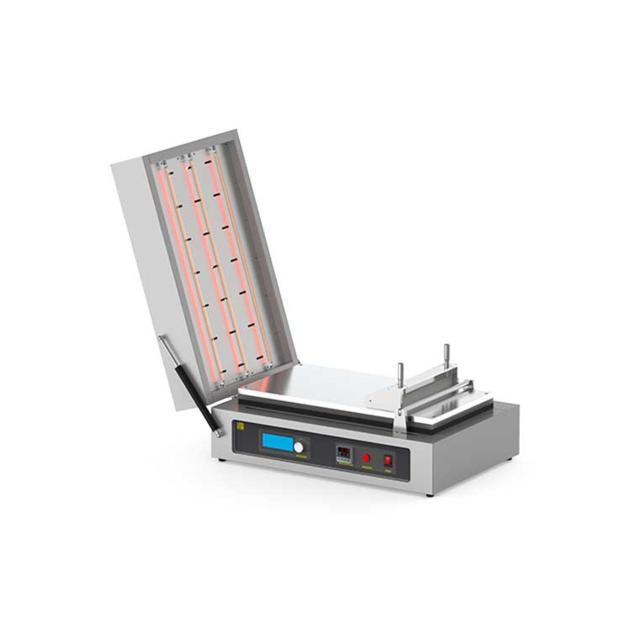

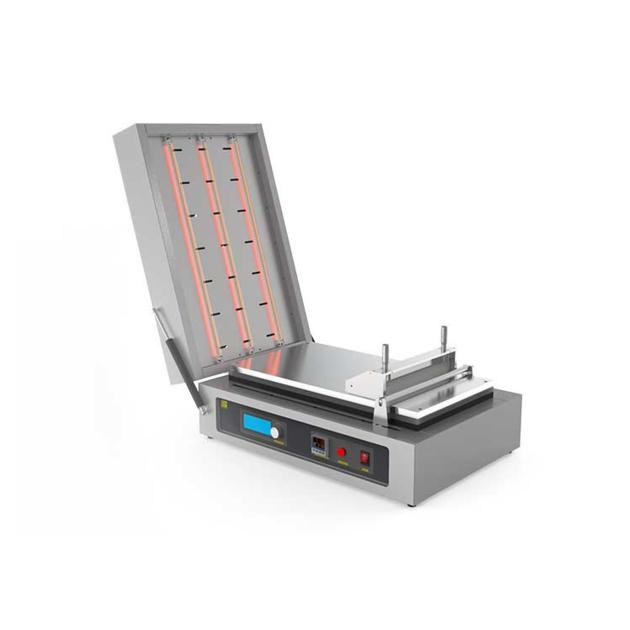

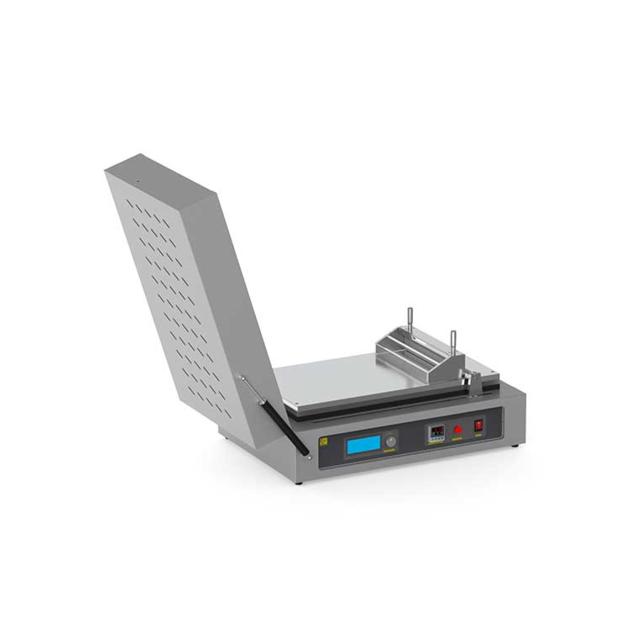

Mini Tape Casting Coater drying up to 100®C with Heated Vacuum Bed & Vacuum Pump
| Price: | US$ 3000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T D/P Western Union Paypal Money Gram Others |
| Port of Export: | Zhengzhou, Shanghai, Qingdao, etc. |
Product Details
| Model No.: | CY-MSK-AFA-III-HB-UV | Brand Name: | CYKY |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Working Power of Coater Power adaptor: Input 100-240VAC, Output 24VDC
Traverse Speed 10 - 100 mm/sec variable Accuracy: +/-10 mm/sec Coating Area Standard Package: 320mm(L) x 100mm(W) due to the width and occupied area of the 100mm applicator. Suggested Maximum: 350mm(L) x 180mm(W) Reduced width to avoid slurry spilling off the vacuum bed. Length 10 - 350 mm adjustable by using Adjustable Position Switch Vacuum Chuck Vacuum chuck made of Aluminum alloy with < 1.0 mm hole Vacuum Pump vacuum pump is included. Pump connector The vacuum control power switch is located on the front panel, and the power plug ( female ) built in the back of the machine to connect an optional vacuum pump Heating Pre-installed UV light on the top cover Built-in digital temperature controller with an accuracy of +/-1®C Suspension support helps open cover easily and safely Max. Heating Temp.: 100®C Note: In order faster and uniform heating, please preheated vacuum chunk to 60- 70oC before coating, and keep heating during coating, then close cover and increase the temperature to ~100oC after coating. Accessories: Film Applicator One 100 mm width micrometer adjustable film applicator is included (thickness adjustable from 0.01 - 3.5 mm) |
Packaging & Delivery
| Packaging: | Standard export wooden box packaging |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 200 Sets/Month |
Product Description
CY-MSK-AFA-III-HB-UV is a compact tape casting coater with the various heating designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, One 100 mm width adjustable micrometer applicator (doctor-blade). The heating plate with the digital controller either on top or bottom is optional for drying up to 100®C with +/-1®C temperature accuracy. This equipment can be used for researchers on ceramic tape castings and Li-Ion battery electrode coating.
Mini tape casting coater is an NRTL standard mini tape casting coater with the bottom vacuum chuck, which is heatable up to 100ºC and Film applicator is included. It is designed for the fixed thickness and extra thin polymer coating or conductive ceramic film on various substrates. It is small enough to put into glove-box through its air-lock chamber and can be used in Ar gas.
|
