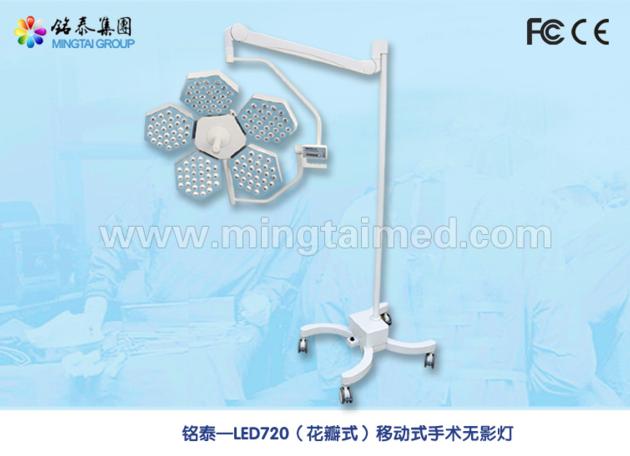

Mingtai LED720 LED520 petal model mobile surgery light

Technical parameters:

Technical parameters MINGTAI LED720 MINGTAI LED520
Illuminance (lux) 160,000 120,000
Color Temperature (Kelvin) 4,300 4,300
Adjustable Color Temperature (Kelvin) (Optional) 3600-5600 3600-5600
Color Rendering Index (CRI) 96 96
Red Color Index (R9) 96 96
Light brightness control standard standard
Brightness control range 10—100% 10—100%
Temp rise (Surgeon head) (℃) 0.5 0.5
Temp rise (surgical field) (℃) 2 2
Effective Focusing Depth (cm) 60-150 60-150
Total Irradiance Ee (W/m2) 530 470
Radiant Power Ee/ Ec (mW/m2lux) 3.3 3.3
Lighting Spot Size (mm) 100-260 100-260
Bulb Type LED LED
Average Bulb Life (hours) 60,000 60,000
Bulb Quantity (main bulb+ auxiliary bulb) 140LEDS+420LEDS 84LEDS+252EDS
Depth of illumination L1+L2 (cm) 130 130
Power Consumption (W) 70 50
Height adjustment (cm) 118 118
Power Input 100-240VAC, 50/60Hz 100-240VAC, 50/60Hz


Product feature:



1. Petal model series light use advanced technology, with unique performance and advantages, which can meet the various surgical lighting



2. Unique lighting depth adjustable technology

Superficial tissue may obscure part of the illumination light when deep surgery, thus forming partical shade in the surgical field. Petal model series set to deep illumination mode, the system automatically turns off the invalid LED light source and selectively automatic enhance effective led light brightness to repair shadow





3. Long life lighting source

The lifetime of LED light source is 40 times than halogen bulb, reaching 60,000H, and each led bulb can be changed separately



4. Perfect cold light effect

LED don’t engender infrared ray, temperature rising in doctor’s head is less than 0.5℃, and low temperature rising in the surgical field can prevent body fluid’s losing during operation





5. Petal model series shadowless light appearance is open type design, which meet the aerodynamic principles, and it also can reduce the light head area which will block the purify air flow, so as to minimize the light air turbulence which will affect the purification effect



6. Optional adjustable color temperature technology

Petal model series (adjustable color temperature) surgery light consists of 4 different LED bulb, by adjusting the brightness of different colors, you can adjust the color temperature between 3000-6000K to meet the doctor habits. The color temperature also can be adjusted according to the blood support quantity to distinguish different tissues
