Metal tube tube CNC plasma cutting machine

Metal tube tube CNC plasma cutting machine is mainly used for cutting all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel, titanium sheet. stainless steel, iron etc. Applies in cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery,steel structure, shipbuilding and other industries.

Features of Metal tube tube CNC plasma cutting machine
1. This plasma cutting machine is used for metal square & round tube tube cutting. Good man-machine control panel makes operation more convenient and simple, can cut kinds of complex shapes' metal sheet.
2. The liner rails are imported with high precision, good guide. Rack gear is manufactured by professional factory. Its surface is carbonizing and quenching.
3. LCD operate panel can prompt kinds of operating ways, so operator can operate it easily after simple training.
4. Driving system is LEADSHINE or YASKAWA servo drive (Dual Driver makes it fast), you can choose China LEADSHINE , Japan Panasonic /YASKAWA servo motor or stepper motor to make sure whole machine can run with smoothly in a wider speed range, short acceleration time
5. Torch height controller can adjust the best cutting distance automatically, to confirm working piece high precision cutting.

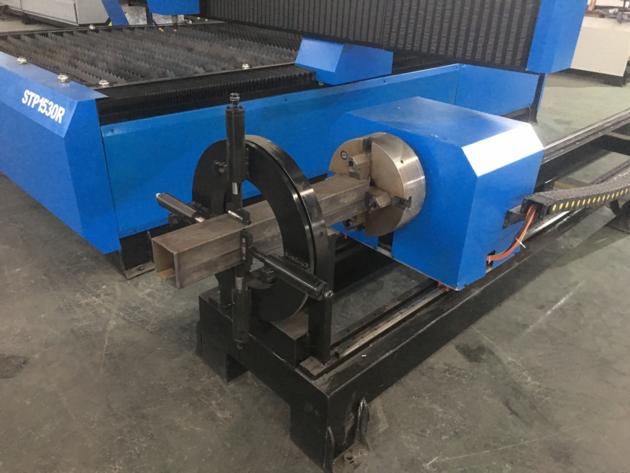

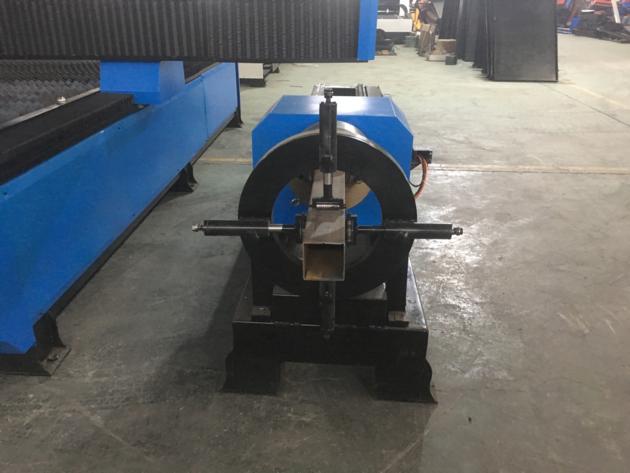

6. Automatic plasma machine Chuck rotary makes work efficiency.
FAQ:
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your plasma cutting machines running in order to keep your business running.
2. Q: I am not sure if this plasma cutting machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.
3. Q: Are you factory or trading company?
A: We are factory, which manufactures CNC cutting machines , with 10 years experience in CNC machine’s industry.
4. Q:What other things also need after we bought your machines?
A:With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
5. Q:How can I do if the machine goes wrong?
A:If confronted with such problems, online service is offered, you could contact our sales. Also, we offer engineer delivery service .Please contact us ASAP and don’t try fix the machine by yourself or someone else. We will response within 12 hours as quick as we can to solve it for you.

Parameters of Metal tube tube CNC plasma cutting machine
No. Description RB6020T
(Length is 6000mm,Diameter is 100-400mm)
1 Working Size 200(Diameter)*6000mm(Length)
2 Z Axis Clearance 150mm
(200 And Higher Is Optional)
3 Table Type Chuck rotary (Automatic + Dual Driver)
4 Transmission System Rack Pinion And Hiwin Linear Rails For X/Y
5 Driving System Leadshine Servo motor ( YASKAWA / PANASONIC is optional, also according to your needs and budget.)
6 Max. Cutting Speed 12000mm/Min(different configuration and different material and thickness speed is different)
7 Max. Travelling Speed 30000mm/Min(different configuration speed is different)
8 Working Voltage 380V/3ph(220V/3ph is optional)
9 Plasma Generator Huayuan China and USA power as your requirements
10 Arc Mode FANGLING
11 Output Current 63/100/120A/160A/200A China
(45/65/85/105/125/200A USA)
12 Max. Cutting Thickness 6/15/18/20/30mm
(This is approximate, It also according to power and kinds metal)
13 Operating System JiaoDa fangling FX430A controller
(Professional for tube cutting)
14 Working Material Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal square tube/Circle tube
