SP(0.2-2.0) metal slitting line machine-shsinopower.com
Coil thickness: 0.2-2.0mm
Coil width:400-1600mm
Productin speed:20-120m/min
Pipe material: HR, CR, PPGI, GI,AL,CU,etc

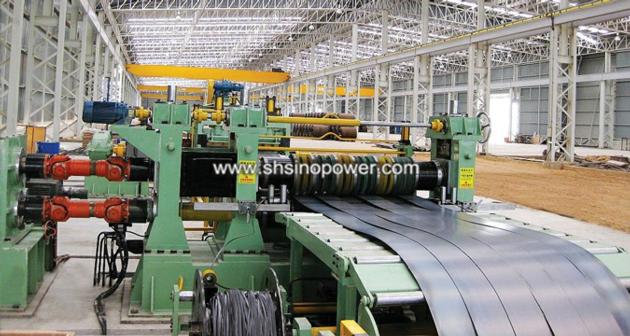

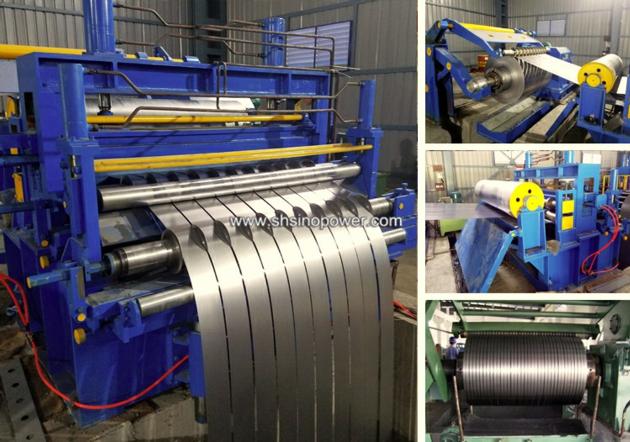

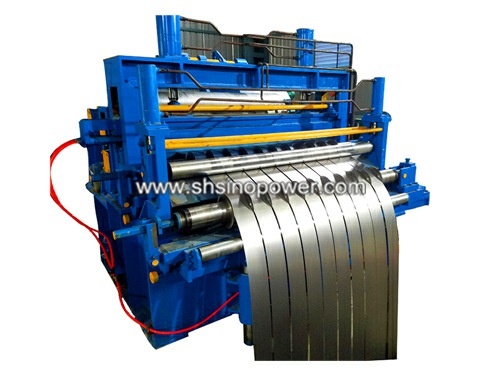

SP(0.2-2.0) Series Steel slitting line is applicable to coils of various specifications. It is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1. Technical Parameters of metal slitting line
Model Thickness Coil Width Coil Weight Number

of Strip Line Speed Coil Material
mm mm tons pcs m/min
SP(0.2-2) 0.3-2.0 400-1600 ≤20 8~20 0~150 δs≤230N/2,
SP(0.3-3) 0.3-3.0 400-1600 ≤20 8~20 0~120
SP(1-6) 1-6 500-2200 ≤25 5~15 0-80
SP(1-8) 2-8 500-2200 ≤25 5~12 0-60
SP(2-10) 2-10 500-2200 ≤35 3~10 0-60
SP(2-12) 2-12 500-2200 ≤35 3~10 0-40
SP(3-16) 3-16 500-2300 ≤35 2~8 0-40
SP(5-20) 5-20 500-2300 ≤35 2~8 0-20
2. Process Flow of slitting line machine

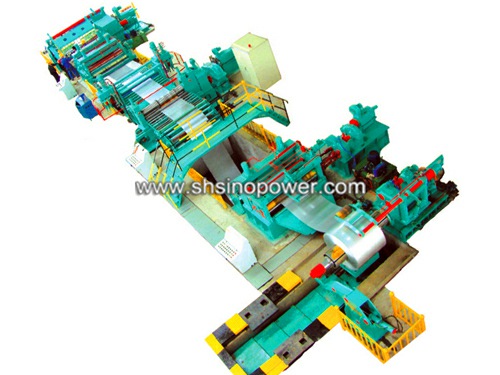

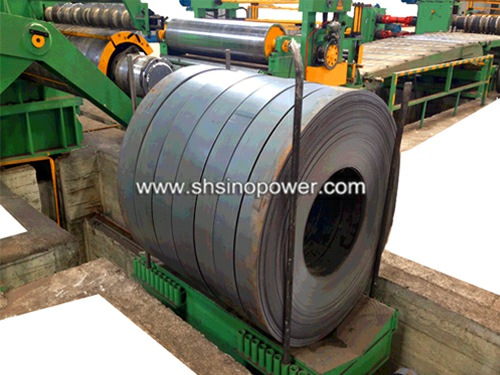

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control
