Metal Wire Gauze Structured Packing - a Quality Structured Packing

Metal Wire Gauze Structured Packing with High Separation Rate

There is a piece of metal wire gauze structured packing set on the ground.
MWGSP-01: Metal wire gauze structured packing is a universal type of packing composed by several mesh plate corrugated sheets.
Metal wire gauze structured packing is an universal type of packing composed by several mesh plate corrugated sheets which are vertical arranged in disks. Instead of being welded, metal wire gauze structured packings are fixed by being nailed or being ringed to adhere to the walls. Its structure can not only change the distribution of liquid, but also increase the transfer efficiency.

The key advantage of wire gauze structured packing is the high separation efficiency even at very small liquid loads along with its low pressure drop and small liquid hold-up, making it very suitable for distillation of thermally sensitive products.

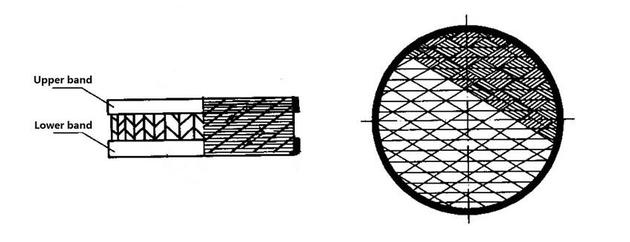

This is the structural diagram of metal wire gauze structured packing.
MWGSP-02: Metal wire gauze structured packing has high separation rate.
Specification - metal wire gauze structured packing
Model Theoretical plate number (1/m) Specific surface area (m2/m3) Void volume (m3/m3) Pressure drop (Pa/m) Fluid load m3/(m2·h) Biggest F factor (Pa0.5)
MWGSPS-1 0.3 - 1 125 0.987 140 0.5 - 100 3.5
MWGSPS-2 1 - 1.5 125 0,987 200 0.5 - 100 3
MWGSPS-3 1.6 - 2 250 0.975 180 0.5 - 100 3.1
MWGSPS-4 2 - 3 250 0.957 230 0.5 - 100 2.6
MWGSPS-5 2.3 - 3 350 0.965 220 0.5 - 80 2.3
MWGSPS-6 3 - 4 350 0.965 280 0.5 - 80 2.2
MWGSPS-7 3 - 4 500 0.957 250 0.5 - 60 2.3
MWGSPS-8 4 - 5 500 0.957 300 0.5 - 60 2
Features
Metal wire gauze structured packing is a type of structured packing which has great flux, high separation rate, low resistance, low pressure drop, low cost and good anti-plugging performance.

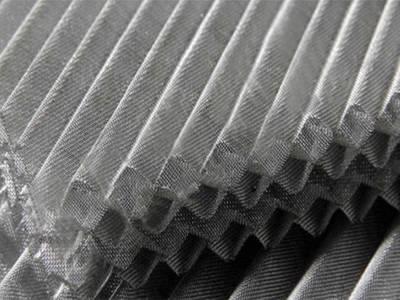

It shows the details of the wire gauze of metal wire gauze structured packing.

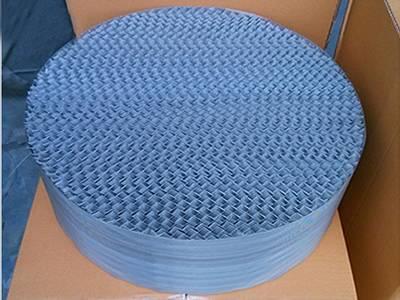

MWGSP-03: Metal wire gauze structured packing has good anti-plugging performance.A piece of metal wire gauze structured packing is placed on the carton box.
MWGSP-04: Metal wire gauze structured packing is usually packed in carton boxes.
Application
Metal wire gauze structured packing has a wide application in the purification, extraction, distillation, cooling and many other possess in the chemical, petrochemical, metallurgic, pharmaceutical and light industry, etc.

Package

Banded with stainless steel belts.
Packed with carton boxes & wooden boxes.
