Metal Perforated Plate Corrugated Packing with Long Service Life

Metal Perforated Plate Corrugated Packing for separation treatment

Metal perforated plate corrugated packing is a kind of structured packing which has advantages of large number of theoretical plates, high flux, low pressure drop and low load. It is made of arranged web pieces pressed into corrugation whose angles are 30 or 45 degrees and two adjacent pieces are of opposite directions.When filled into the packed tower, two trays of metal perforated plate corrugated packings are set in 90 degrees staggered arrangement.

Metal perforated plate corrugated packing is generally used in normal pressure distillation, vacuum distillation and absorption processes of matters which are thermal sensitive or hard to separate.

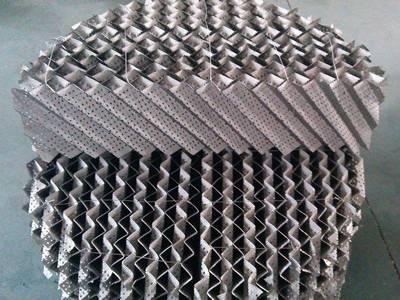

There is a piece of metal perforated plate corrugated packing placed on the ground.

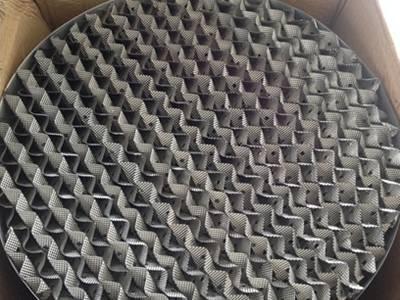

MPPCP-01: Metal perforated plate corrugated packing is a kind of structured packing for separation processing.Metal perforated plate corrugated packing is set on a carton box.
MPPCP-02: Metal perforated plate corrugated packing is often packed in carton or wooden boxes.
Specification - metal perforated plate corrugated packing
Model Theoretical plate number (1/m) Specific surface area (m2/m3) Void volume (m3/m3) Pressure drop (Pa/m) Fluid load m3/(m2·h) Biggest F factor (Pa0.5)
MPPCPS-1 2 - 3 250 0.97 220 0.2 - 40 3
MPPCPS-2 2.5 - 3.5 250 0.97 280 0.2 - 40 2.6
MPPCPS-3 2.5 - 3.5 350 0.958 300 0.2 - 30 2.5
MPPCPS-4 3 - 4 350 0.958 380 0.2 - 30 2.2
MPPCPS-5 4 - 5 500 0.94 400 0.2 - 20 2.2
MPPCPS-6 4.5 - 5.5 500 0.94 460 0.2 - 20 2
MPPCPS-7 6 - 7 700 0.916 500 0.2 - 20 2
MPPCPS-8 6.5 - 8 700 0.916 550 0.2 - 20 1.8
MPPCPS-9 8 - 9 1000 0.88 700 0.2 - 10 1.4
MPPCPS-10 9 - 10 1000 0.88 800 0.2 - 10 1.2
Wire diameter: greater than or equal to 0.125 mm.
Mesh: greater than or equal to 60.
Mass per unit area (of wire mesh): greater than or equal to 0.60 kg/m2.
Features

A type of structured packing.
Corrugated metal sheet with helical teeth.
Must equipped with other tower internals, such as trays, distributors, demisters, etc.
Maintain higher operating temperatures.
High purifying efficiency & low pressure loss.
High flux.
Low liquid holdup.
Long service life.

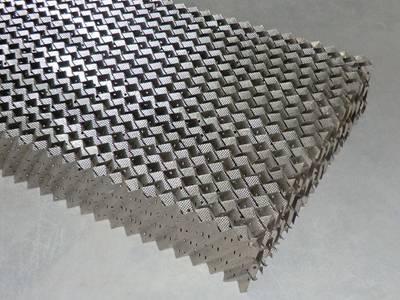

This is a piece of metal perforated plate corrugated packing in rectangle shape.
MPPCP-03: Metal perforated plate corrugated packing has high flux and a long service life.A half piece of metal perforated plate corrugated packing is placed on a integral one.
MPPCP-04: Metal perforated plate corrugated packing is suitable for separation processing.
Application
Metal perforated plate corrugated packing is widely used in industry of fine chemicals, perfume and so forth. It is especially suitable for separation of isomers, distillation for the hard separation system, the thermosensitive system and high purity products.

Package

Covered with wall flow loops.
Packed in carton or wooden boxes.
