Metal Bellow Flange End Type Pipe Flexible Joint
| Price: | US$ 5~2000 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | EH-600M | Brand Name: | Ehase-Flex |
|---|
| Certification: | ISO FM |
|---|---|
| Specification: |
Specification Nominal Bore Total Length Bellows O.D. Max Offset Rated Working Pressure mm ins mm mm mm kg/cm2 50 2 200 73.6 28 10 50 2 300 33 16 65 2 1/2 200 88 24 10 65 2 1/2 300 31 16 80 3 200 102 20 10 80 3 300 24 16 100 4 200 128 18 10 100 4 300 22 16 125 5 200 155 23 10 125 5 300 24 16 150 6 280 185 20 10 150 6 300 22 16 200 8 280 235 20 10 200 8 300 16 250 10 300 286 17 10 250 10 16 300 12 300 340 15 10 300 12 16 *Specifications stated above are standard. We can also design and manufacture according to customer's requriement *Flange Standard: JIS, ANSI, DIN, B.S.,JB,etc |
Packaging & Delivery
| Packaging: | Carton Box, Pallet, or Plywood Case |
|---|---|
| Delivery/Lead Time: | 20 Working Days |
| Production Capacity: | 80000 Piece/Pieces per Year |
Product Description
Quick Details Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-Flex
Model Number: EH-600/600M
Type: Flange Connection
Material: Stainless Steel
Technics: Welding
Connection: Flange
Shape: Equal
Head Code: Round
Product Name: Flexible Joint
Application: Absorb the vibration and reduce the noise
Nominal Bore: DN50-DN300; 2"-12"
Length: 200mm/300mm or customization
Rated Working Pressure: 10 Bar;16Bar;25 Bar
Temperature Rating: Max 1000 ℃
Flange Standard: JIS,ANSI,DIN,B.S,JB
OEM/ODM: Allowed
Standard: EJMA
Certificate: FM;ISO
Supply Ability
Supply Ability: 80000 Piece/Pieces per Year H.S Code:7307.29
Packaging & Delivery
Packaging Details
Carton Box, Pallet, or Plywood Case
No Unacceptable Packaging Material or Bamboo Products been Used as Packing
Port
Shanghai,Ningbo or Any port in china
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(day) 15 To be negotiated
Product Description
FM Certificated Braided Stainless Steel Flexible Joint
Application:
Used for pump to link with tube, absorbing vibration and reducing the noise.
Applied for larger offest and where the installing space is limited.

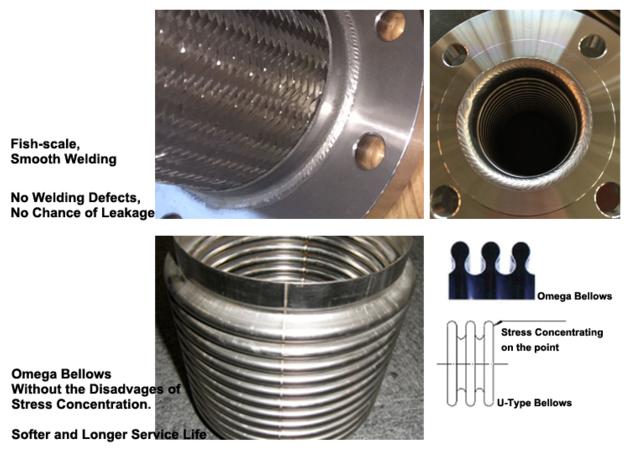

Features
1. Excellent Welding Technology, like a fish swimming in water.
2. Omega Bellows, More flexible and longer service life.

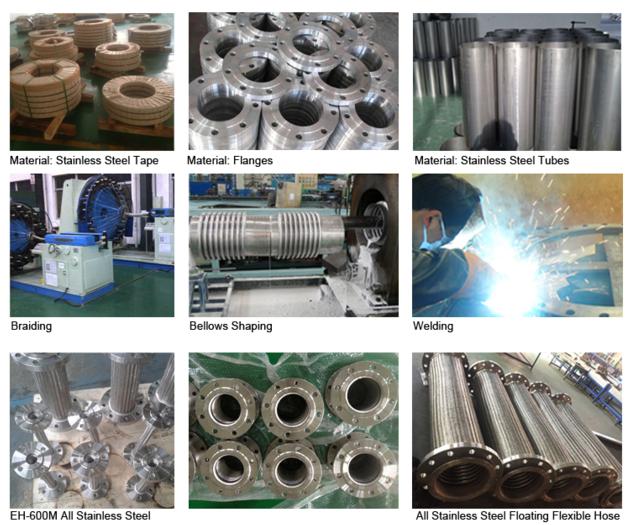

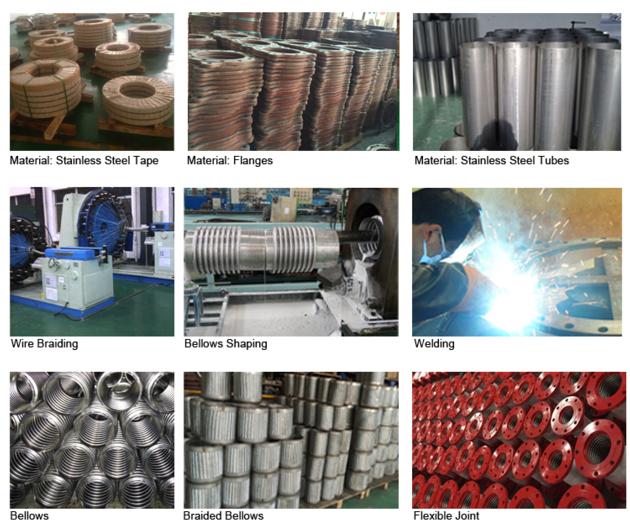

Production Process
Production Capacity
Flexible Sprinkler Hoses: 350,000pcs per Month
Flexible Joints/ Expansion Joints: 80,000pcs Annual
Gas Connector: 300,000pcs Per Month
Water Connectors: 5,000,000m Annual
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
|
