Meniscus Cylindrical lens
| Price: | US$ 1.00 / Piece |
|---|---|
| Minimum Order: | |
| Payment Terms: | T/T, L/C, Net pay |
| Port of Export: |
Product Details
| Model No.: | Brand Name: | BRD Optical |
|---|
| Certification: | |
|---|---|
| Specification: |
Material Optical glass/ Fused silica/ sapphire etc.
Dimension 2mm~300mm Dimension tolerance «0.05mm~«0.1mm Centre Thickness 2mm~20mm Surface quality 60/40， 40/20， 20/10 Surface accuracy ，532nm Clear Aperture >85% dig diameter Centration <3arc min~ 30arc sec Coating As per customer’s request |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description

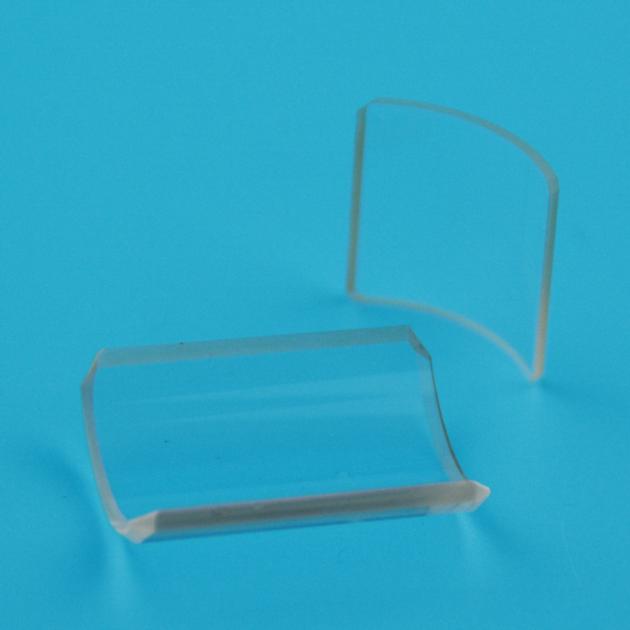

Meniscus Cylindrical lens
Cylindrical lens
Optical Components.
PARAMETER:
Meniscus Cylindrical Lens can increase the NA of the system while only adding slightly to the total spherical aberrations. The Negative Meniscus Lens is used to increase the focal length of another lens while maintaining the angular resolution of the optical assembly. This lens shape is best used when one conjugate is relatively far from the lens.
Specification
Material Optical glass/ Fused silica/ sapphire etc.
Dimension 2mm~300mm
Dimension tolerance «0.05mm~«0.1mm
Centre Thickness 2mm~20mm
Surface quality 60/40， 40/20， 20/10
Surface accuracy ，532nm
Clear Aperture >85% dig diameter
Centration <3arc min~ 30arc sec
Coating As per customer’s request
|
