Medium voltage CU/XLPE/PVC copper XLPE insulated armoured power cable
| Price: | US$ 1~60 |
|---|---|
| Minimum Order: | 100meters |
| Payment Terms: | L/C, T/T |
| Port of Export: | Tianjin, Qingdao, or other port as request. |
Product Details
| Model No.: | CU/XLPE/PVC N2XSY N2XSRY N2XSEBY N2XSERGbY | Brand Name: | HAOHUA |
|---|
| Certification: | ISO9001, CQC, CCC |
|---|---|
| Specification: |
Conductor material: Copper
Conductor identification: Colored tapes under screen, Conductor shape: Circular Conductor flexibility: Stranded class 2 Material of the inner semi-conductor: Semi-conducting compound Insulation: XLPE (Chemical) Material of the external semi-conduct: Semi-conducting compound Metallic Screen: Bare Copper Tape Inner sheath: PVC Armor type: Galvanized steel wires Outer sheath: PVC Color: Red or Black Lead free: Yes Minimum installation temperature: 0 ®C Maximum installation temperature: 60 ®C Installation type: Direct burial or in ducts Minimum operating temperature: -15 ®C Maximum operating temperature: 90 ®C Short-circuit max. conductor temperature: 250 ®C Flame retardant: Yes – IEC 60332-1 Internal bending radius (min.): 12 x Overall diameter |
Packaging & Delivery

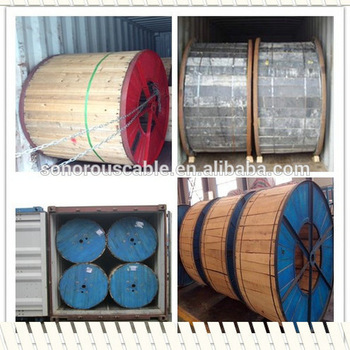

| Packaging: | steel or wooden drum, or as request |
|---|---|
| Delivery/Lead Time: | 7~10day |
| Production Capacity: | 5000kilometers per month |
Product Description

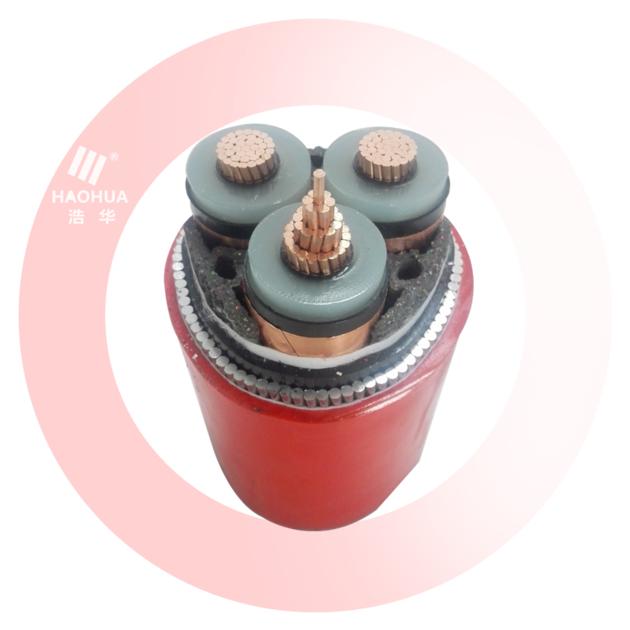

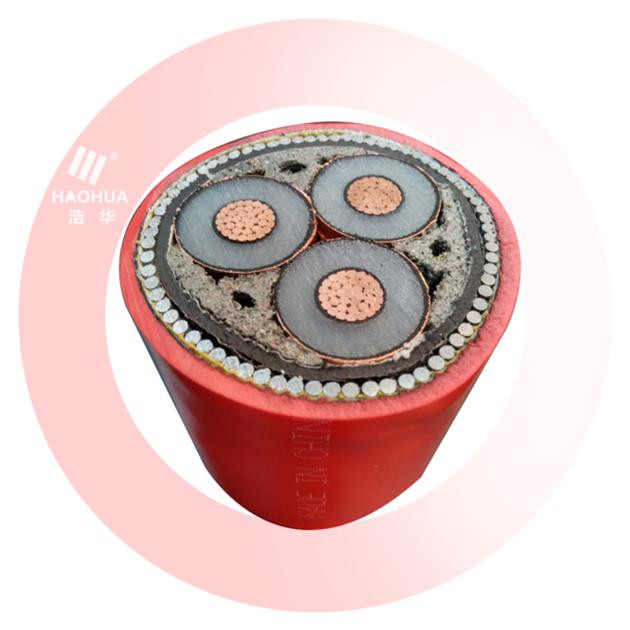

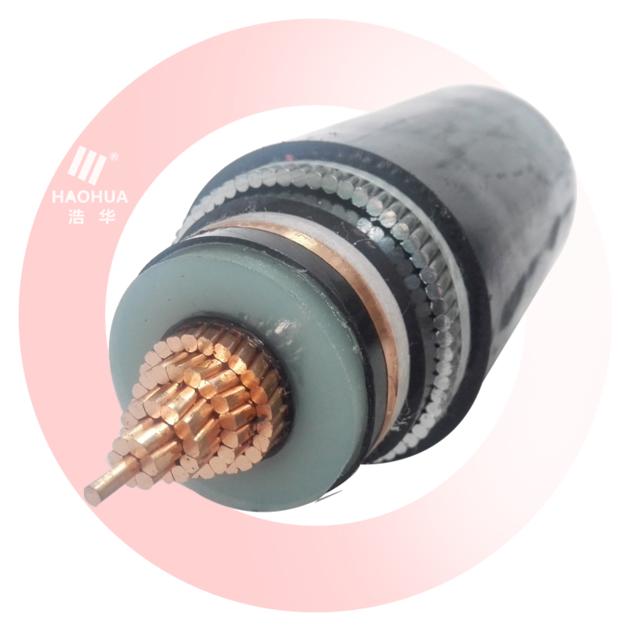

Medium voltage CU/XLPE/PVC copper XLPE insulated armoured power cable
Conductor Type: Solid or strand
Number of Cores: 1 core or 3 core
Cross section: 35~630mm2 are all available
Screen: copper tape screening or copper wire screening
Flame retardant: optional
Heat resistant: optional
Advantages: manufacturer,fast delivery,high quality good service
Other service: OEM/ODM
Application:
Cu/XLPE/CTS/PVC/SWA/PVC medium voltage power cable can be used for power networks, in fixed installation outdoors in cable ducts or directly in the ground. The cable consists of a Class 2 stranded copper conductor, semi conductive conductor screen, XLPE Insulated, semi conductive insulation screen, plain copper tape screen for each core, PVC bedding, galvanized Steel Wire Armor and PVC outer sheath, flame retardant to IEC 60332-1.
Standard:
BS6622 & IEC60502
|
