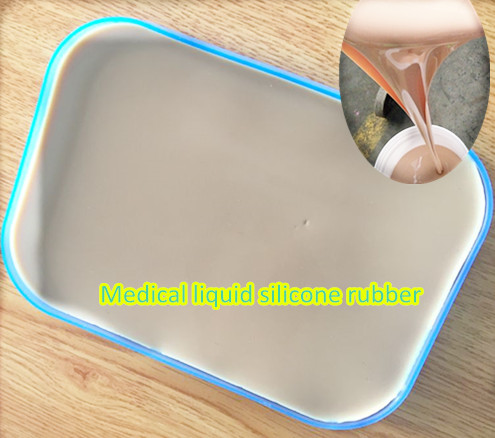

Medical Grade Silicone for Silicon Suture Pad Making

Description of Medical Grade Silicone for Silicon Suture Pad Making

Liquid RTV Silicone for Medical Training Aid Making, a kind of platinum cure silicone rubber, has good performance, chemical stability with features of waterproof, corrupt resistance, physiological inert, non-toxic, tasterlessness, aging-resistance, easy pouring, easy operation, and completely vulcanization. Then the application would be used to make the silicon suture pad,light skin suturing model,silicon suturing arm model,Skin Wound Suture Practice Pad Injection Model Pad ect.


Characteritics of Medical Grade Silicone for Silicon Suture Pad Making
1. adjustable color and hardnesss, can make the fake human body parts almost like the real one
2. platinum cure with food grade certificate, non-toxic, and no smell, safe to skin
3. excellent resistance to high temperature, the temperature can reach -60~250C degrees
4. good fluidity, easy perfusion
5. can be cured at room temperature , also can be heat cured, easy to operate.

Datasheet of Medical Grade Silicone for Silicon Suture Pad Making

Model NO· XB-805# XB-810 #
Mixing Ratio (by weight) 1:1 1:1
Appearance/Color Translucent Translucent
Hardness (Shore A) 5¯2 10¯2
Mixed viscosity(mPa·s) 4000¯500 1300¯500
Working Time(at 23℃/75℉, MINS) 30~40 30~40
Curing Time(at 23℃/75℉, HRS) 3~5 3~5
Tensile strength, Mpa ≥2.2 ≥3.8
Tear strength, KN/m ≥12.5 ≥13.6
Shrinkage, % <0.1 <0.1
Elongation at break,% ≥500 ≥700



How to choose the proper hardness to make different parts:

To make the thin skin, the hardness is 20 to 25 Shore A
To make the breast, the hardness will be 5 Shore A
To make a complete finger, the hardness will be 8 to 10 Shore A. If just to make a layer of skin, the hardness should be 20 Shore A
To make the female sex toys, the silicone must be very soft. For example, the silicone bra needs silicone with 3 to 5 Shore A, 0 Shore A is required for especial
To make the silicone mask, the hardness is 40 Shore A
To make the human model, which is filler inside and silicone outside, the hardness of silicone on the surface is 3 to 5 Shore A.
To make the artificial limbs, the hardness will be 10 to 15 shore A

Remark: The specific hardness should be confirmed with the customer and then recommend the suitable hardness.
