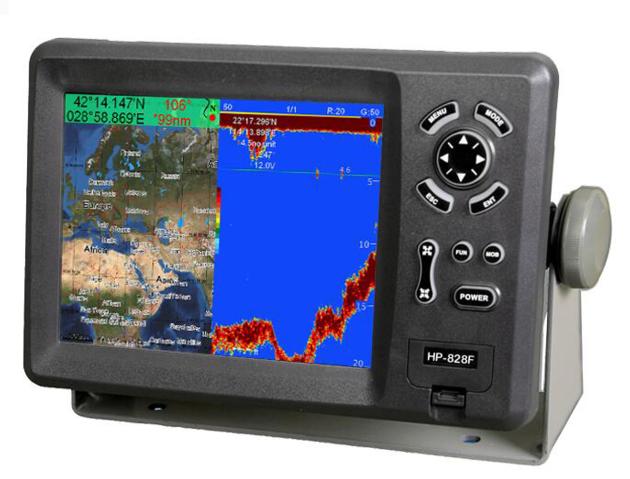

Matsutec HP-1228F marine GPS fishfinder

PLOTTER CHARACTERISTICS
1. Waypoints/Icons: 14,000 waypoints with name, symbol, 10 proximity waypoint.
2. Route Memory: waypoint up to 169 points each, plus MOB and Track Navigator or Goto Track modes
3. Tracks: 21,000 points automatic track log; 15 saved track (up to 2100 track points each) Let you retrace your path in both directions
4. Alarm: XTE, Anchor Drag, Arrival, Speed, Voltage, Proximity, Waypoint and Time, AIS alarm.
5. Palette
- Normal
- Daylight: Exposed to sunlight
- Night: In dark environment
- NOAA Paper chart color
6. Tides: Tide Data
7. Projection: Mercator projection
8. Position format: Lat/Lon
9. Base Map: Built-in ONWA K-Chart
10. External Map: SD cards slot for user settings
11. User data storage: Internal backup of user settings, or external SD-card
12. Plot Interval: 1s to 99h or 0.01nm to 9.99nm
13. Polotting scales: 0.01nm to 1,000nm
14. Nav Data Input/Output:
- Input:
$--BWC, $--BWR, $--DBT, $--DPT, $--GGA, $--GLL, $--HDG, $--HDM, $--HDT, $--MDA, $--MTW, $--RMA, $--RMB, $--RMC, $--TLL, $--TTM, $--VDR, $--VHW, $--VTG, $--WPL, $--ZDA
- Output:
$--AAM, $--APB, $--BOD, $--BWC, $--GGA, $--GLL, $--RMB, $--RMC, $--VTG, $--XTE, $--ZDA
- Output for autopilot:
$--AAM, $--APB, $--BOD, $--VTG, $--DBT, $--DPT
15. PERSPECTIVE VIEW: On/off


ECHO SOUNDER
Echo Color
8 colors (including background color) according to echo intensity. Monochrome display is also available. The background color is selectable from blue, light blue, white and black.
Basic Range
Meters: 10/20/40/80/150/200/300/500/1000
(for HP-628F, up to 600m)
Feet: 30/60/120/200/400/600/1000/1600/3000
( for HP-628F, up to 1500ft)

Fathoms: 5/10/20/40/80/100/150/250/500
(for HP-628F, up to 200fa)
Passi/Braza: 6/20/30/50/100/150/200/300/600
(for HP-628F, up to 300pB)
The basic ranges can be changed on the system menu.
Range Shift
Up to 1000 meters (3000 feet, 500 fathoms, 600 passi/braza)
Zoom Range
Times 2, 3, 4 and 5 ranges
Bottom Lock Expansion Range
5/10meters, 10/20feet, 2/5fathoms, 2/5passi/braza
Auto Mode
Automatic adjustment of range and gain
Display Mode
High Frequency (200K),Low Frequency (50K), Dual (200K and 50K 1/2display on each), Zoom (200K and 50K zoom) and A-scope Display
Zoom Display
Marker Zoom, Bottom Zoom and Bottom-lock Expansion
Display Advance Speed
Lines/TX: Freeze, 1/8, 1/4, 1/2, 1/1, 2/1
TX Frequency
Power Output
50 and 200kHz (alternately transmitted)
1)KP-628F: 300W 2)KP-828F/1228F: 600W
Pulse-length/TX rate


Interface Rejecter
Alarm
Display End Depth(m) 5, 10, 20, 40, 80, 150, 300, 600, 1000
Pulse-Length(ms) 0.15, 0.15, 0.15, 0.25, 0.4, 0.7, 1.5, 1.5, 2.7, 3.6
TX Rate(pulse/min) 750, 750, 750, 375, 187, 107, 50, 50, 30, 21

Rejects unwanted signals by comparing last and present echoes in strength
Fish and Bottom alarms, Temperature alarm (sensor required)

GPS Receiver Characteristics
1. Receiver: 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position
2. Acquisition times: Cold start: 27 seconds average
Warm start: 27 seconds average
Hot start: 1 second average
3. Update rate: 1/second, continuous
4. Accuracy: Position: <2.5 meters(95%) without S/A
Velocity: 0.1 meter/sec without S/A
Time: ¯100ns synchronized to GPS time
5. Dynamics: Altitude: 50,000m Max
Velocity: 500 m/s
6. Datum: Acceleration: 4g Max
7. Interface: WGS 84 & Others
NMEA 0183 Input, RS232output
8. Antenna: HA-017

AIS interface
Data input: NMEA0183, RS232
Baud rate: 38,400

Power Supply:
1) KP-628F: 10.5 to 35VDC, current drain 1.0A at 12V
2) KP-828F/1228F: 10.5 to 35VDC, current drain 2.5A at 12V

Physical
1. Size:
1) KP-628F: 224mm(H)*151mm(W)*89mm(D)
2) KP-828F: 290mm(H)*195.5mm(W)*99.5mm(D)
3) KP-1228F: 364mm(H)*268mm(W)*106mm(D)
2. Weight:
1) KP-628F: 0.9kg
2) KP-828F: 2.43kg
3) KP-1228F: 3.95kg
3. Display:
1) KP-628F: 5.6 inches Color TFT Display, 640*480 pixels
2) KP-828F: 8.0 inches Color TFT Display, 800*600 pixels
3) KP-1228F: 12.1 inches Color TFT Display, 800*600 pixels
4. Waterproofing: Display unit: IPX5;
Antenna unit: IPX6
3. Temperature range: -15®C to + 55®C (Display unit);
-25®C to + 70®C (Antenna unit)

EQUIPMENT LIST (Standard)
Display unit
Antenna unit with 10m cable
Transducer
Operator manual
Installation materials and standard spare parts
