Matsutec Color LCD display marine GPS fishfinder

Price:	US$ 410 / Set
Minimum Order:	1 set
Payment Terms:	TT in advance, Western Union, Paypal
Port of Export:	HK

Product Details

Model No.:	HP-628F	Brand Name:	Matsutec

Certification:
Specification:	SPECIFICATION PLOTTER CHARACTERISTICS 1. Waypoints/Icons: 14,000 waypoints with name, symbol, 10 proximity waypoint. 2. Route Memory: waypoint up to 169 points each, plus MOB and Track Navigator or Goto Track modes 3. Tracks: 21,000 points automatic track log; 15 saved track (up to 2100 track points each) Let you retrace your path in both directions 4. Alarm: XTE, Anchor Drag, Arrival, Speed, Voltage, Proximity, Waypoint and Time, AIS alarm. 5. Palette - Normal - Daylight: Exposed to sunlight - Night: In dark environment - NOAA Paper chart color 6. Tides: Tide Data 7. Projection: Mercator projection 8. Position format: Lat/Lon 9. Base Map: Built-in ONWA K-Chart 10. External Map: SD cards slot for user settings 11. User data storage: Internal backup of user settings, or external SD-card 12. Plot Interval: 1s to 99h or 0.01nm to 9.99nm 13. Polotting scales: 0.01nm to 1,000nm 14. Nav Data Input/Output: - Input: $--BWC, $--BWR, $--DBT, $--DPT, $--GGA, $--GLL, $--HDG, $--HDM, $--HDT, $--MDA, $--MTW, $--RMA, $--RMB, $--RMC, $--TLL, $--TTM, $--VDR, $--VHW, $--VTG, $--WPL, $--ZDA - Output: $--AAM, $--APB, $--BOD, $--BWC, $--GGA, $--GLL, $--RMB, $--RMC, $--VTG, $--XTE, $--ZDA - Output for autopilot: $--AAM, $--APB, $--BOD, $--VTG, $--DBT, $--DPT 15. PERSPECTIVE VIEW: On/off ECHO SOUNDER Echo Color 8 colors (including background color) according to echo intensity. Monochrome display is also available. The background color is selectable from blue, light blue, white and black. Basic Range Meters: 10/20/40/80/150/200/300/500/1000 (for HP-628F, up to 600m) Feet: 30/60/120/200/400/600/1000/1600/3000 ( for HP-628F, up to 1500ft) Fathoms: 5/10/20/40/80/100/150/250/500 (for HP-628F, up to 200fa) Passi/Braza: 6/20/30/50/100/150/200/300/600 (for HP-628F, up to 300pB) The basic ranges can be changed on the system menu. Range Shift Up to 1000 meters (3000 feet, 500 fathoms, 600 passi/braza) Zoom Range Times 2, 3, 4 and 5 ranges Bottom Lock Expansion Range 5/10meters, 10/20feet, 2/5fathoms, 2/5passi/braza Auto Mode Automatic adjustment of range and gain Display Mode High Frequency (200K),Low Frequency (50K), Dual (200K and 50K 1/2display on each), Zoom (200K and 50K zoom) and A-scope Display Zoom Display Marker Zoom, Bottom Zoom and Bottom-lock Expansion Display Advance Speed Lines/TX: Freeze, 1/8, 1/4, 1/2, 1/1, 2/1 TX Frequency Power Output 50 and 200kHz (alternately transmitted) 1)KP-628F: 300W 2)KP-828F/1228F: 600W Pulse-length/TX rate Interface Rejecter Alarm Display End Depth(m) 5, 10, 20, 40, 80, 150, 300, 600, 1000 Pulse-Length(ms) 0.15, 0.15, 0.15, 0.25, 0.4, 0.7, 1.5, 1.5, 2.7, 3.6 TX Rate(pulse/min) 750, 750, 750, 375, 187, 107, 50, 50, 30, 21 Rejects unwanted signals by comparing last and present echoes in strength Fish and Bottom alarms, Temperature alarm (sensor required) GPS Receiver Characteristics 1. Receiver: 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position 2. Acquisition times: Cold start: 27 seconds average Warm start: 27 seconds average Hot start: 1 second average 3. Update rate: 1/second, continuous 4. Accuracy: Position: <2.5 meters(95%) without S/A Velocity: 0.1 meter/sec without S/A Time: ¯100ns synchronized to GPS time 5. Dynamics: Altitude: 50,000m Max Velocity: 500 m/s 6. Datum: Acceleration: 4g Max 7. Interface: WGS 84 & Others NMEA 0183 Input, RS232output 8. Antenna: HA-017 AIS interface Data input: NMEA0183, RS232 Baud rate: 38,400 Power Supply: 1) KP-628F: 10.5 to 35VDC, current drain 1.0A at 12V 2) KP-828F/1228F: 10.5 to 35VDC, current drain 2.5A at 12V Physical 1. Size: 1) KP-628F: 224mm(H)151mm(W)89mm(D) 2) KP-828F: 290mm(H)195.5mm(W)99.5mm(D) 3) KP-1228F: 364mm(H)268mm(W)106mm(D) 2. Weight: 1) KP-628F: 0.9kg 2) KP-828F: 2.43kg 3) KP-1228F: 3.95kg 3. Display: 1) KP-628F: 5.6 inches Color TFT Display, 640480 pixels 2) KP-828F: 8.0 inches Color TFT Display, 800600 pixels 3) KP-1228F: 12.1 inches Color TFT Display, 800*600 pixels 4. Waterproofing: Display unit: IPX5; Antenna unit: IPX6 3. Temperature range: -15®C to + 55®C (Display unit); -25®C to + 70®C (Antenna unit)

Certification:

Specification:

SPECIFICATION
PLOTTER CHARACTERISTICS
1. Waypoints/Icons: 14,000 waypoints with name, symbol, 10 proximity waypoint.
2. Route Memory: waypoint up to 169 points each, plus MOB and Track Navigator or Goto Track modes
3. Tracks: 21,000 points automatic track log; 15 saved track (up to 2100 track points each) Let you retrace your path in both directions
4. Alarm: XTE, Anchor Drag, Arrival, Speed, Voltage, Proximity, Waypoint and Time, AIS alarm.
5. Palette
- Normal
- Daylight: Exposed to sunlight
- Night: In dark environment
- NOAA Paper chart color
6. Tides: Tide Data
7. Projection: Mercator projection
8. Position format: Lat/Lon
9. Base Map: Built-in ONWA K-Chart
10. External Map: SD cards slot for user settings
11. User data storage: Internal backup of user settings, or external SD-card
12. Plot Interval: 1s to 99h or 0.01nm to 9.99nm
13. Polotting scales: 0.01nm to 1,000nm
14. Nav Data Input/Output:
- Input:
$--BWC, $--BWR, $--DBT, $--DPT, $--GGA, $--GLL, $--HDG, $--HDM, $--HDT, $--MDA, $--MTW, $--RMA, $--RMB, $--RMC, $--TLL, $--TTM, $--VDR, $--VHW, $--VTG, $--WPL, $--ZDA
- Output:
$--AAM, $--APB, $--BOD, $--BWC, $--GGA, $--GLL, $--RMB, $--RMC, $--VTG, $--XTE, $--ZDA
- Output for autopilot:
$--AAM, $--APB, $--BOD, $--VTG, $--DBT, $--DPT
15. PERSPECTIVE VIEW: On/off

ECHO SOUNDER
Echo Color
8 colors (including background color) according to echo intensity. Monochrome display is also available. The background color is selectable from blue, light blue, white and black.
Basic Range
Meters: 10/20/40/80/150/200/300/500/1000
(for HP-628F, up to 600m)
Feet: 30/60/120/200/400/600/1000/1600/3000
( for HP-628F, up to 1500ft)

Fathoms: 5/10/20/40/80/100/150/250/500
(for HP-628F, up to 200fa)
Passi/Braza: 6/20/30/50/100/150/200/300/600
(for HP-628F, up to 300pB)
The basic ranges can be changed on the system menu.
Range Shift
Up to 1000 meters (3000 feet, 500 fathoms, 600 passi/braza)
Zoom Range
Times 2, 3, 4 and 5 ranges
Bottom Lock Expansion Range
5/10meters, 10/20feet, 2/5fathoms, 2/5passi/braza
Auto Mode
Automatic adjustment of range and gain
Display Mode
High Frequency (200K),Low Frequency (50K), Dual (200K and 50K 1/2display on each), Zoom (200K and 50K zoom) and A-scope Display
Zoom Display
Marker Zoom, Bottom Zoom and Bottom-lock Expansion
Display Advance Speed
Lines/TX: Freeze, 1/8, 1/4, 1/2, 1/1, 2/1
TX Frequency
Power Output
50 and 200kHz (alternately transmitted)
1)KP-628F: 300W 2)KP-828F/1228F: 600W
Pulse-length/TX rate

Interface Rejecter
Alarm
Display End Depth(m) 5, 10, 20, 40, 80, 150, 300, 600, 1000
Pulse-Length(ms) 0.15, 0.15, 0.15, 0.25, 0.4, 0.7, 1.5, 1.5, 2.7, 3.6
TX Rate(pulse/min) 750, 750, 750, 375, 187, 107, 50, 50, 30, 21

Rejects unwanted signals by comparing last and present echoes in strength
Fish and Bottom alarms, Temperature alarm (sensor required)

GPS Receiver Characteristics
1. Receiver: 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position
2. Acquisition times: Cold start: 27 seconds average
Warm start: 27 seconds average
Hot start: 1 second average
3. Update rate: 1/second, continuous
4. Accuracy: Position: <2.5 meters(95%) without S/A
Velocity: 0.1 meter/sec without S/A
Time: ¯100ns synchronized to GPS time
5. Dynamics: Altitude: 50,000m Max
Velocity: 500 m/s
6. Datum: Acceleration: 4g Max
7. Interface: WGS 84 & Others
NMEA 0183 Input, RS232output
8. Antenna: HA-017

AIS interface
Data input: NMEA0183, RS232
Baud rate: 38,400

Power Supply:
1) KP-628F: 10.5 to 35VDC, current drain 1.0A at 12V
2) KP-828F/1228F: 10.5 to 35VDC, current drain 2.5A at 12V

Physical
1. Size:
1) KP-628F: 224mm(H)*151mm(W)*89mm(D)
2) KP-828F: 290mm(H)*195.5mm(W)*99.5mm(D)
3) KP-1228F: 364mm(H)*268mm(W)*106mm(D)
2. Weight:
1) KP-628F: 0.9kg
2) KP-828F: 2.43kg
3) KP-1228F: 3.95kg
3. Display:
1) KP-628F: 5.6 inches Color TFT Display, 640*480 pixels
2) KP-828F: 8.0 inches Color TFT Display, 800*600 pixels
3) KP-1228F: 12.1 inches Color TFT Display, 800*600 pixels
4. Waterproofing: Display unit: IPX5;
Antenna unit: IPX6
3. Temperature range: -15®C to + 55®C (Display unit);
-25®C to + 70®C (Antenna unit)

Packaging & Delivery

Packaging:	carton
Delivery/Lead Time:	1-2 days
Production Capacity:	500sets per month

Product Description

Matsutec
MODEL: KP-628F KP-828F KP-1228F

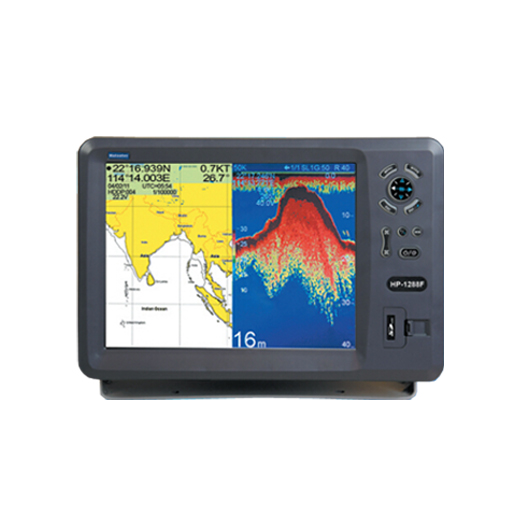

COLOR LCD GPS Plotter combo with Fish finder

FEATURE:
1 High Resolution
1) KP-628F: 5.6 inches Color TFT Display, 640*640 pixels

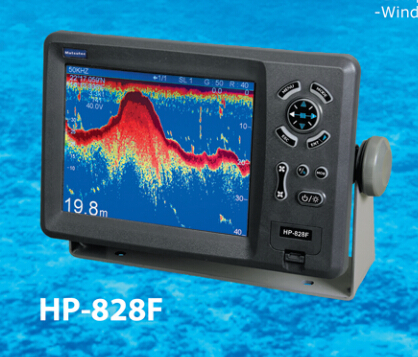

2) KP-828F: 8 inches Color TFT Display, 800*600 pixels
3) KP-1228F: 12 inches Color TFT Display, 800*600 pixels

2. 8 Color or 8 Level Amber Presentation

3. 50/200 KHz Transceivers, Output Power:
1) KP-628F 300 Watt
2) KP-828F 600 Watt
3) KP-1228F 600 Watt

4. Blue, Light Blue, or Black Background Color

5. 8 Range Scales, from 0-15 to 0-1000 Feet
1) HP-628F from 0-10m to 0-600m
(Max: 3000ft, 500f, 600pB)
2) HP-828F from 0-10m to 0-1000m
(Max: 3000ft, 500f, 600pB)
3) HP-1228F from 0-10m to 0-1000m
(Max: 3000ft, 500f, 600pB)

6. Range Offset to 0-100 meters

7. Automatic Range and Grain Selection Mode

8. A-Scope Display for Rapid Fish ID and Detection

9. Multiple Display Modes:
-Single or Dual Frequency
-Bottom Zoom
-Bottom Lock Expansion
-Maker Zoom
-Navigation Data Screen
-A-Scope

10. Digital Display of Speed, Depth, Water Temp and Position

11. Adjustable Bottom or Fish Alarm

12. Calibration in Feet, Fathoms or Meters

13. Built-in Picture Simulator

14. SD-cards slot for C-Map and user data

15. C-Map MAX and K-Chart Selectable

16. Tide table and Celestial

17. Versatile Display Mode Include
-Plotter Screen
-Plotter + Sounder
-Sounder
-Nav.Data
-Satellite Information
-AIS Display
-Compass Screen
-Wind Screen

18. GOTO track navigation

19. MAP orientation select

20. Proximity waypoints alarms

21. Perspective View

22. MAP Palette
-Normal
-Daylight – exposed to sunlight
-Night – in dark environment
-NOAA – paper chart colors

Matsutec Color LCD display marine GPS fishfinder
