Manufacturers in China Aluminum Oxide 92% Ceramic Part Brick

Price:	US$ 1514 / Ton
Minimum Order:	500kg
Payment Terms:	T/T
Port of Export:	Qingdao China

Product Details

Model No.:	1pc	Brand Name:	Zibo Qimingxing (Firstar)

Certification:	ISO etc.
Specification:	Product description : Category CH90 CH92 CH95 CHT95 CH99 CHZTA ZrO2 ZTC Density ≥3.50 ≥3.60 ≥3.65 ≥ 3.70 ≥ 3.83 ≥4.15 ≥5.9 ≥5.5 Al2O3 ≥90% ≥92% ≥95% ≥95% ≥99% ≥75% / / ZrO2+Y2O3 / / / / ≥22% ≥99.8% ≥99.5% Bending Strength MPa ≥180 ≥220 ≥250 ≥300 ≥330 ≥400 ≥800 ≥450 Compression strength MPa ≥970 ≥1050 ≥1300 ≥1600 ≥1800 ≥2000 / / Fracture Toughness MPam 1/2 ≥3.5 ≥3.7 ≥3.8 ≥4.0 ≥4.2 ≥5.0 ≥7.0 ≥5.5 HV Hardness N/mm2(MPa) ≥900 ≥950 ≥1000 ≥1100 ≥1200 ≥1350 ≥1100 ≥1000 Wear Volume ≤0.28 ≤0.25 ≤0.20 ≤0.15 ≤0.10 ≤0.05 ≤0.05 ≤0.15 Different kinds of products: Ceramic Mosaic Pieces, Ceramic Pipe Tiles, Ceramic Curved Tiled(with or without holes), Ceramic Tapered Tiles, Ceramic Cylinders, Stell Lined with Ceramic Tiles, Irregular Shaped Tile, Clipping Ceramic Tiles Interlocking Bricks. We have so many kinds of sizes. And we are also accept customized.

Certification:

ISO etc.

Specification:

Product description :
Category CH90 CH92 CH95 CHT95 CH99 CHZTA ZrO2 ZTC
Density ≥3.50 ≥3.60 ≥3.65 ≥ 3.70 ≥ 3.83 ≥4.15 ≥5.9 ≥5.5
Al2O3 ≥90% ≥92% ≥95% ≥95% ≥99% ≥75% / /
ZrO2+Y2O3
/ / / / ≥22% ≥99.8% ≥99.5%
Bending Strength MPa ≥180 ≥220 ≥250 ≥300 ≥330 ≥400 ≥800 ≥450
Compression strength MPa ≥970 ≥1050 ≥1300 ≥1600 ≥1800 ≥2000 / /
Fracture Toughness MPam 1/2 ≥3.5 ≥3.7 ≥3.8 ≥4.0 ≥4.2 ≥5.0 ≥7.0 ≥5.5
HV Hardness N/mm2(MPa) ≥900 ≥950 ≥1000 ≥1100 ≥1200 ≥1350 ≥1100 ≥1000
Wear Volume ≤0.28 ≤0.25 ≤0.20 ≤0.15 ≤0.10 ≤0.05 ≤0.05 ≤0.15

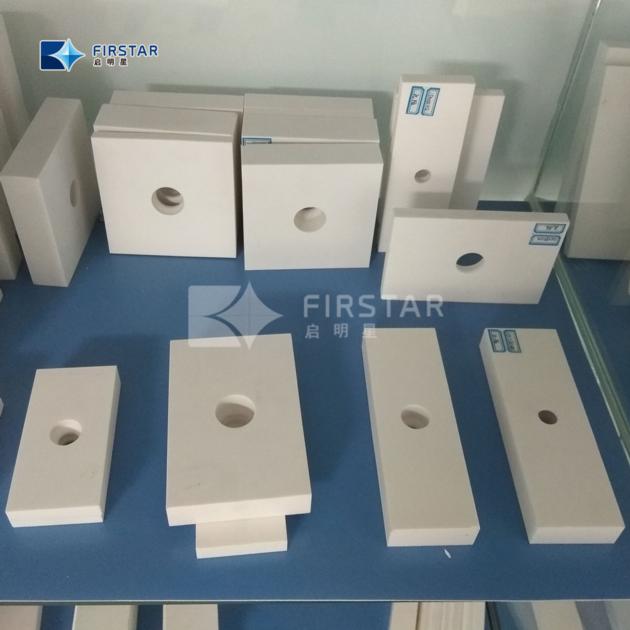

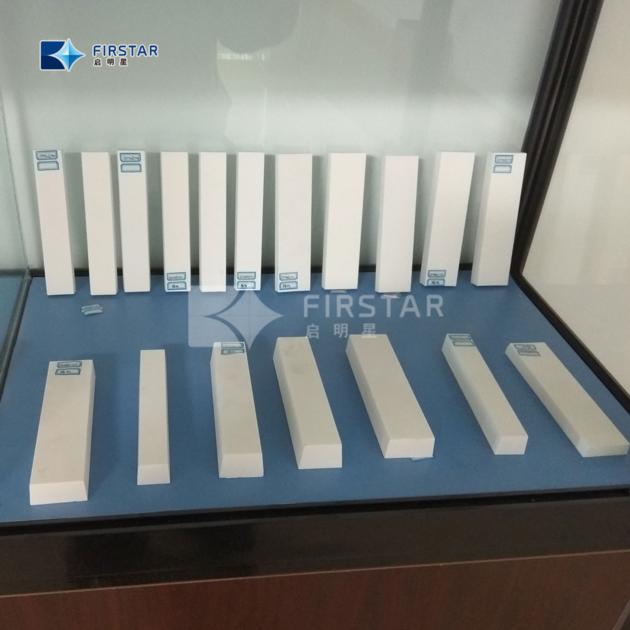

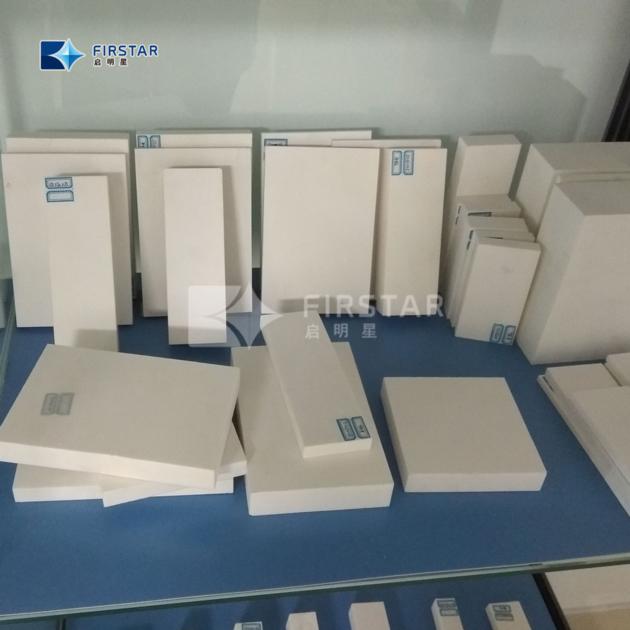

Different kinds of products: Ceramic Mosaic Pieces, Ceramic Pipe Tiles, Ceramic Curved Tiled(with or without holes), Ceramic Tapered Tiles, Ceramic Cylinders, Stell Lined with Ceramic Tiles, Irregular Shaped Tile, Clipping Ceramic Tiles Interlocking Bricks.

We have so many kinds of sizes. And we are also accept customized.

Packaging & Delivery

Packaging:	carton with pallet
Delivery/Lead Time:	10-30 days
Production Capacity:	17000 tons per year

Product Description

Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:
1.Alumina 92: most common wear product with great wear resistance
2.Alumina 95: increased wear performance
3.Alumina T95: premium alumina for best wear resistance
4.Zirconium toughened alumina(ZTA): increased strength and impact resistance
