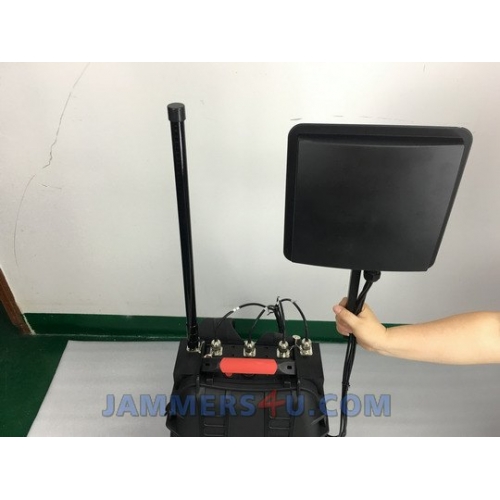

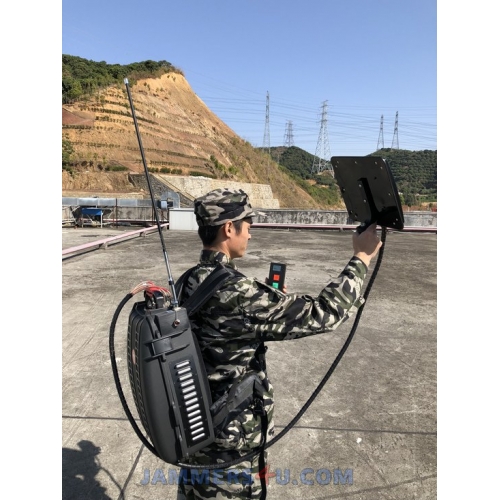

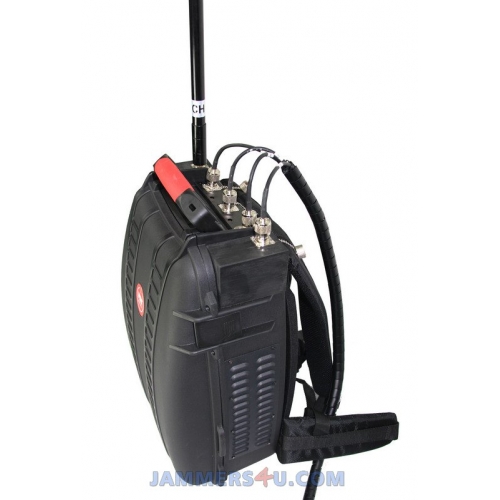

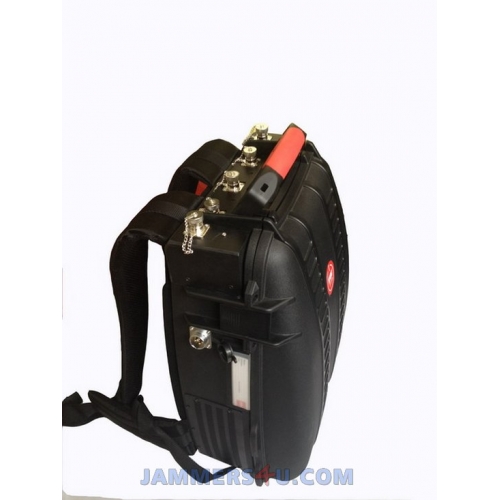

Manpack Drone UAV RC portable Jammer 102-110W up to 1500m

CT-4035-UAV Manpack Drone UAV Jammer up to 1500m

UAV Drone Public events protection model

5 Band Jammer, 4 Bands in One Directional Antenna
Built-in Battery that work 1-2h operating
Man-pack Raining proof case

1 Ver CT-4035-UAV 102W 5 bands ( 2W 5Ghz )
Jamming range: 500~1200 Meters
1. 2.4GHz 20W In Direction antenna (Horizontal Polarization)
2. 2.4GHz 20W In Direction antenna (Vertical Polarization)
3. 5.8GHz 2W in direction antenna (Horizontal Polarization)
4. GPS L1 40W In Direction antenna
5. 433Mhz 20W or 868-920Mhz 25W in One Omni Antenna
TOTAL : 102W

2 Ver CT-4035HL-UAV 110W 5 Bands ( 10W 5Ghz )
Jamming range: 500~1500 Meters
1. 2.4GHz 20W In Direction antenna (Horizontal Polarization)
2. 2.4GHz 20W In Direction antenna (Vertical Polarization)
3. 5.8GHz 10W in direction antenna (Horizontal Polarization)
4. GPS L1 40W In Direction antenna
5. 433Mhz 20W or 868-920Mhz 25W in One Omni Antenna
TOTAL : 110W
GO HOME Button in order option on drone jammers is our new implementation that greatly improves functionality and safety of operators as well as potential targets.
When drone is spotted and jammed, it will hoover for some time, and proceed to slow landing. That can cause dangerous situation if drone caries explosives, bio weapons or similar.
By activating GO HOME option, drone will get immediate internal command to go back to take-off site and land there.
This will give you a visual trace and possible drone operator capture while dangerous load is out off protected area.


Jamming range radius 500m to 1500m+
The jamming distance always varied depending on the signal strength and location
Cover All 100% Commercial Drones / UAVs
Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...
Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Battery +24V / 20AH LiFePO4 can support 1-2 hours operating
Support use while battery charging
Four Bands in One Directional Patch Panel Antennas
Dimension：390 x 340 x 130 mm (H × W × D)
Weight：14 Kg (approximately) just main unit
Operating temperature: -20℃ ~ +60℃

Package contents:
1pc Portable Jammer with integred battery
1pc AC 110 or 220V DC power supplier
1pc Antenna 500mm Omni antenna 433mhz
1pc Four Bands in One Directional Antenna

Additional antenna options:
4 pcs Omni Antennas 500mm long
5 pcs Mag antenna bases
1 pc Antennas Frame with 1.5m cables
5 pcs Directional External Patch Panel Antennas
1 pc DC 12V to AC 220V inverter 4000W to use on car/vehicle battery

1 Year warranty, Neutral packing, OEM Manufacturer :
R&R GROUP INTERNATIONAL
