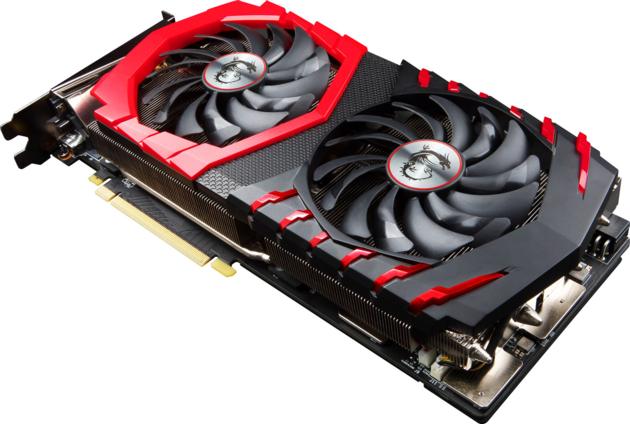

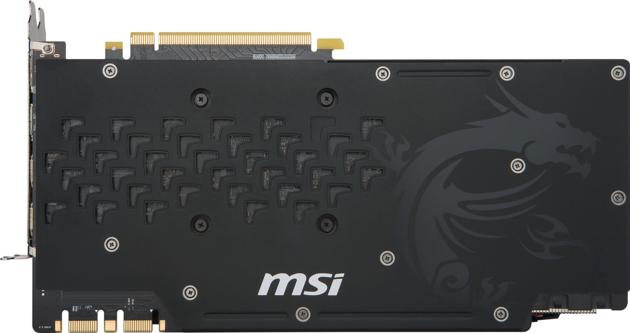

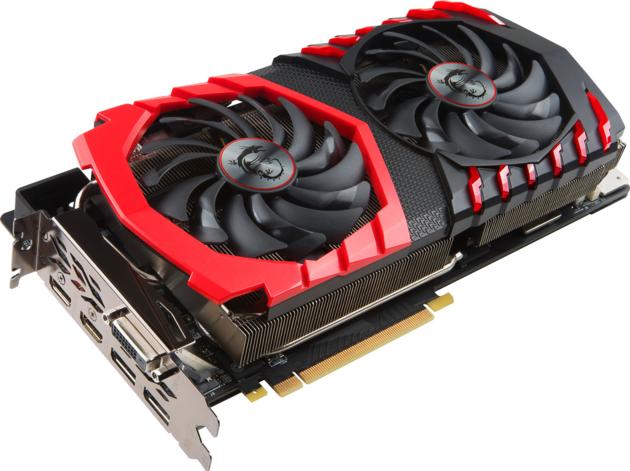

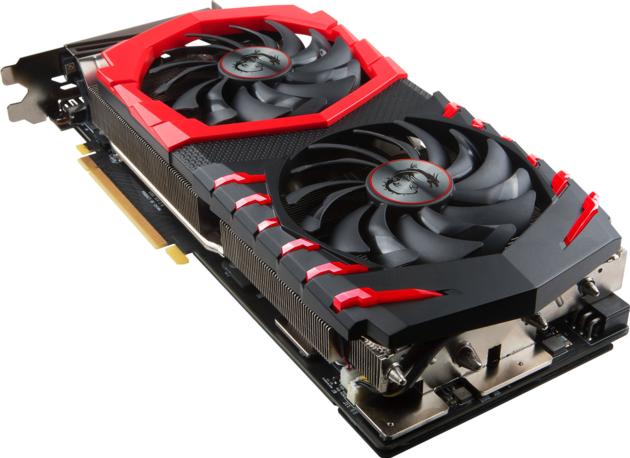

MSI GeForce GTX 1080 Ti DirectX 12 GeForce GTX 1080 Ti GAMING X 11G 11GB 352-Bit

Model
Brand
MSI
Model
GeForce GTX 1080 Ti GAMING X 11G

Interface
Interface
PCI Express 3.0 x16

Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce GTX 10 Series
GPU
GeForce GTX 1080 Ti
Core Clock
1569 MHz (OC Mode)
1544 MHz (Gaming Mode)
1480 MHz (Silent Mode)
Boost Clock
1683 MHz (OC Mode)
1657 MHz (Gaming Mode)
1582 MHz (Silent Mode)
CUDA Cores
3584

Memory
Effective Memory Clock
11124 MHz (OC Mode)
11016 MHz (Gaming / Silent )
Memory Size
11GB
Memory Interface
352-Bit
Memory Type
GDDR5X

3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.5

Ports
HDMI
2 x HDMI 2.0
Multi-Monitor Support
4
DisplayPort
2 x DisplayPort 1.4
DVI
1 x DL-DVI-D

Details
SLI Support
2-Way SLI
Virtual Reality Ready
Yes
Cooler
With Fan
System Requirements
Power consumption: 250W
Recommended PSU: 600W
Power Connector
2 x 8-Pin
Dual-Link DVI Supported
Yes
HDCP Ready
Yes

Features
Features
The Ultimate GAMING: TWIN FROZR VI
- Smooth Heat Pipes: Squared shape at bottom maximize heat transfer from the copper base plate.
- Zero Frozr: Stopping the fan in low-load situations, keeping a noise-free environment.
- Airflow Control: Technology Deflectors thrusts air onto heat pipes for lower temperatures and better gaming.

TORX FAN 2.0: Supremely silent
- Dispersion fan blade: Steeper curved blade accelerating the airflow.
- Traditional fan blade: Provides steady airflow to massive heat sink below.
- Double ball bearing: Strong and lasting core for years of smooth gaming.

Gaming App
- Instant Performance Gain: Unlock extra performance or keep your card silent during light use in one click.
- LED control: Full control on your RGB GAMING LEDs to set the mood.

2.5-Slot Width

Form Factor & Dimensions
Max GPU Length
290 mm
Card Dimensions (L x H)
11.42" x 5.51"
Slot Width
2.5-Slot
