MS5 WiFi USB Digital HD Electronic Microscope For PCB Inspection

MS5 1000X Digital Microscope HD 1080P 8LED USB WiFi Electronic Microscope Mobile Phone Microscope for Smartphone, Computer, iPad, PCB Inspection, Biology lab, science research student education.



Description:

Eight bright white light LED light fill light easily deal with all kinds of energy use, day and night scene.

The adjustable 50 x-1000 x focusing let the one-handed operation more convenient.

Support horizontal and vertical 360 vision no dead Angle observation, up and down at the bottom have prevent slippery effect.

Support USB micro type-c a variety of functions, multiple choice.

Suit for Gem testing, circuit board testing, auxiliary teaching, textile testing, watch repair, check the skin ect.



Specifications:

Item name: Electronic microscope

Color: Black

Product type: MS5

Lens optical size: 1/6.5"

Signal-to-noise ratio: 42dB Sensitivity: 2.5V/ Lux. s Photograph Resolution: Video resolution: 640x480, 1280*720, 1920*1080

Video format: MOV

Focus mode: Manual

Image format: JPG

Magnification: 50x-1000x

Light source: 8 LED lights (brightness adjustable)

Focus range: 10~40mm (can view the perspective)

WiFi distance: Within 3 meters

White Balance: Automatic

Exposure: Automatic

PC OS: Windows XP, Win7, Win8, Win10,for Mac OS X 10.5 or higher.

Lens structure: 2G+IR

Aperture: F4.5

Lens Angle: 16®

Interface and signal transmission mode: Micro/ USB2.0

Storage temperature/humidity: -20℃ -+ 60℃ 10-80%RH

Working temperature/humidity: 0℃ - +50℃ 30%-85%RH

Operating current: ~250 mA

Power consumption: 1.25 W

App working environment: Android5.0 or above, iOS 8.0 or above

WiFi implementation standard: 2.4GHz (IEEE 802.11b/g/n)

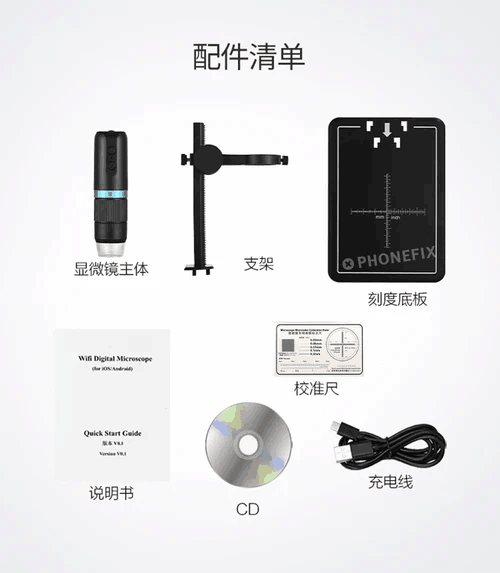

Packing list:

1 x Microscope main body

1 x Bracket

1 x Instruction

1 x Calibration ruler

1 x USB data cable

1 x Installation CD (including driver software, measuring software, system components, user manual)
