MRO-TEK Mogralite Ethernet Switch
| Price: | Rs. 13000 / Piece |
|---|---|
| Minimum Order: | 500 |
| Payment Terms: | TT |
| Port of Export: | Chennai |
Product Details
| Model No.: | MOGRALITE | Brand Name: | MRO-TEK |
|---|
| Certification: | |
|---|---|
| Specification: |

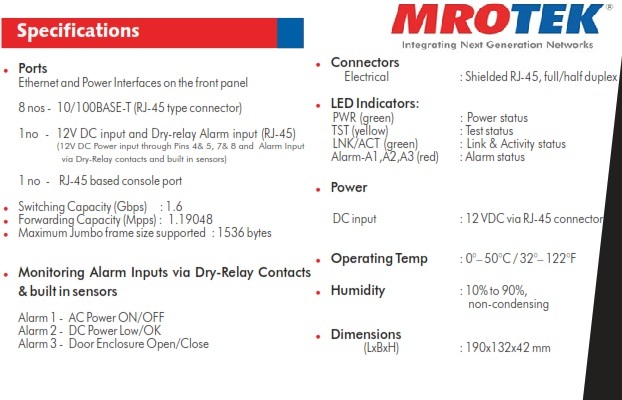

Specifications Ports Ethernet and Power Interfaces on the front panel 8 nos - 10/100BASE-T (RJ-45 type connector) 1no - 12V DC input and Dry-relay Alarm input (RJ-45) (12V DC Power input through Pins 4& 5, 7& 8 and Alarm Input via Dry-Relay contacts and built in sensors) 1 no - RJ-45 based console port Switching Capacity (Gbps) : 1.6 Forwarding Capacity (Mpps) : 1.19048 Maximum Jumbo frame size supported : 1536 bytes Monitoring Alarm Inputs via Dry-Relay Contacts & built in sensors Alarm 1 - AC Power ON/OFF Alarm 2 - DC Power Low/OK Alarm 3 - Door Enclosure Open/Close Connectors Electrical: Shielded RJ-45, full/half duplex LED Indicators: PWR (green) : Power status TST (yellow) : Test status LNK/ACT (green) : Link & Activity status Alarm-A1,A2,A3 (red) : Alarm status Power DC input : 12 VDC via RJ-45 connector Operating Temp : 0®– 50®C / 32®– 122®F Humidity : 10% to 90%, non-condensing Dimensions(LxBxH) : 190x132x42 mm |
Packaging & Delivery
| Packaging: | MRO-TEK company logo on the top of the box. High quality box sealed secure packing. |
|---|---|
| Delivery/Lead Time: | 6 - 8 weeks from the date of order place |
| Production Capacity: | No limit as per customer requirement we can manufacturer |
Product Description

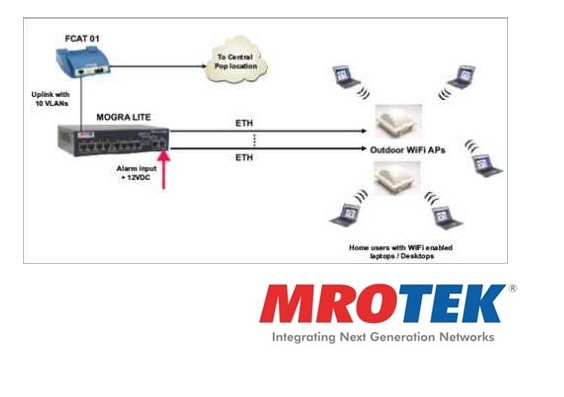

Description Mogra Lite is a compact SNMP Managed 8 Port 10/100BASE-T Ethernet Switch, with added support for Monitoring Alarm Inputs. The whole solution is housed in a 1U Enclosure for Indoor Deployment. Mogra Lite can be managed by the NMS Liteview using SNMP protocol.
Key Features
8 x 10/100BASE-T Ethernet Ports
Auto Negotiation Enable/Disable per port
Enable/Disable Data Traffic per port
IEEE 802.1D STP & RSTP
Supports IGMP, LACP, MSTP, NTP & LLDP
Tagged and untagged operation
4096 VLAN support
Port Isolation & Separation for user access security
Broadcast, Multicast & DLF suppression support
Rate Limiting per port
Support for 16-Static MAC Address Filtering
Maximum Frame Size up to 1536 bytes
Support for Monitoring up to 3 Alarm Inputs via Dry Contact Relays & built in sensors
Management
LITEVIEW NMS software on Linux platform
Inband Management via Uplink port
SNMP v1/v2c support
Support to define SNMP community names
IP address for management
Telnet support
TFTP for firmware upgrade
|
