MRO-TEK Mogralite 208 Ethernet Aggregation
| Price: | Rs. 20000 / Piece |
|---|---|
| Minimum Order: | 500 |
| Payment Terms: | TT |
| Port of Export: | Chennai |
Product Details
| Model No.: | Mogra208 | Brand Name: | MRO-TEK |
|---|
| Certification: | |
|---|---|
| Specification: |

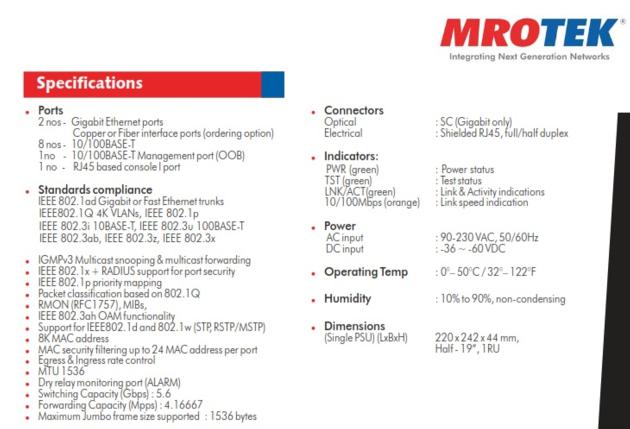

Specifications Ports 2 nos - Gigabit Ethernet ports Copper or Fiber interface ports (ordering option) 8 nos - 10/100BASE-T 1no - 10/100BASE-T Management port (OOB) 1 no - RJ45 based console l port Standards compliance IEEE 802.1ad Gigabit or Fast Ethernet trunks IEEE802.1Q 4K VLANs, IEEE 802.1p IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-T IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x IGMPv3 Multicast snooping & multicast forwarding IEEE 802.1x + RADIUS support for port security IEEE 802.1p priority mapping Packet classification based on 802.1Q RMON (RFC1757), MIBs, IEEE 802.3ah OAM functionality Support for IEEE802.1d and 802.1w (STP, RSTP/MSTP) 8K MAC address MAC security filtering up to 24 MAC address per port Egress & Ingress rate control MTU 1536 Dry relay monitoring port (ALARM) Switching Capacity (Gbps) : 5.6 Forwarding Capacity (Mpps) : 4.16667 Maximum Jumbo frame size supported : 1536 bytes Connectors Optical : SC (Gigabit only) Electrical : Shielded RJ45, full/half duplex Indicators: PWR (green) : Power status TST (green) : Test status LNK/ACT(green) : Link & Activity indications 10/100Mbps (orange) : Link speed indication Power AC input : 90-230 VAC, 50/60Hz DC input : -36 ~ -60 VDC Operating Temp : 0¬– 50¬C / 32¬– 122¬F Humidity : 10% to 90%, non-condensing Dimensions(Single PSU) (LxBxH): 220 x 242 x 44 mm, Half - 19”, 1RU |
Packaging & Delivery
| Packaging: | MRO-TEK company logo on the top of the box. High quality box sealed secure packing. |
|---|---|
| Delivery/Lead Time: | 6 - 8 weeks from the date of order place |
| Production Capacity: | No limit as per customer requirement we can manufacturer |
Product Description
Description Mogra208 is a Service-provider edge switch enabling service aggregation, ideally suited for Service Provider and enterprise networks. Mogra208 maximizes bandwidth utilization with its QoS features and offers flexibility in configuration for aggregating customer networks from CPEs.
With increased demand for Next-Gen services like Metro Ethernet, Wireless P2P, new services like Triple play and online gaming, service providers are looking for edge devices, which are feature-rich, yet simple to install and use.
Mogra208 is a Layer-2 access aggregation switch offering QoS and priority for multi-service and IMS traffic, differentiating flows based on VLANs. The protocol-rich edge switch enables Ethernet and Fast Ethernet on copper interfaces, Gigabit on copper / fiber interfaces.
This SNMP managed device supports features that are essential for customer access provisioning and supports link diagnostics as per IEEE 802.3ah & Dying gasp
The Mogra208 provides Ethernet and Fast Ethernet on RJ45 copper ports, Gigabit Ethernet connectivity on Copper / Fiber media (SC connector).
Supporting IGMPv1/v2/v3 protocols along with full set of IEEE 802.1Q VLANs, RSTP and wire-speed switching among its ports, this is a true service class device, more suitable for Service Providers and Large enterprises. Content-rich management features for Mogra208 are offered by LITEVIEW NMS, a Linux-based Management tool.
Key Features
2 x Gigabit Ethernet ports (Copper or Fiber)
8 x 10/100BASE-T ports
Auto-MDI-X for copper ports
Tagged and untagged operation
4096 VLAN support
Double tagging on Gigabit ports
Port isolation for user access security
Broadcast, Multicast & DLF suppression support
Granular bandwidth management
STP/RSTP and sub-50ms recovery with MROPPP
Management
LITEVIEW NMS software on Linux platform
CLI based console port
SNMP v1/v2c support
IP address for management
Telnet support ( 4 sessions)
TFTP client services
Logging support
BOOTP support
IEEE 802.3ah & Dying gasp

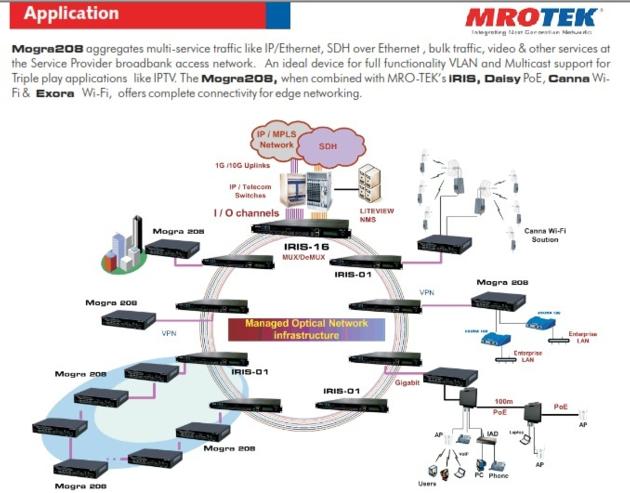

Application
Mogra208 aggregates multi-service traffic like IP/Ethernet, SDH over Ethernet , bulk traffic, video & other services at the Service Provider broadbank access network. An ideal device for full functionality VLAN and Multicast support for Triple play applications like IPTV. The Mogra208, when combined with MRO-TEK’s iRIS, Daisy PoE, Canna Wi- Fi & Exora Wi-Fi, offers complete connectivity for edge networking.
|
