MRO-TEK Ethernet Edge Access Multiplexer - eSONA8 ADV
| Price: | Rs. 25000 / Piece |
|---|---|
| Minimum Order: | 500 |
| Payment Terms: | TT |
| Port of Export: | Chennai |
Product Details
| Model No.: | eSONA8 ADV | Brand Name: | MRO-TEK |
|---|
| Certification: | |
|---|---|

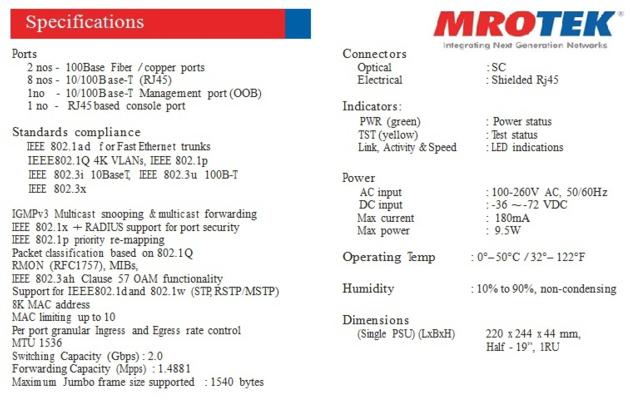

| Specification: |
Technical Specifications Ports 2 nos - 100Base Fiber / copper ports 8 nos - 10/100Base-T (RJ45) 1no - 10/100Base-T Management port (OOB) 1 no - RJ45 based console port Standards compliance IEEE 802.1ad f or Fast Ethernet trunks IEEE802.1Q 4K VLANs, IEEE 802.1p IEEE 802.3i 10BaseT, IEEE 802.3u 100B-T IEEE 802.3x IGMPv3 Multicast snooping & multicast forwarding IEEE 802.1x + RADIUS support for port security IEEE 802.1p priority re-mapping Packet classification based on 802.1Q RMON (RFC1757), MIBs, IEEE 802.3ah Clause 57 OAM functionality Support for IEEE802.1d and 802.1w (STP, RSTP/MSTP) 8K MAC address MAC limiting up to 10 Per port granular Ingress and Egress rate control MTU 1536 Switching Capacity (Gbps) : 2.0 Forwarding Capacity (Mpps) : 1.4881 Maximum Jumbo frame size supported : 1540 bytes Connectors Optical : SC Electrical: Shielded Rj45 Indicators: PWR (green): Power status TST (yellow): Test status Link, Activity & Speed: LED indications Power AC input: 100-260V AC, 50/60Hz DC input: -36 ~ -72 VDC Max current : 180mA Max power: 9.5W Operating Temp: 0ü– 50üC / 32ü– 122üF Humidity: 10% to 90%, non-condensing Dimensions(Single PSU) (LxBxH): 220 x 244 x 44 mm, Half - 19”, 1RU |
Packaging & Delivery
| Packaging: | MRO-TEK company logo on the top of the box. High quality box sealed secure and packing. |
|---|---|
| Delivery/Lead Time: | 6 - 8 weeks from the date of order place |
| Production Capacity: | No limit as per customer requirement we can manufacturer |
Product Description
Description eSONAþ8 ADV is an Ethernet Edge Access Multiplexer that aggregates traffic from the Ethernet Access Ports to the Fiber/Copper Fast Ethernet Uplink Port. eSONAþ8 ADV delivers high performance and provides user security, Broadcast storm control and ring protection mechanism for resilient and secure operation in any Service Providers network.
With increased demand for Next-Gen services like Metro Ethernet, Wireless P2P, new services like Triple play and online gaming, service providers are looking for edge devices, which are feature rich, yet simple to install and use products.
eSONAþ8 ADV is a Layer-2 access aggregation switch offering QoS and priority for multi-service and IMS traffic, differentiating flows based on VLANs. The protocol-rich edge switch enables Fast Ethernet on copper / fiber uplink interfaces.
This SNMP managed device supports features that are essential for customer access provisioning and supports link diagnostics as per IEEE 802.3ah Clause 57 OAM & Dying gasp.
Supporting IGMP v1/v2/v3 protocols along with full set of IEEE 802.1Q vLANs, RSTP and wire-speed switching among its ports, eSONAþ8 ADV is a true service class device, more suitable for Service Providers and Large enterprises.
Content-rich management features for eSONAþ8 ADV are offered by LITEview, a Linux-based Management tool.
Key Features
2 x 100Base Ethernet ports (Copper or Fiber)
8 x 10/100Base-T ports
Auto-MDI-X for copper ports
VLAN aware and VLAN unaware modes of operation
4096 VLAN support
Double tagging on Uplink ports
Options for naming ports and VLAN
Port isolation for user access security
Broadcast, Multicast & DLF suppression support
Per port granular Ingress & Egress rate control
STP/RSTP and sub-50ms recovery with MROPPP
Link Aggregation 802.3ad / LACP support
Management
Web based LITEVIEW NMS application on Linux platform
CLI based console port
SNMP V1/V2c support
IP address for management
Telnet support ( 4 sessions)
TFTP client services
Logging support
DHCP Client support
IEEE 802.3ah Clause 57 OAM & Dying gasp

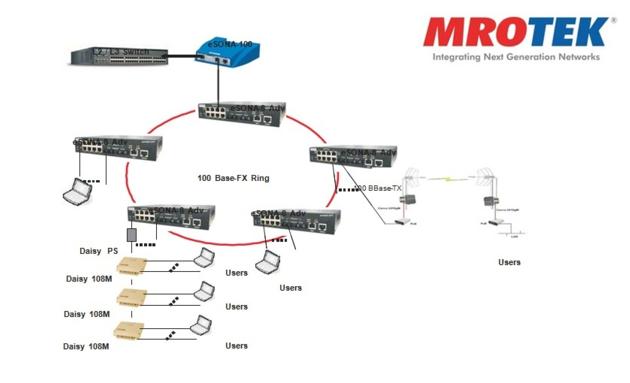

Application
eSONAû8 ADV aggregates multi-service traffic like IP/Ethernet, Voice, video & other services at the Service Provider broadband access network. An ideal device for full functionality VLAN and Multicast support for applications like IPTv. The eSONAû8 ADV, when combined with MRO-TEK’s Daisy PoE and Canna Wi-Fi, offers complete connectivity for edge networking.
|
