MRO-TEK Cyprus TDM Over IP Ethernet Multiplexer

Price: Rs. 52000 / Piece
Minimum Order: 500
Payment Terms: TT
Port of Export: Chennai
Product Details
Model No.: CYP/998-2511 Brand Name: MRO-TEK
Certification:

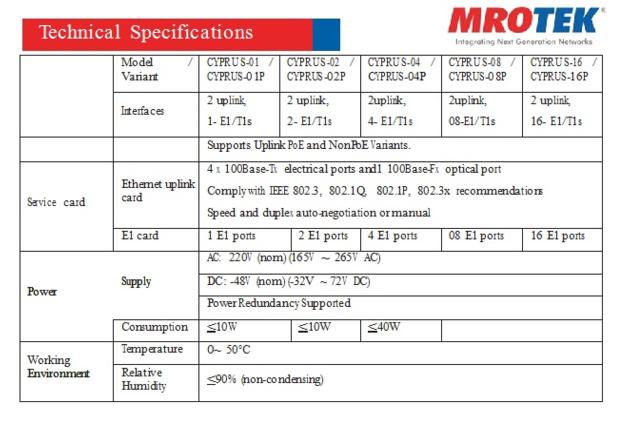

Specification: Technical Specifications

Model / Variant

Interfaces
CYPRUS-01 / CYPRUS-01P: 2 uplink, 1- E1/T1s
CYPRUS-02 / CYPRUS-02P: 2 uplink, 2- E1/T1s
CYPRUS-04 / CYPRUS-04P: 2uplink, 4- E1/T1s
CYPRUS-08 / CYPRUS-08P: 2uplink, 08-E1/T1s
CYPRUS-16 / CYPRUS-16P: 2 uplink, 16- E1/T1s

Supports Uplink PoE and NonPoE Variants

Service card:
Ethernet uplink card
4 x 100Base-Tx electrical ports and1 100Base-Fx optical port

Comply with IEEE 802.3, 802.1Q, 802.1P, 802.3x recommendations

Speed and duplex auto-negotiation or manual

E1 card: 1 E1 ports, 2 E1 ports, 4 E1 ports, 08 E1 ports, 16 E1 ports

Power supply:
AC: 220V (nom) (165V ~ 265V AC)
DC: -48V (nom) (-32V ~ 72V DC)
Power Redundancy Supported

Consumption: <10W, <10W, <40W

Working Environment:
Temperature: 0~ 50þC
Relative Humidity: <90% (non-condensing)
Packaging & Delivery
Packaging: MRO-TEK company logo on the top of the box. High quality box sealed secure packing.
Delivery/Lead Time: 6 - 8 weeks from the date of order place
Production Capacity: No limit as per customer requirement we can manufacturer
Product Description
CYPRUS family products adopt the innovative TDM over IP technology, with IP circuit emulation that supports transportation of E1/2E1/4E1/8E1/16E1 over FE port. The uplink ports and user data ports are IEEE 802.3 compliant,
10/100 auto-sensed Ethernet ports.

Telecom and Enterprise users can save a lot of access and equipment costs and generates new revenue by offering different types of service over existing Ethernet networks. It is also suitable for connecting to the wireless equipment to achieve fast deployment of E1 services. One particular application is to build E1 links with low cost Wireless LAN bridges, replacing much more costly microwave radios.

Operators can use CYPRUS Series products to provide legacy TDM services over wired or wireless packet network.

Key Features:

Supports IETF RFC4553 SAToP protocol, Ethernet encapsulation support IP/UDP
Provides 4 FE electrical ports and 1 FE optical port, 2 uplink ports, 2 user data ports or monitoring ports, optical port can be used for uplink or user data & E1/2E1/4E1 ports
User-friendly Web server supported for easy setup and maintenance
Supports SNMP V1/V2 network management.
E1 clock modes : local clock, adaptive and loopback
E1 service supports loss and lossless protection
Ethernet built-in layer 2 switch, supports VLAN (port based, 802.1Q based and QinQ based), QoS (port based, 8021.1P based, MAC based and TOS based)
Ethernet supports IEEE 802.3x, RSTP (802.1w), LLDP, Ethernet ring protection, OAM and MAC address automatic learning. Ethernet packet size upto 9720 bytes (Jumbo frames)

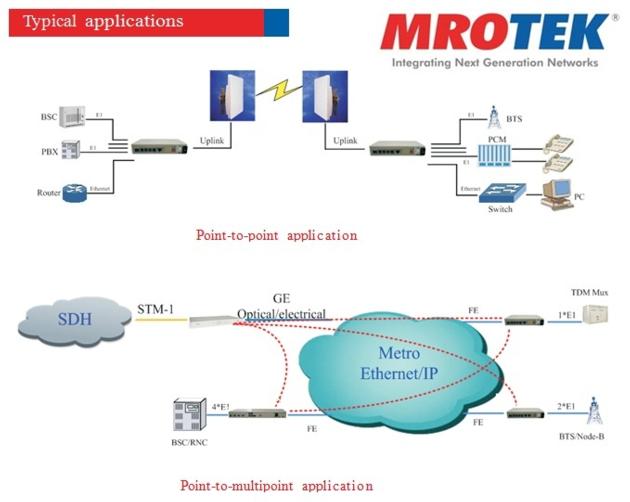

Point-to-point and point-to-multipoint connectivity supported
Local Ethernet port throughput limiting Software and hardware online upgrade Power supply redundancy
Variants supports PoE in Uplink ports with 24/55VDC as sourcing voltage.
