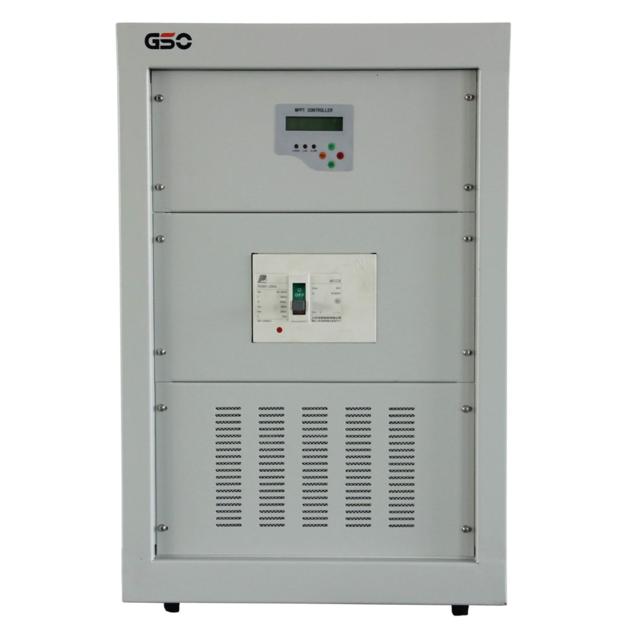

MPPT controller 96V100A
| Price: | US$ 565 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | 30% prepayment and the balance against the copy of |
| Port of Export: | Shanghai |
Product Details
| Model No.: | GSM-96/100 | Brand Name: | GSO |
|---|
| Certification: | CE, ROHS |
|---|---|
| Specification: |
Voltage level GSM48 GSM96 GSM192 GSM220 GSM240
Rated voltage (VDC) 48 96 192 220 240 Over voltage value(VDC) 62.0 124.0 248.0 279.0 310.0 Over voltage recovery value(VDC) 60.0 120.0 240.0 270.0 300.0 Float charge Voltage(VDC) Settable 54.0 108.0 216.0 243.0 270.0 Bulk charge Voltage(VDC) 56.8 113.6 227.2 255.6 284.0 Maximum charging current (A) 60/120 50/100/150/200 Charging Mode Three-stage: constant current(MPPT), bulk charge, float charge Rated input power (kWp) 3.4/6.8 5.7/11.4/ 17.1/22.8 11.4/22.8/ 34.2/45.6 12.8/25.6/ 38.4/51.2 14.2/28.4/ 42.6/56.8 Start work voltage(VDC) 80 140 270 290 330 MPPT voltage range (VDC) 70-150 130-280 260-450 280-450 320-450 Maximum input voltage (VDC) 160 300 480 Maximum efficiency >98% MPPT efficiency >99% Noise (dB) <55 Degree of protection IP20 Display LCD+LED Communication RS485(optional) Working temperature -10~+50℃ Relative humidity 0 to 95% (non-condensing) Altitude (m) ≤5000m, (1000 meters above derating) Degree of protection IP20 Dimensions (W × H × D mm) 400*280*160 400*280*160/440*685*440 Protection PV array reverse polarity protection; reverse battery protection; nighttime anti-charge protection; battery overcharge protection, output overload protection, over temperature protection ect. |
Packaging & Delivery
| Packaging: | carton |
|---|---|
| Delivery/Lead Time: | 10 days |
| Production Capacity: | 3000pcs/month |
Product Description
1 , different system voltage is optional, such as DC48V, DC96V, DC110V, DC192V, DC220V, DC240V
2, module design, it can be expanded to very big power
3, LCD interface, all of the parameters can be checked and modified through it
4, RS485 communication port, it can be remote monitored via GPRS or WIFI on the third part monitoring platform
5, Three-stage charging (constant current, constant voltage, float) can effectively extending the battery life.
|
