MJZXJ-1 Automatic Folder Gluer
| Price: | US$ 50000 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT,L/C at sight |
| Port of Export: | Cangzhou |
Product Details
| Model No.: | MJZXJ-1-1024 | Brand Name: | Royal |
|---|
| Certification: | CE,ISO9000 |
|---|---|
| Specification: |

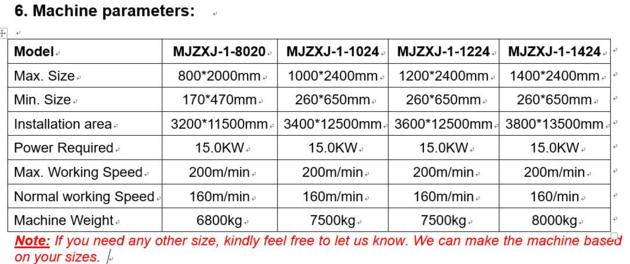

Machine parameters:
Model MJZXJ-1-8020 MJZXJ-1-1024 MJZXJ-1-1224 MJZXJ-1-1424 Max. Size 800*2000mm 1000*2400mm 1200*2400mm 1400*2400mm Min. Size 170*470mm 260*650mm 260*650mm 260*650mm Installation area 3200*11500mm 3400*12500mm 3600*12500mm 3800*13500mm Power Required 15.0KW 15.0KW 15.0KW 15.0KW Max. Working Speed 200m/min 200m/min 200m/min 200m/min Normal working Speed 160m/min 160m/min 160m/min 160/min Machine Weight 6800kg 7500kg 7500kg 8000kg Note: If you need any other size, kindly feel free to let us know. We can make the machine based on your sizes. |
Packaging & Delivery
| Packaging: | Hard Wooden Pallet .Hard Wooden Case .Steel Pallet |
|---|---|
| Delivery/Lead Time: | 30days |
| Production Capacity: | 2 units per month |
Product Description

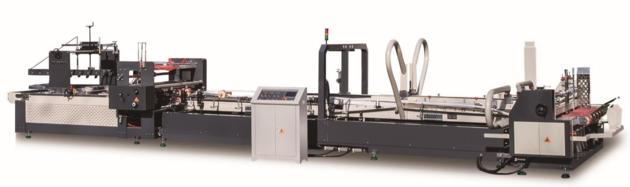

Introduction of the machine:
MJZXJ-1 model Automatic Folder gluer machine is composed of feeding part, glue and folding part, stacker part, speed controlled by PLC, paper width is adjusted by Touch PC, machine operation is easy and accurate, machine with automatic paper feeding function, automatic glue and fold function, automatic counting, automatic stacking and double conversion operation, the normal speed is 160pcs/min, Max. speed can be 220 pcs/min, this machine is your best choose which is energy-efficient and environmental protection.
Function and characteristic:
1. Automatic carton folding and at same time to finish the tape paste which is save time and labor force
2. Can be used for different size cartons and size adjust is simple and fast.
3. Machine run is stable and reliable, packing result is strong and nice.
4. Machine operation is simple and easy for maintenance.
5. Automatic collimator angle, 180 degree correction, effective corrective the carton appear fork and tail phenomenon.
|
