MEDITECH EKG-3A ECG device Large, Color and Touch Screen
| Price: | Contact for latest price |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | There are no conditions |
| Port of Export: |
Product Details
| Model No.: | MEDITECH EKG-3A ECG device Large, Color and Touch Screen | Brand Name: | Meditech |
|---|
| Certification: | CE-ISO |
|---|---|
| Specification: |
Large, Color and Touch Screen 7”.
Keyboard for Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F . Precise ECG auto-interpretation program. 12 lead ECG simultaneous acquisition and display. Simultaneous 3 leads ECG printing with 80mm thermal paper. Multiple operation mode: automatic, manual, arrhythmia analysis. Digital filters eliminate EMG, AC, Baseline Drift interference. Built-in rechargeable Li-ion battery, 2 hours continuous working. Real-time ECG waveform. External USB card store 1000 reports. Lead-off detection. Built in USB/RS232 interface. Software upgrade automatically via USB. |
Packaging & Delivery
| Packaging: | box |
|---|---|
| Delivery/Lead Time: | 3-10 WORKING DAYS |
| Production Capacity: |
Product Description

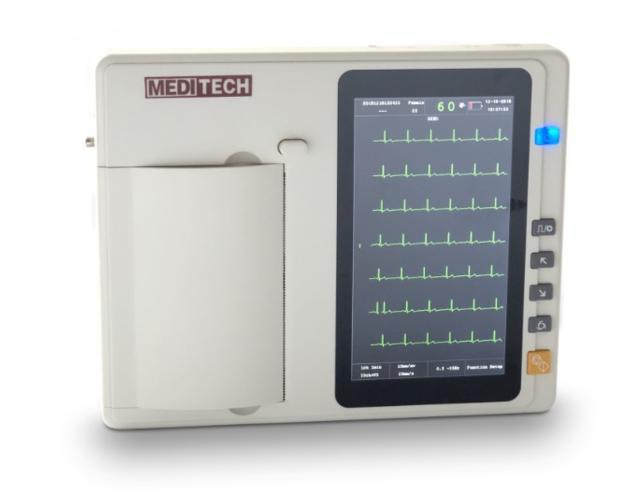

EKG-3A FROM MEDITECH
EKG-3A ECG device

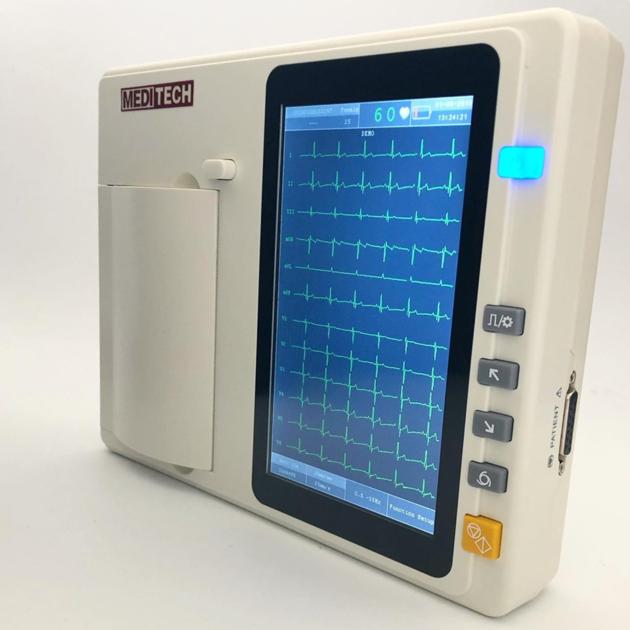

Three Channel ECG machine ,Slim,advanced and light weight
Technical Parameter
Lead: Standard 12 leads;
Input circuit: protection against defibrillator;
Acquisition Mode: Simultaneous 12 leads acquisition and asynchronous acquisition;
Measurement Range: ª5mVpp;
Time Constant ≥3.2s;
Frequency Response: 0.05Hz~150Hz (-3dB);
Sensitivity: 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV;
Input Impedance ≥50MΩ;
Input Circuit Current ＜0.05®¯°±²³´µA;
Noise Level ＜15®¯°±²³´µVp-p;
Patient Current Leakage ＜10®¯°±²³´µA (220V-240V);
Filter:
EMG Filter: 25 Hz / 30 Hz / 40Hz
Low Pass Filter: 75 Hz / 100 Hz / 150Hz
DFT Filter: 0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS
AC Filter: 50 Hz / 60Hz
CMRR: 100dB;
Recording Mode:
Automatic: 3CH×4+1R, 3CH×4, 6CHx2;
Manual: 4CH, 3CH, 2CH, 1CH
Rhythm: Any lead selectable
Recording System: Thermal matrix printing;
Recording Paper: Roll 80mmx30M;
Paper Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s;

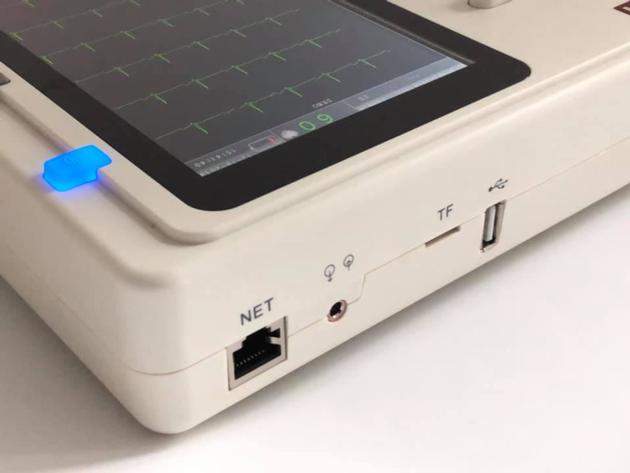

Interface: Network interface, USB Master/Slave, SD card;
Safety Standard: IEC I/CF;
Sample Rate:
Normal: 1000sps/channel
Power Supply:
AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery
|
