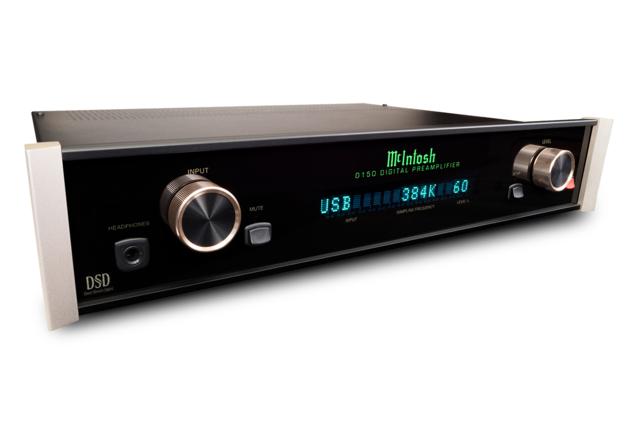

MCINTOSH D150 Pre-Amplifier

TOTAL HARMONIC DISTORTION

0.0015%

FREQUENCY RESPONSE

+/-0.5dB from 4Hz to 20,000Hz
+0.5/-3dB from 4Hz to 68,000Hz (Source dependent)

MAXIMUM VOLTS OUT (BALANCED / UNBALANCED)

16/8 V RMS

INPUT IMPEDANCE (BALANCED / UNBALANCED)

N/A

PHONO VOLTAGE GAIN

N/A

HIGH LEVEL VOLTAGE GAIN

N/A

SIGNAL TO NOISE RATIO

110dB

DUAL MONO POWER SUPPLY

No

DUAL MONO, FULLY BALANCED

Digital, Fully Balanced

CONNECTIVITY

BALANCED INPUTS

0

UNBALANCED INPUTS

0

PHONO MOVING COIL INPUT

0

PHONO MOVING MAGNET INPUT

0

DIGITAL COAXIAL INPUT

2

DIGITAL OPTICAL INPUT

2

DIGITAL MCT (DIN) INPUT

1

DIGITAL USB INPUT

1 (2.0, 32/192 Asynchronous)
44.1kHz to 384kHz, 32-Bit (PCM) DSD64, DSD128, DXD352.8kHz, DXD384kHz

DIGITAL AES/EBU INPUT

0

BALANCED FIXED OUTPUTS

1 Stereo

BALANCED VARIABLE OUTPUTS

1 Stereo

UNBALANCED FIXED OUTPUTS

1 Stereo

UNBALANCED VARIABLE OUTPUTS

1 Stereo

HEADPHONE OUTPUT

1/4″ High Drive

RECORD PROCESSOR LOOP

No

INPUT LEVEL MATCH

No

HOME THEATER PASS THROUGH

No

CONTROL

TONE CONTROLS

No

TONE BYPASS AND INPUT ASSIGN

No

RS232 CONTROL INPUT

No

POWER CONTROL OUTPUT

1

REAR PANEL DATA PORTS

1

REAR PANEL IR SENSOR INPUT

Yes

GENERAL SPECIFICATIONS

MULTI-CHASSIS OR SINGLE

Single

OUTPUT METERS

No

TUBE OR SOLID STATE

Solid State

ON, POWER CONSUMPTION

30 watts

WEIGHTS & DIMENSIONS

DIMENSIONS (W X H X D)

17.5″ (44.45cm) x 3-7/8″ (9.8cm) x 16″ (40.64cm)

WEIGHT

13.5 lbs (6.1kg)

SHIPPING WEIGHT

28 lbs (12.7kg)
