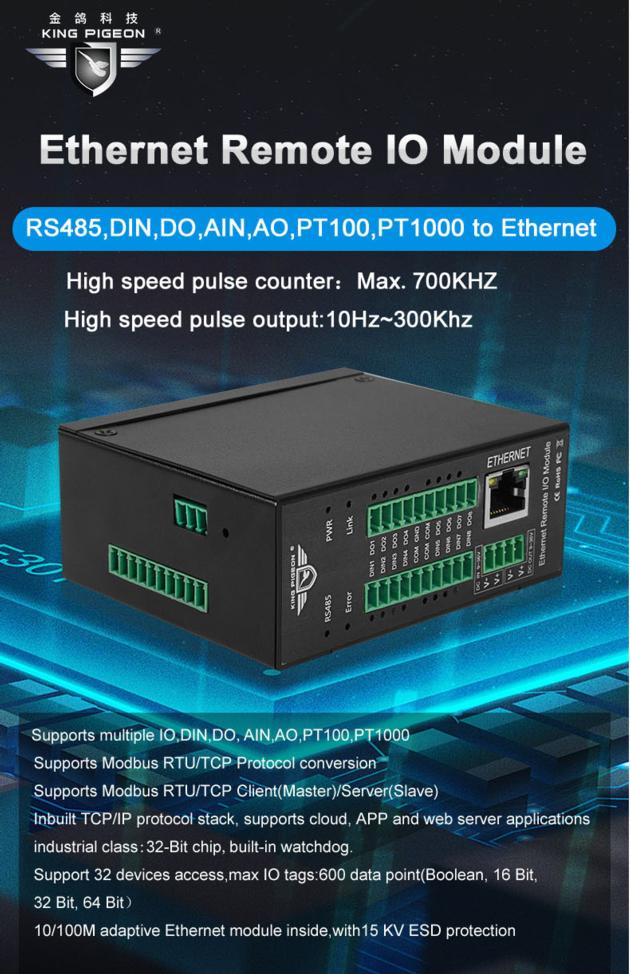

M160T Industrial Ethernet MQTT Modbus IO Module
| Price: | US$ 100 / Piece |
|---|---|
| Minimum Order: | 2 |
| Payment Terms: | Western Union, T/T, Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | M160T | Brand Name: | KING PIGEON |
|---|
| Certification: | ce |
|---|---|
| Specification: | The M160T Ethernet Remote I/O module provides 8 optical-isolated digital inputs, supports max. 10Mhz high speed pulse counter, 8 isolated 12bits analog inputs, supports 0~5V,0~10V,4~20mA,0~20mA analog signal, 8 digital outputs, supports 10Hz~300Khz high speed pulse output or relay outputs. All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system. |
Packaging & Delivery
| Packaging: | BOX |
|---|---|
| Delivery/Lead Time: | Within 7 working days |
| Production Capacity: | 50000 pieces per month |
Product Description
1. Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;
2. Power supply 12~36VDC with over voltage and phase-reversal protection;
3. Supports TCP Server, TCP Client, Modbus TCP, MQTT Protocols;
4. DO1 support PWM output;
5. Management and configuration via LAN connection configuration software for easy operation and maintenance;
6. 8 optical isolated digital input, supports max. 700khz high speed pulse counter;
7. 8 digital output or relay output, supports 10Hz~300KHz high speed pulse output;
8. 8 isolated analog input, 12-bit resolution, supports 0~20mA,4~20mA,0-5VDC, 0-10VDC;
9. High sampling frequency and special filtering strategy to ensure reliability;

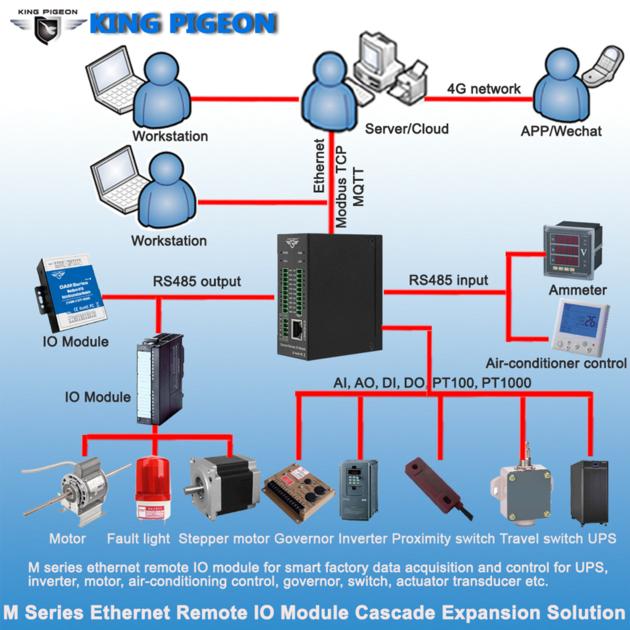

10.1 RS485 Serial port, supports Modbus RTU Master or Slave, can extend I/O modules;
11.Supports register mapping function and extend I/O inquiry strategy;
12.Provides 1 channel 12~36VDC power source output for external device, saving wiring cost;
13.LED instructions work status, with reset button to reset, easy on-site installation and commissioning;
14.Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;
13.Small size, L105 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.
|
