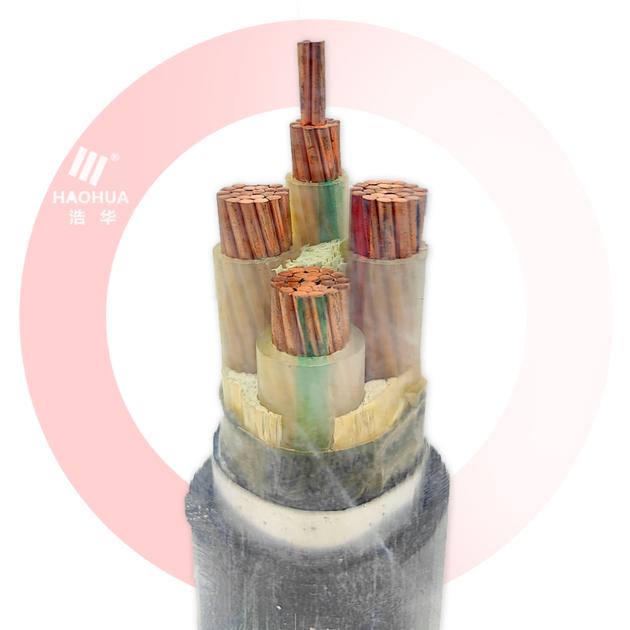

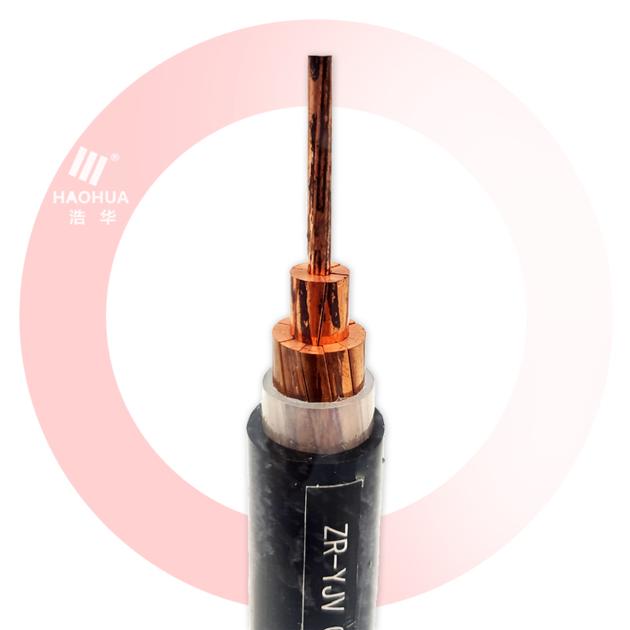

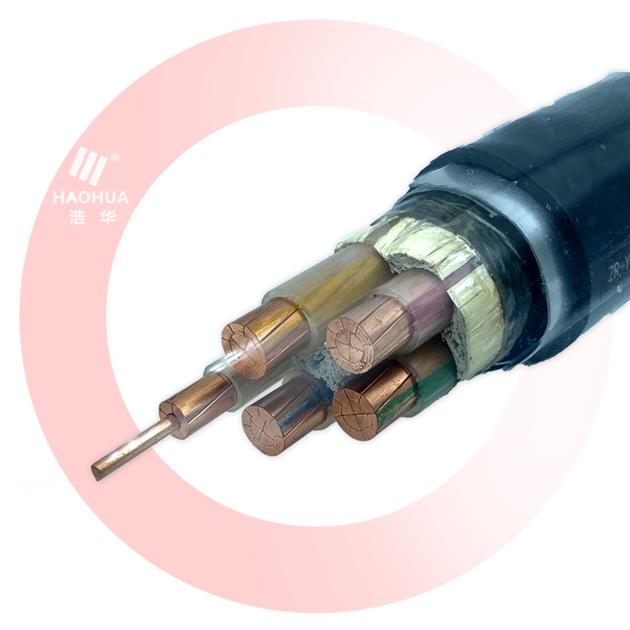

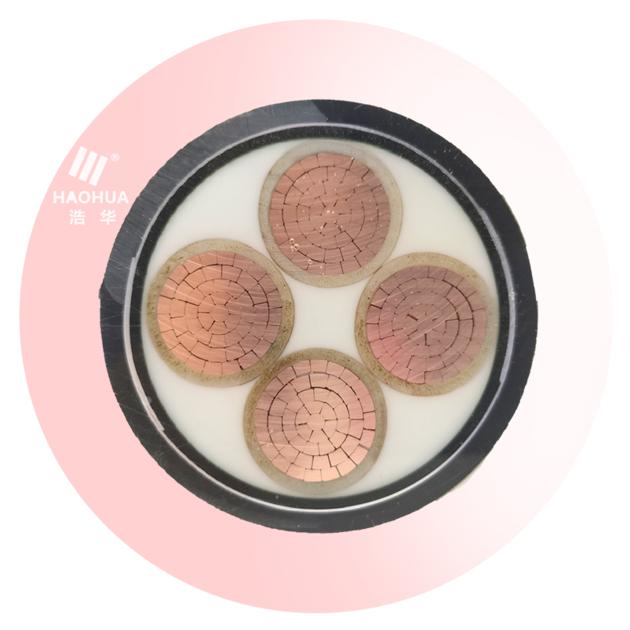

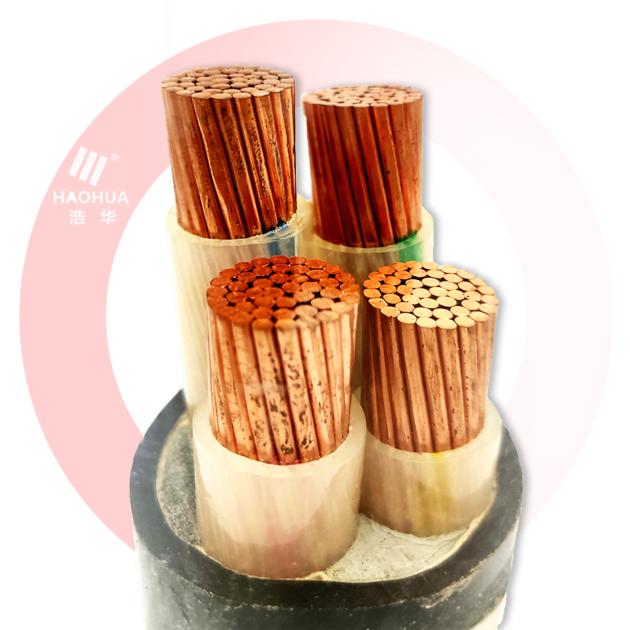

Low voltage CU/XLPE/PVC copper conductor armoured power cable
| Price: | US$ 1~60 |
|---|---|
| Minimum Order: | 100meters |
| Payment Terms: | L/C, T/T |
| Port of Export: | Tianjin, Qingdao, or other port as request. |
Product Details
| Model No.: | CU/XLPE/PVC N2XY N2XRGbY N2XCY | Brand Name: | HAOHUA |
|---|
| Certification: | ISO9001, CQC, CCC |
|---|---|
| Specification: |
Conductor: Cu, class 1 or 2 acc. To IEC 60228
Insulation: XLPE (Cross-Linked Polyethylene) Sheath: PVC (Polyvinyl Chloride) Sheath Color Black Voltage Rating U0 /U: 0.6/1kV Bending Radius for Single Core: Minimum: 15 x Ø Bending Radius for Multi Core: Minimum: 12 x Ø Operating Temperature Rating 0℃ to +90℃ Short-circuit Maximum Conductor Temperature: 250℃ Flame retardant (self-extinguishing) cable: Acc. to IEC 60332 Core Color marking: Acc. to HRN HD 308 S2 / VDE 0293-308 |
Packaging & Delivery
| Packaging: | steel or wooden drum, or as request |
|---|---|
| Delivery/Lead Time: | 7~10day |
| Production Capacity: | 5000kilometers per month |
Product Description
Low voltage CU/XLPE/PVC copper conductor armoured power cable
Conductor Type: Solid or strand
Certificate : ISO9001, CQC, CCC
Flame retardant: optional
Heat resistant: optional
Advantages: manufacturer,fast delivery,high quality good service
Other service: OEM/ODM
Application:
CU/XLPE/PVC Distribution and signal power cable for static application in ground, in water, within facilities, in cable canals, in concrete, where heavier mechanical stresses are not expected, and the cable has to be protected against mechanical damages, also in conditions where cables are not exposed to heavier tensile strains.
Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants where heavier current and thermal loads are expected (operating temperature of conductor up to 90℃).
Standard:
IEC 60502-1, BS 7870, BS 5467, HRN HD 603 S1, DIN VDE 0276-603, GB/T 12706.1 and SABS 1507
|
