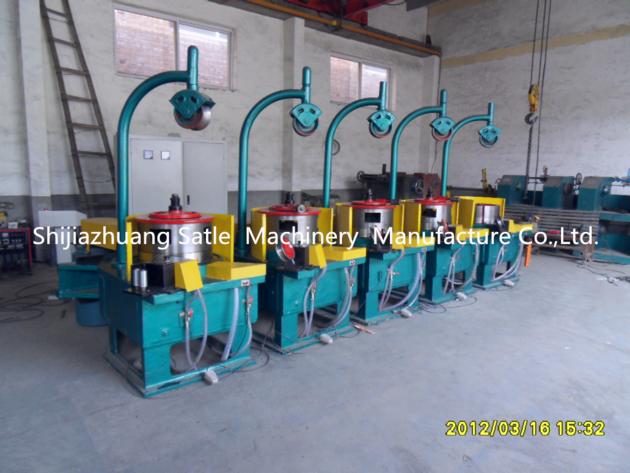

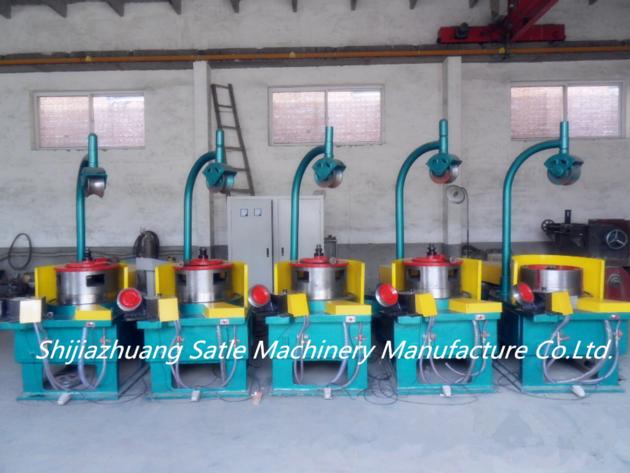

Low carbon steel wire drawing machine
| Price: | US$ 5000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | LC,TT |
| Port of Export: | Tianjin,China |
Product Details
| Model No.: | LW560 | Brand Name: | Satle |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
Model LW560(high configuration)

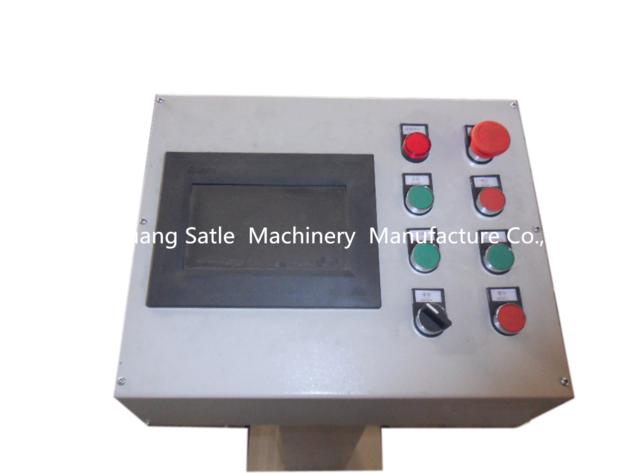

Inlet Wire Dia. 6.5mm Outlet Wire Dia. 2.3mm Drawing time 6-8 Number of drawing capstan 8 Motor Inverted motor Motor Power 22kw Max speed 7m/s Dia.of capstan 560mm Material of the capstan Steel coated tungsten carbide Warranty of capstan 24month Size dimension (L*W*H) 2.3*1.15*1.53m Weight 2360kg/set Warranty 12month Average compression ratio 25% Drive mode Gear box Control system PLC Inverter SINEE PLC Siemens Low voltage electric appliances Chint Brand |
Packaging & Delivery
| Packaging: | Generally plastic cloth |
|---|---|
| Delivery/Lead Time: | 30 days after your deposit |
| Production Capacity: | 200sets per year |
Product Description

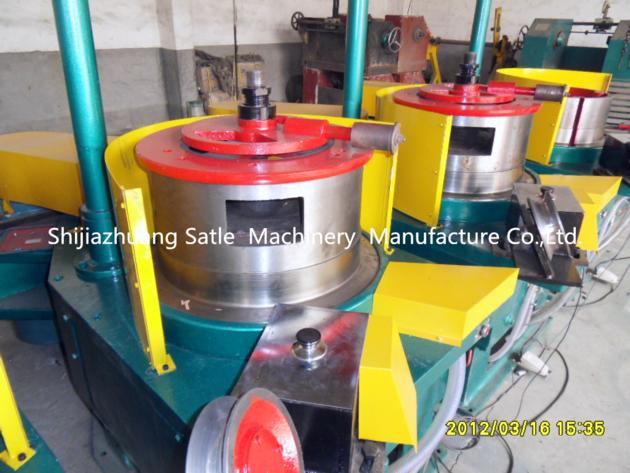

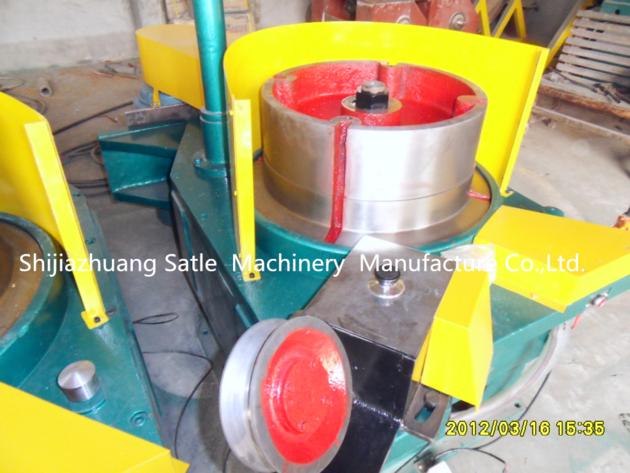

This machine are composed of several of several single block in parallel , which are controlled by the PLC programme. The speed of the machine is controlled by inverter. It can be used to draw metal wires including steel, aluminum, and copper etc. This machine is composed by structure members including capstan device, bridge device, die box, pulley device, cooling device, protective cover, and frame. The material of the capstan is ZG45 spray painting tungsten carbide. The surface is Mirror-surface treated and is rigid and wear without damaging the surface of the welding wire. The capstan adopts inner wall slit-type cooling and box direct cooling. which will provide sound effect .Additionally this wire drawing machines can be used with bobbin take-up machine or trunk type take-up machine.
|
