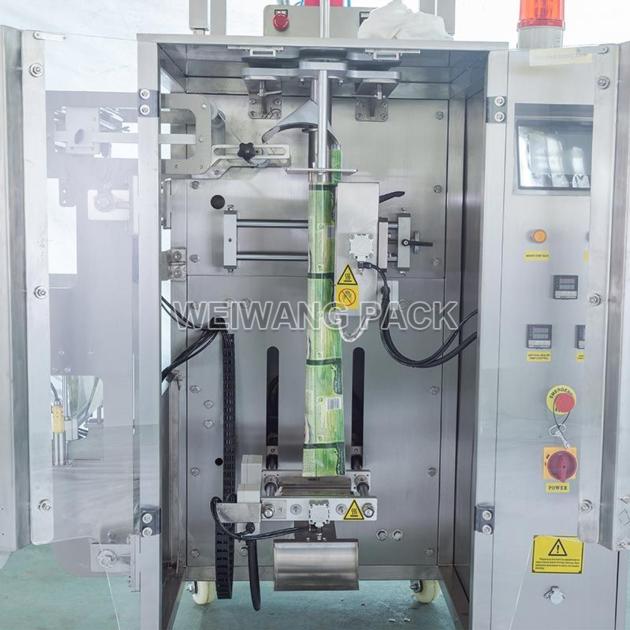

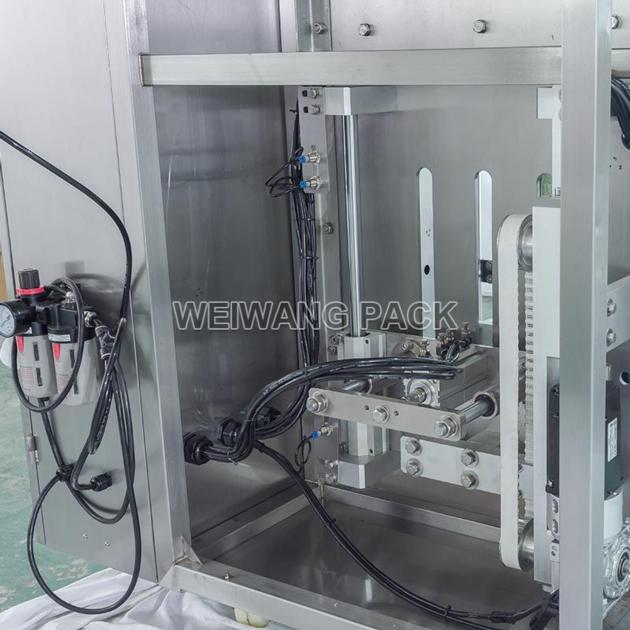

Liquid pouch packing machine WEIWANG PACK

Liquid pouch packing machine WEIWANG PACK-320L/420L/520L/720L/1050L/1200L
Application: Suitable for many kinds of liquid ,such as: milk, oil, shampoo, sauce, jam, juice, cream, paste, etc.

Optional Combined Parts

All kind of vertical packing machine

Paste/liquid filling machine

Finished products conveyor

Weight checker

Metal checker

Rotating table
Full automatic feeding measuring product and form film seal bags.
Full-automatic Dosing-Form-Fill-Seal type, efficient and simple to use.

Stainless steel 304 machine structure.

Easy to install film, auto correcting the excursion of the film.

PLC Computer control system ,machine performance is more stable and convenient for parameters adjusting.
You can click here to get the pouch packing machine price
High accuracy liquid/paste filling system, anti-drip design

Touch screen with multiple language
Optional Device: Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Airfilling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag.
https://*/product-liquid-pouch-packing-machine.html
Type WW - 320 WW - 420 WW - 520 WW - 720 WW - 1050 WW - 1200
Packing speed 10 - 80 bag / min 10 - 70 bag / min 5 - 60bag / min 5 - 60bag / min 5 - 40bag / min 5 - 30bag / min
Bag Length 50 - 200mm 50 - 300mm(L) 80 - 370mm(L) 80 - 470mm(L) 100 - 570mm(L) 100 - 800mm(L)
Bag width 40 - 150mm 50 - 200mm(W) 80 - 250mm(W) 100 - 350mm(W) 180 - 450mm(W) 200 - 580mm(W)
The max. roll film width 320mm 420mm 520mm 720mm 1050mm 1200mm
Air consumption 0.65mpa 0.65mpa 1.0mpa 1.0Mps 1.0Mpa 1.0Mpa
Air consumption 0.25m3 / min 0.3m3 / min 0.4m3 / min 0.4m3 / min 0.5m3 / min 0.5m3 / min
Power 220V 50/60HZ 2Kw 220V 50/60HZ 2.2Kw 220V 50/60HZ 2.7Kw 220V 50/60HZ 3Kw   220V 50/60HZ 6kw 220V 50/60HZ 6kw
Overall size(L × W × H)
mm 1200 × 700 × 1520 1080 × 1300 × 1400 1650 × 1170 × 1700 1700 × 1270 × 1900 1750 × 1510 × 2100 2400 × 1800 × (H) 2750
Weight 400KG 600Kg 800Kg 900Kg 1000Kg 1200Kg

Fill range Voltage Air pressure Weight(kg) Dimension(mm)
10 - 100ml 110/220V 0.4 - 0.6MPa 28kg 950 * 320 * 340
30 - 300ml 28kg 950 * 320 * 340
50 - 500ml 28kg 950 * 320 * 340
100 - 1000ml 33kg 1270 * 320 * 350
300 - 2500ml 41kg 1190 * 380 * 420
1000 - 5000ml 46kg 1230 * 380 * 420
