Lateral Movement Expansion Joint
| Price: | US$ 5~2000 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | EH-900 | Brand Name: | Ehase-Flex |
|---|
| Certification: | ISO |
|---|---|
| Specification: |
Specification Nominal Bore Total Length Bellows O.D. Effective Area Lateral Deflection Rated Working Pressure kg/cm2 mm ins mm mm cm2 mm EH-900 EH-900H 50 2 900 76 30.4 200 10 16 65 2 1/2 900 92 43.8 200 10 16 80 3 1000 106 62.8 200 10 16 100 4 1100 133 107.7 200 10 16 125 5 1250 163 162.9 200 10 16 150 6 1250 190 227.5 200 10 16 200 8 1400 252 385.3 200 10 16 250 10 1500 315 670.1 200 10 16 300 12 1600 366 923.5 200 10 16 350 14 1700 398 1102 200 10 16 400 16 1800 462 1464 200 10 16 500 20 1900 564 2235 200 10 16 600 24 2200 666 3167 200 10 16 *Specifications stated abvoe are the standard. We can design and manufacture according to customer's requirement *Flange Standard: JIS, ANSI, DIN, B.S. JB etc Features 1. Excellent Welding Technology, like a fish swimming in water. 2. Omega Bellows, More flexible and longer service life. |
Packaging & Delivery
| Packaging: | Carton Box, Pallet, or Plywood Case |
|---|---|
| Delivery/Lead Time: | 20 Working Days |
| Production Capacity: | 80000 Piece/Pieces per Year |
Product Description
Quick Details Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-Flex
Model Number: EH-900/900H
Type: Flange connection expansion joint
Material: Stainless Steel
Technics: Welding
Connection: Flange
Shape: Equal
Head Code: Round
Product Name: Lateral Movement Expansion Joint
Application: Compensate multi-plane displacement of the synthesis of curved duct
Nominal Size: DN50-DN600
Size in incha: 2"- 24"
Working Pressure: 10Bar,16bar,25bar
Lateral Deflection: 200MM
Temperature: max to 1000 ℃
Standard of Flange: JIS,ANSI,DIN,B.S,JB..
OEM OR ODM: Allowed
Certificate: ISO
Supply Ability
Supply Ability: 80000 Piece/Pieces per Year H.S Code:7302.29
Packaging & Delivery
Packaging Details
Carton Box, Pallet, or Plywood Case
No Unacceptable Packaging Material or Bamboo Products been Used as Packing
Port Shanghai or Ningbo or Any Port in China
Lead Time :Normally 20 Days; Depends on Customer's Requirement
Product Description
Lateral Movement Expansion Joint
Application
It is mainly to compensate multiplane displacement of the synthesis of curved duct is deflection angel. Because the equalizing ring, shaft and the flap can withstand the pressure thrust and other additional external force function, the inflation festival self-absorption intrinsic pressure thrust force, will have the external force to the pipeline, therefore the pipeline support's establishment may simplify. Universal hinged bellows to compensate for any upward angular displacement of the pipe line.
Construction
ITEM PARTS MATERIAL REMARK
1 Bellows SUS304 SUS316/321
2 Flanges SS400 SUS304/316/321
3 Tube End SS400 SUS304 /316/321
4 Pins SS400 SUS304/316/321
5 Gimbal Rings SS400 SUS304/316/321
6 Brackets SS400 SUS304/316/321
7 End Pipes SGP/SS400 SUS304/316/321

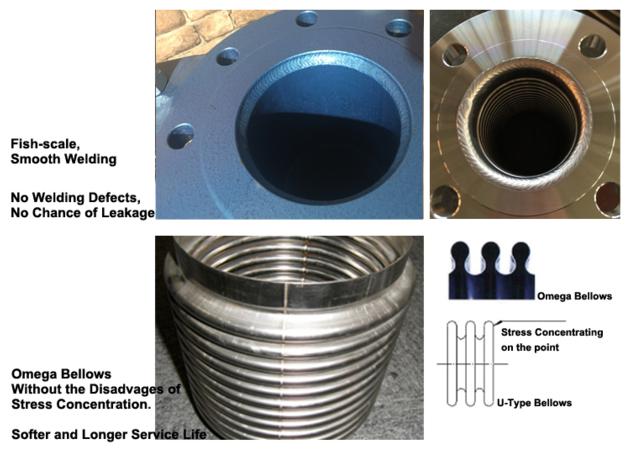

Features
1. Excellent Welding Technology, like a fish swimming in water.
2. Omega Bellows, More flexible and longer service life.

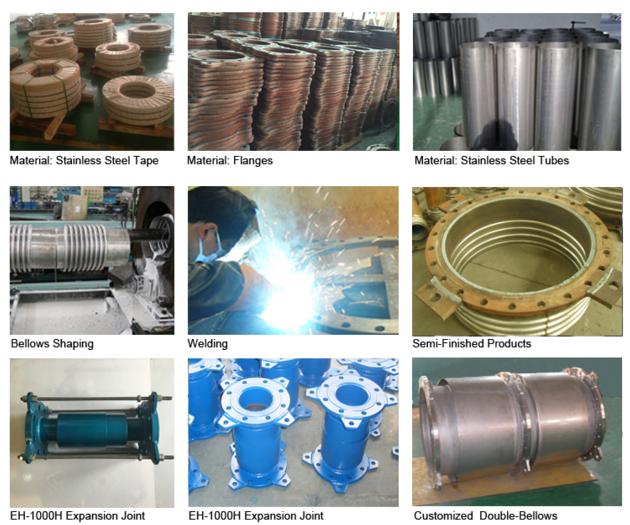

Production Process
Production Capacity
Flexible Sprinkler Hoses: 350,000pcs per Month
Flexible Joints/ Expansion Joints: 80,000pcs Annual
Gas Connector: 300,000pcs Per Month
Water Connectors: 5,000,000m Annual
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
|
