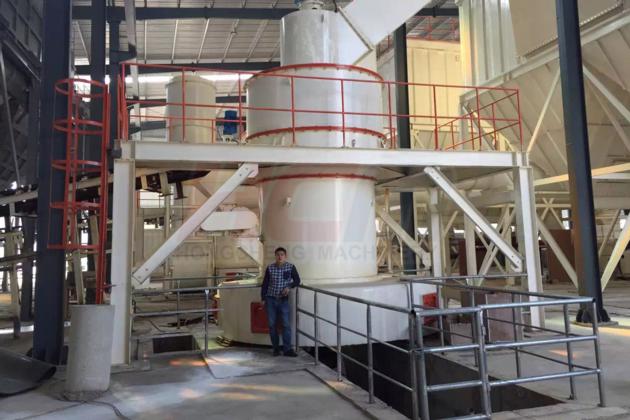

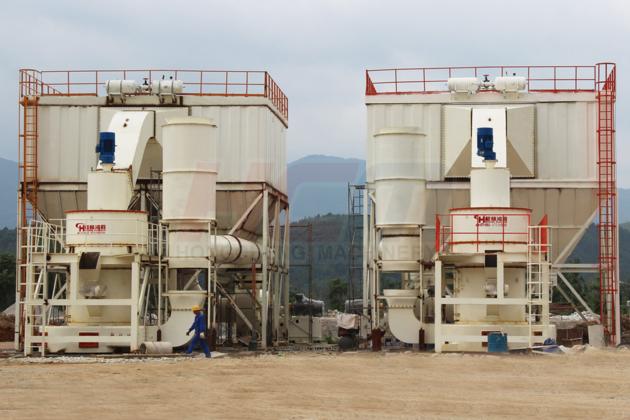

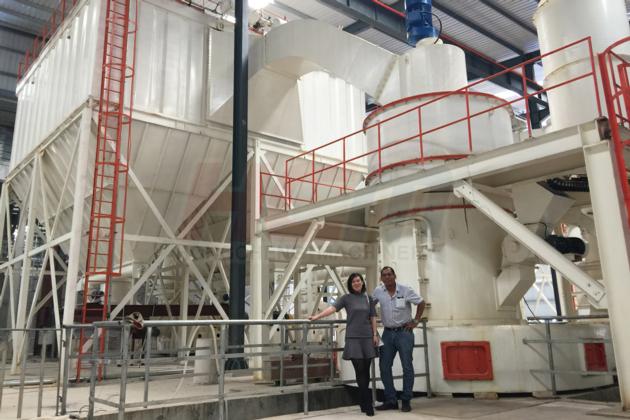

Large Grinding Mill

HC Large-scale Grinding Mill was developed on the basis of HC1700 Grinding Mill. The HC series mill is a really high efficiency, energy saving and environmentally friendly ultra-large grinding mill referenced Germany technology and applied multiple patents. The capacity can reach 90t/h and can fulfill the national industry policy and large-scale industry producing requirement. The equipment fill the blank of large grinding mill in China, and extend the application fields of pendulum grinding mill. The HC Large-scale Grinding Mill has international advanced technology which largely increase efficiency. The mill is able to be the replacement of any other facilities, it has the best performance in large-scale powder processing of power plant desulfuation, manganese industries.
At present, Hongcheng HC Large-scale Grinding Mill has a wide application in more than one hundred enterprises of manganese, petrol coke, power plant desulfuation, talc, calcium carbonate industry.

Working Principle
Powder processing system technological process: raw material will be transport to semi-open shed by special vehicle, and then be shoveled into the crusher to be crushed into particles smaller than 40mm. The material particles will be raised to the storage hopper by the elevator and then be evenly sent to the main mill for grinding by feeder. The qualified fine powder will be classified and blew to the pulse dust collector as product and finally discharged from the dust collector. The product will be transported to powder storage. The system is designed as open circuit system with full pulse dust collecting (able to collect 99.9% of the powder), so the equipment has higher capacity and lower pollution. The product can be deep-processed according to actual technology. HC grinding mill has really high capacity so the product cannot be packed by hand-filling, the packing job is supposed to be done after the powder be sent to the storage tank.

Application Range
HC3000 Grinding Mill is widely used to grind any non-metallic minerals with Moh's hardness below 7 and moisture below 10%, such as limestone, calcite, activated carbon, talc, dolomite, titanium dioxide, quartz, bauxite, marble, feldspar, barite, fluorite, gypsum, ilmenite, phosphorite, clay, graphite, kaolin, diabase, gangue, wollastonite, quick lime, silicon carbide, bentonite, manganese. The fineness can be adjusted from 0.18mm(80 mesh) to 0.038mm(400 mesh), whose range is much wider than that of traditional raymond mill.
