Laptop Color Doppler ultrasound machine with convex probe

real-time-Supported probes: 3C6C convex array probe, L4C/8L4C/10L25C linear array probe, 6E1C
transvaginal probe, 6C15C/3C20C micro-convex probe, 6I7C rectal probe;
-Probe frequency: 4.3-12.0MHz
-Movie playback: 500-1500 frames;
-Image magnification: real-time scanning (B, B+C, 2B, 4B), status: 10 times
-Image storage: support JPG image format and AVI movie format,
-Support local storage;
-Support DICOM, comply with DICOM3.0 standard
-Built-in workstation: support large-capacity hard disk (★≥128GB), support patient data retrieval and browsing
-Volume calculation software package: abdomen, gynecology, obstetrics, small organs, heart, blood vessels, etc.
-Battery: Built-in large-capacity lithium battery, continuous working time ≥ 1.5 hours

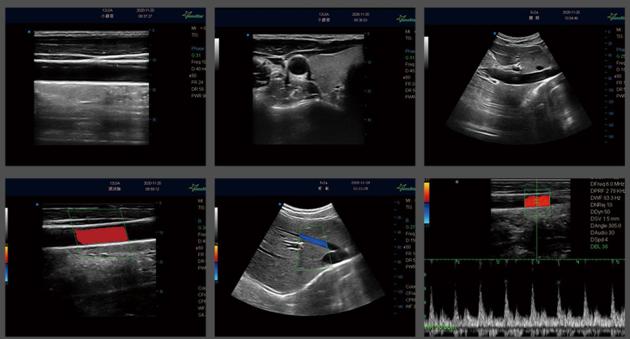

-Image parameters
B mode
1. Grayscale mapping: ≥15 files 2. Frame related: ≥8 files 3. Edge enhancement: ≥15 files
4. Image enhancement: ≥5 files 5. Space composite: switch adjustable
6. Image flip: up and down, left and right 7. Maximum scanning depth: ≥250mm
M mode
1. Sweep Sleep: ≥4 levels adjustable 2. Line Average: ≥5 files
PW mode
1. SV size/position: SV size 1.0–8.0mm adjustable 2. PRF: ≥5 files 3. Sweep Sleep: ≥8 levels adjustable
4. Correction angle: 360 degrees 5. Spectrogram flip: switch adjustable 6. Doppler sound: ≥20 files
Color/PDI mode
1. Wall filter ≥ 6 gears adjustable 2. Color afterglow: 2DB---80DB
3. Color priority: 1-255 4. Pulse frequency: ≥ 8 gears adjustable
-Measurement and calculation
1. B/C mode routine measurement: distance, area, circumference, volume, angle, area ratio, distance ratio
2. Routine measurement in M mode: time, slope, heart rate, distance
3. Routine measurement in Doppler mode: heart rate, resistance index, pulsatility index, time, blood flow, peak blood flow
4. Obstetrics application measurement: double parietal diameter, femur length, head circumference, abdominal circumference,
head arm diameter, gestational sac length, first stage, second stage, general obstetrics, amniotic fluid index, routine
5. Gynecological B-mode application measurement 6. Heart B, M mode application measurement
7. Vascular PW mode application measurement 8. Small organ B mode application measurement
9. Urinary B-mode application measurement 10. Pediatric B mode application measurement
11. Abdominal B mode application measurement

Standard configuration and optional accessories
Standard Configuration:
1 x full digital host (128G hard disk built in the host); 1 x 3C6C convex array probe; 1 x 7L4C linear array probe;
1 x user manual;1 x power cable;
Optional accessories:
6E1C transvaginal probe; 6C15C micro-convex probe; 6I7C rectal probe; USB report printer; black and white video printer;
color video printer; puncture frame; trolley;
