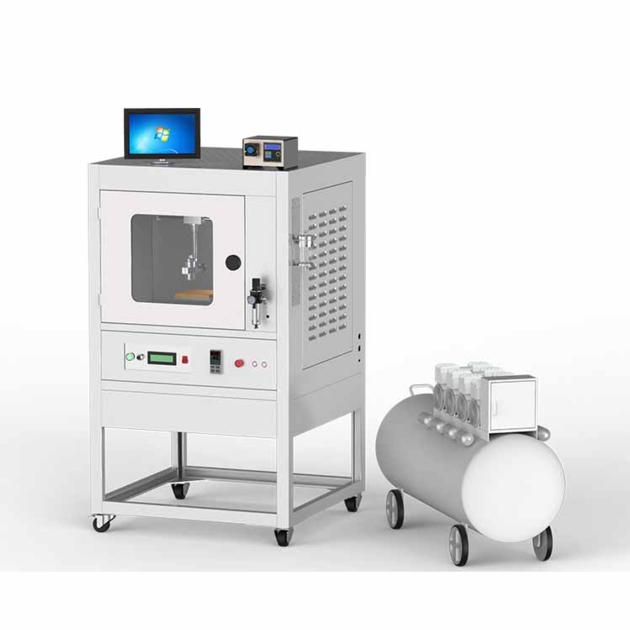

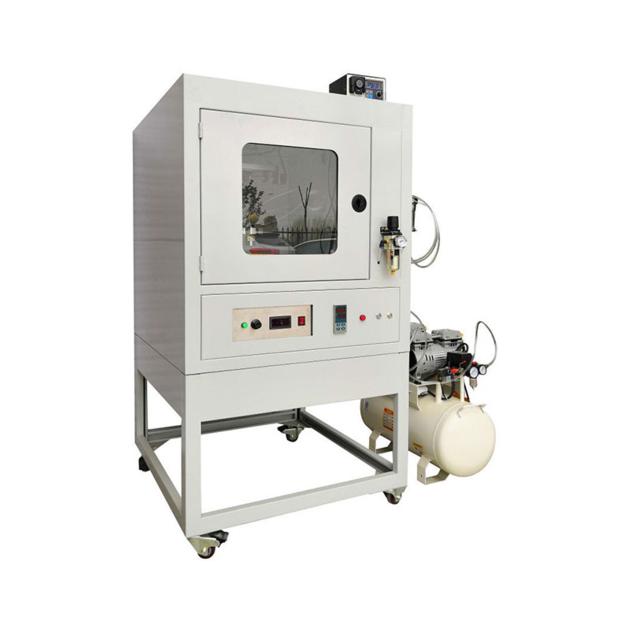

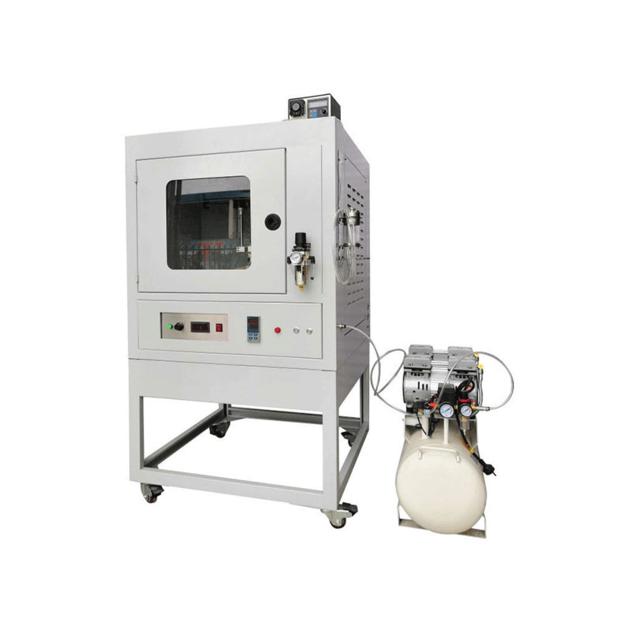

Laboratory Ultrasonic Pyrolysis Sprayer Max Temperature 500c for Perovskite Solar Cells
| Price: | US$ 25000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T D/P Western Union Paypal Money Gram Others |
| Port of Export: | Zhengzhou, Shanghai, Qingdao, etc. |
Product Details
| Model No.: | CY-USP130-A | Brand Name: | CYKY |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Supply voltage AC220V, 50Hz

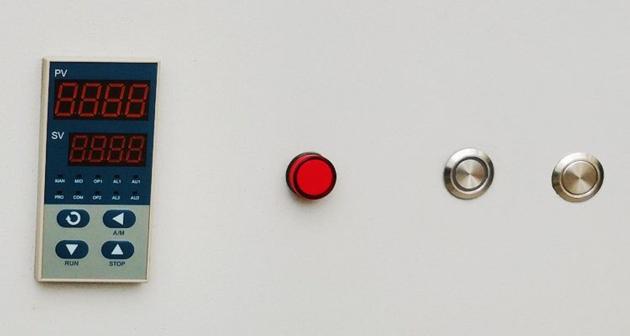

Max power 3.5KW (including compressor + peristaltic pump 1.5KW) Ultrasonic sprayer 40KHz 130W Liquid viscosity 1-50mPa·s (cP) Nozzle stroke X-Y axis up to 190mm Moving speed 10-180mm/s (x-axis direction) 10-180mm/s (Y-axis direction) Substrate heater plate 150mm×150mm Max temperature 500℃ Temperature control method AI-PID temperature control dispensing tank capacity 50mL / 250mL (two containers included) Peristaltic pump dispensing rate 0.006-41mL/min Control method Industrial computer + instrument panel Overall size 850mm×850mm×1450mm |
Packaging & Delivery
| Packaging: | Standard export wooden box packaging |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 200 Sets/Month |
Product Description
Introduction:
The spray pyrolysis film preparation method is to atomize the solution and spray it onto a heated substrate, and then obtain a desired material structure on the substrate. This equipment is an ultrasonic spray pyrolysis equipment independently developed by our company. It is equipped with 40KHz 130W ultrasonic sprayer, PID temperature-controlled substrate heater plate, high precision peristaltic pump and precision programmable stepping motor moving mechanism. The integrated design of the device can accurately control the parameters such as the amount of solution, the speed of the spray particles and the size of the spray particles, and the substrate temperature can also be controlled to meet your various experimental needs.
Application :
This material preparation method is particularly suitable for the deposition of oxides and has a long history of application in the preparation of transparent electrodes. This method is now widely used in the preparation of perovskite solar cells.
|
