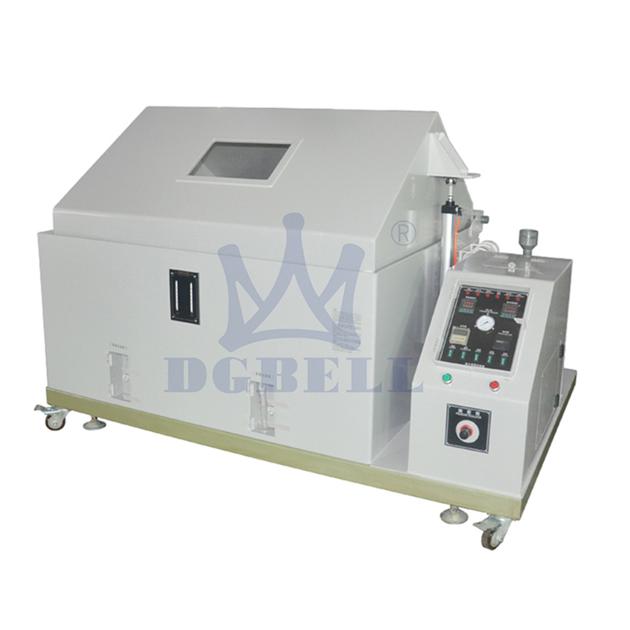

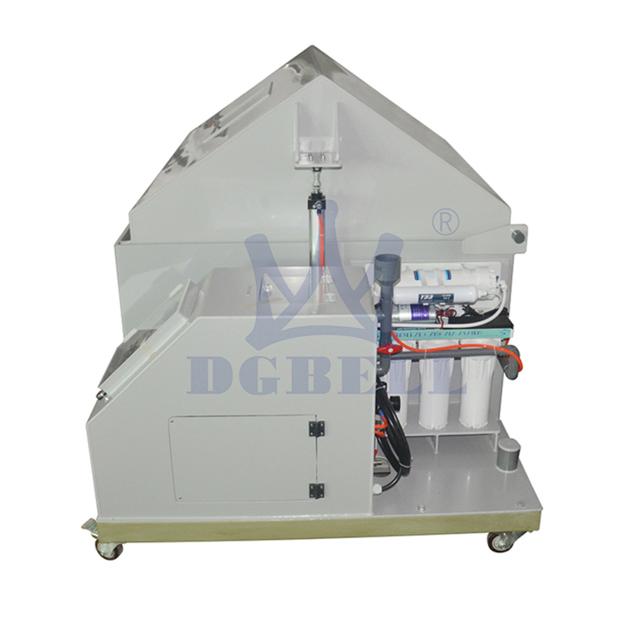

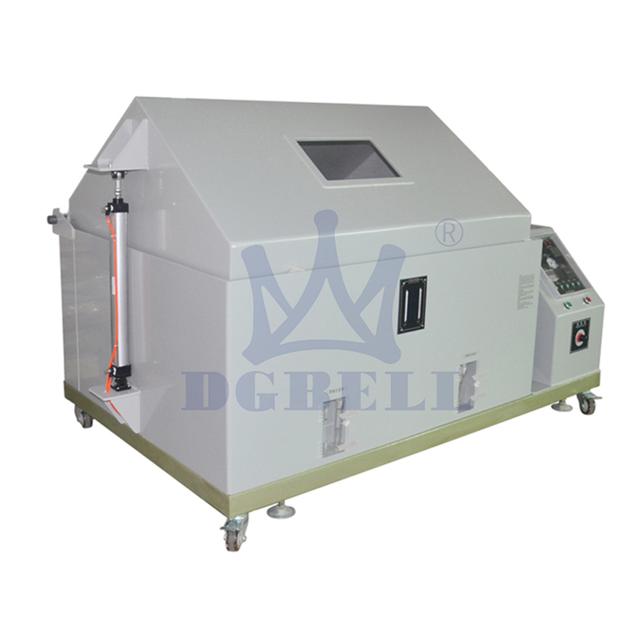

Laboratory Environmental Programmable Complex Salt Spray Corrosion Climatic Test Chamber

Relevant standards requirement:

1. Test Object: battery pack and system.

2. Refer GB/T28046.4 part 5.5.2 test method, test according to GT/T2423.17 test conditions.

3. The salt solution was made up with sodium chloride (chemically pure and analytically pure) and distilled or deionized water,Its concentration is (5 + 1)% (mass fraction).

(35 ¯ 2) ℃, the measured pH value is between 6.5-7.2.

4. Placed the test objects in the salt spray chamber for cycling test. Each cycling duration for 24h. Spray salt solution to the test object for 8 hours under the temperature of (35 ¯ 2) ℃ , remain for 16 hours. Between the forth and the fifth hour in one cycles should be according to test requirement in GB/T 28046.1-2011, test mode with 3.2.

5. Total 6 cycles testing.

6. Salt spray test is not necessary for the test objects being installed in passenger, luggage or cargo compartments.



Features:

1. Control Mode: Touch screen programmable control PLC, networking; mobile phone APP alarm; with USB interface, with RJ485 interface can be connected to computer control, exclusive network control software. Remote monitoring and data acquisition.

2. Other Auxiliary Functions:

1) Main-subsidiary type trolley for specimen in and out of the test chamber.

2) Explosion-proof, Pressure relief, Smoke exhaust, Fire extinguishing, Video monitoring.



Product specification:

Product Name

Complex Salt Spray Test Chamber

Model No.

BE-8209-12m±

BE-8209-15m±

Internal Dimension

W2000 X D3000 X H2000 mm

W2500 X D3000 X H2000 mm

External Dimension

W2400 X D5000 X H3000 mm

W2900 X D5000 X H3000 mm
