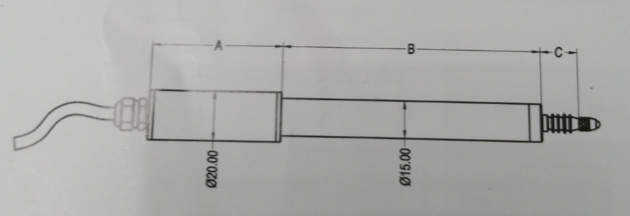

LVDT Displacement Sensor

Description:
The WYDC LVDT differential transformer displacement sensor has good environmental adaptability. It is widely used to measure various physical quantities that can be changed into displacement in advance and to measure the mechanical quantities (such as tension, pressure, vibration, liquid level, etc.) that can be converted into displacement. Microelectronic technology is adopted in the amplifying circuit of the sensor


The Working Principle
The WYDC LVDT differential transformer is a sensor that converts the linear displacement into a simulated voltage. Because of its structure as a whole, the durability and environment resistance are excellent, and the temperature range is -20℃-120 Differential Transformer displacment sensot is made of a promary coil, a sesncendary coil and a movable core. Added fixed voltage and frequency of sine wave excitation on primary coil and secondary coil induces response voltage by moveable core.The output characteristics of two of the secondary coil and the excitation signal is a differential output with the frequency of the AC voltage. Through the detection circuit to be output DC voltage displacement. The detection circuit consists of a rectifier diode and a RC filter. The measurement range is a moving travel of a movable iron core, which is usually from a number of +mm to hundreds of mm. When the moving iron core is in the center position, the output voltage is 0 V: the positive and negative voltage, which is proportional to the moving distance, is produced when the movement is left and right. The linearity is less than 1% and the detection precision is m. The error increases when it exceeds the prescribed travel.
