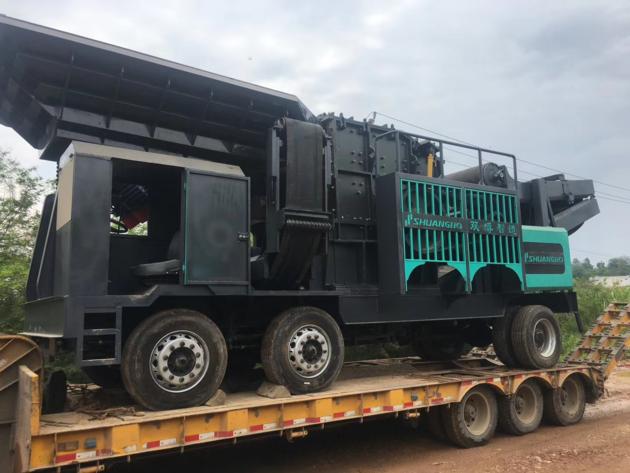

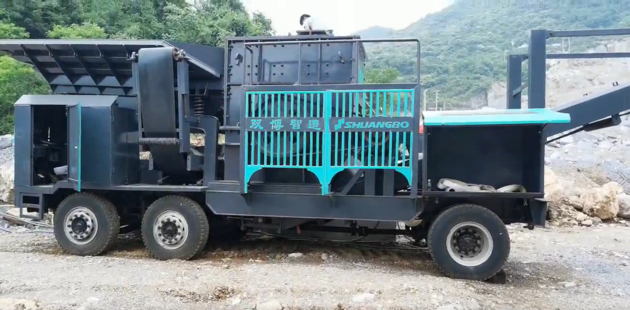

LTC tire hammer crushing station

Working principle: When the hammer crusher is working, the motor drives the rotor to rotate at high speed, and the material enters the crusher cavity evenly. The high-speed rotating hammer head impacts, shears and tears the material, causing the material to be broken. At the same time, the gravity of the material itself The material rushes from the high-speed rotating hammer head to the baffle and screen bar in the frame body. The material larger than the screen hole size is retained on the screen plate and continues to be hit and ground by the hammer until it is broken to the required discharge particle size and finally passes through the screen plate. discharged from the machine.
Flexible equipment configuration, saving time and effort

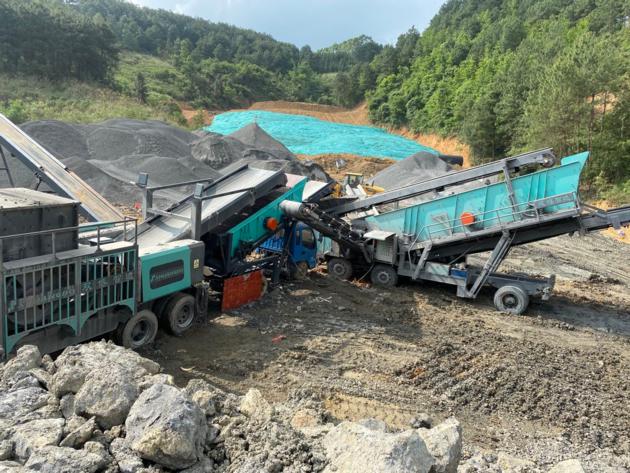

Used in mining ore crushing, highway, railway, road and bridge construction and other industries
Can handle lime bluestone and other stones with a hardness of 2-4 degrees
Flexible equipment configuration, saving time and effort
Overall machine weight: 37 tons
Size: 10300*3100*3600mm
