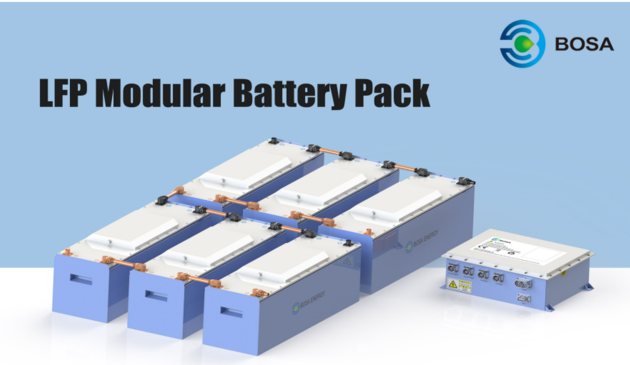

LFP Modular Battery Pack
| Price: | US$ 1472 |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | TT |
| Port of Export: |
Product Details
| Model No.: | Brand Name: | Bosa new energy |
|---|
| Certification: | |
|---|---|
| Specification: |
General specification,24V,230Ah 24V,340Ah
|
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 4-6W |
| Production Capacity: |
Product Description
Advantages:
High safety. Assembled with reliable LFP cells,equipped with smart BMS
High Energy density. lts energy density is threetimes that of lead-acid batteries.
With 1P67 housing. Ensure the internal humidity andwakerprgofness of the battery pack.
Stainless steel casing. Effectively preventsseawatercorrosio.
Simple and safe. Quick plug can be installed withone hand.
Modular design, it can be freely connected in seriesand parallel.
Applications:
Yacht/Painted BoatsElectric Boats/Sweetwater BoatsCleaning Boats/Blue-green Algae Boats
LFP modular battery pack specification:
Noramal battery voltage 25.6V 25.6V
Noramal battery capacity 230Ah 304Ah
Noramal batter batter energy capacity 5.888kwh 7.782kwh
Cycle life >3500cycles,@252℃
Recommended maximum continuous charge current 115A 152A
Recommended max.continuous discharge current 230A 304A
Peak discharge current 350A（ 10s） 500A(10s)
Battery monitoring integrated
MasterBus communication Yes
Communication CAN 2.0
Terminals Quick plug
Mounting position long side
Product weight 442kg 54.52kg
Dimension(L*W*H) 580×220×275 700×220×275
Protection degree IP67
Parallel connection Up to 3p
Series connection Up to 3 2 S
Protections
over/under voltage, over current, over/under temperature
Safety relay integrated
|
