Krve40PP Stud Type Cam Follower with Eccentric Collar Stud Type Track Roller

KRVE40PP stud type track roller bearings for Telescopic fork and stacker crane-THB BEARINGS

Detailed information of THB stud type track roller bearings KRVE40PP:
full complement type, with eccentric, with seals at both sides.
Vollnadelig, mit Exzenter, mit Dichtung

It's composed of shaft, outer ring, needle rollers, seals, ribs, and fixing tread. They can support high radial loads as well as axial loads arising from slight misalignment and skewed running.
Application: cam gears, bed ways, conveying equipment, telescopic fork, stacker crane, etc.

Regular types in stocks or under production:
KRVE40PP
KRV16PP
KRV35PP
NUTR17
KRV40PP
NUTR30
KRV62PP
KRV72PP
KRV16PPA
KRV22PPA
KRV30PPA
KRV40PPA
KRV50PPA
KRV52PPA

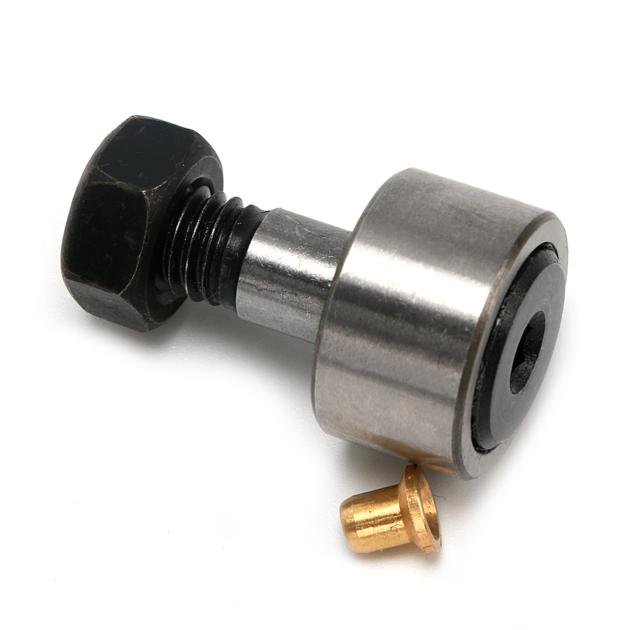

THB KR series Stud type cam followers are based on either needle or cylindrical roller bearings. Instead of an inner ring, they have a threaded solid stud (pin).

This kind of cam followers are available in several designs and variants to meet the requirements of different applications.

THB KR series Stud type cam followers are available:
- with or without a cage
- with different stud designs:
***a concentric seat
***an eccentric collar
- with several sealing solutions
- with the outer ring running surface profile:
***crowned as standard
***cylindrical (flat)
