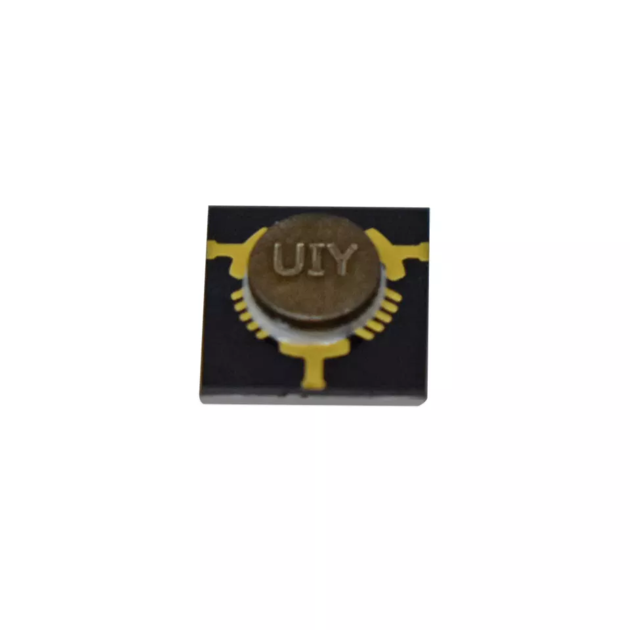

Ka Band 10W High Isolation Microstrip Circulator 32-38GHz

Ka Band 10W High Isolation Microstrip Circulator 32-38GHz

Product Name

Microstrip Circulator
Model Number

UIYMC33Y32T38

Frequency Range (GHz)

32.0-38.0

Insertion Loss Max (dB)

1.0

Isolation Min (dB)

14

VSWR Max

1.45

Power (W)

10

Connector Type

Microstrip

Temperature (®C)

-55~+85

Dimension L*W*H(mm)

3.5*3.5*2.5

Warranty

1 Year

Feature:

1. Can be dual junction even three for high isolation.

2. High RF performance, ultra-competitive price.

3. Custom design available upon request.

4. Guaranteed for one year standard.

Professional Radio Frequency (RF) / Microwave Device Supplier

Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.



→Found in 2003 & located in Shenzhen China. UIY is a professional manufacturer engaged in research, development, design, production sale & service of the civilian & military microwave communication device.



→Since its foundation, UIY has been keeping in-depth cooperation & communication with renowned enterprises, institutions, scientific research institutions. Our products are with well-equipped testing facilities & strong technical force. Selling well in all cities and provinces around China, our products are also sold all over the world.



→In recent years, our company has introduced a series of advanced equipment. The frequency range is from DC to 112GHz & average power is up to 20KW, with a wide range, good quality, reasonable price and stylish designs, our products are widely used in civil, military, telecommunication, armarium manufacturer, laboratory, aviation, aerospace, space technology & other fields.



→Main product: 1) RF Isolators. 2)RF Circulators. 3)RF Filters. 4)Power Divider / Splitter.5) Duplexer/Triplexer. 6)Hybridge Combiner. 7)Coaxial Termination. 8)Coaxial Attenuator. 9)Directional Coupler. 10)Waveguide to Coaxial Adapter etc.
