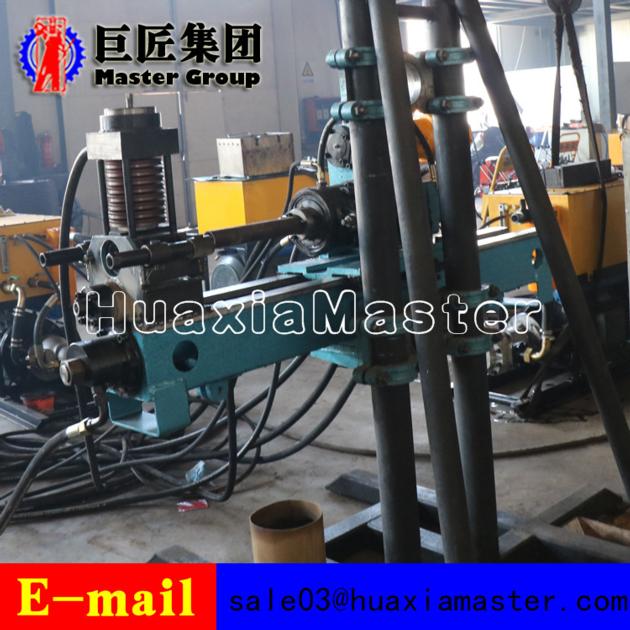

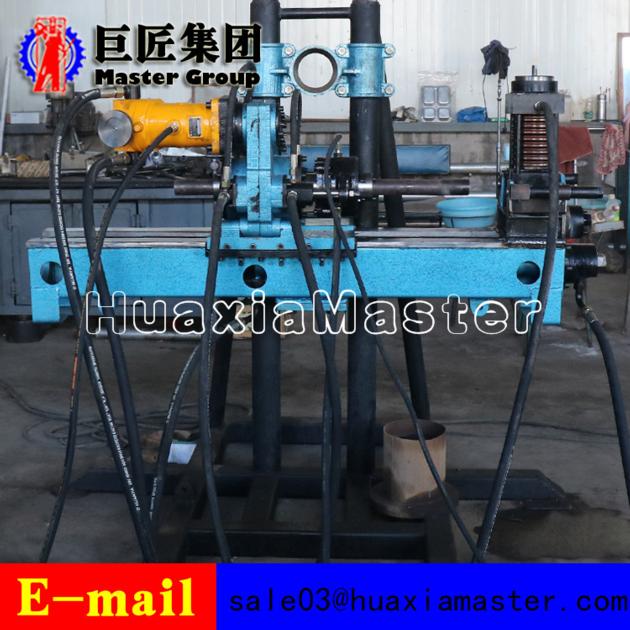

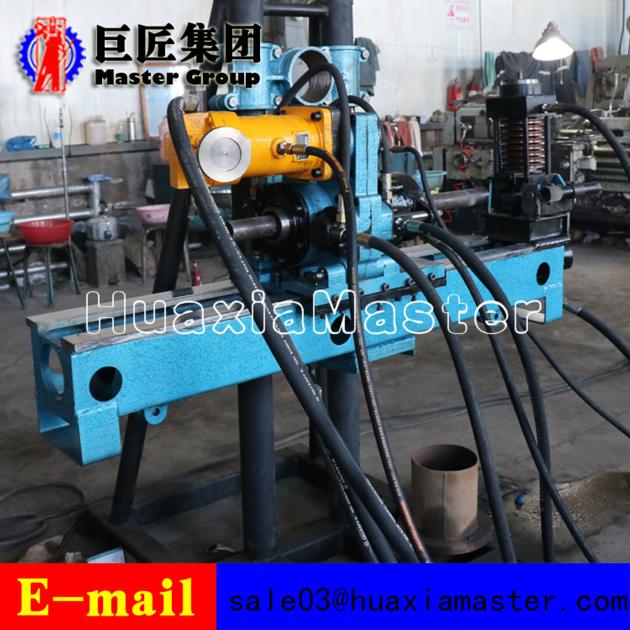

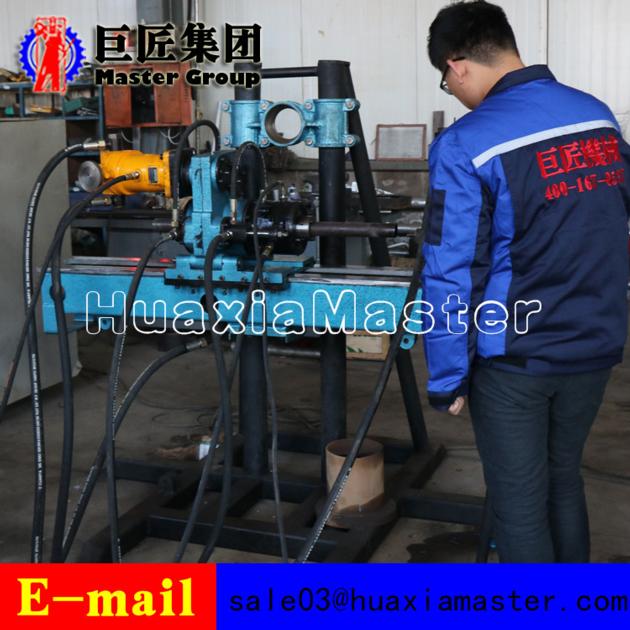

KY-250 Full Hydraulic Drilling Rig For Metal Mine Exploitation
| Price: | US$ 4000 |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | ky-250 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Drilling diameter Φ36.5mm /Φ46.5mm Drilling depth 250m（ô33 Steel drill rig）/200m（ô43 Steel drill rig） Borehole angle 0®-360® Spindle speed 400-1400r/min Spindle output torque 150-400nm Rated pulling force 40kn Rated pulling speed ＞0.3m/s Oil supply mode double gear pump Rated system pressure 16mpa Oil pump model CBF-F71/10 Hydraulic oil model antiwear hydraulic oil YB-N46/YB-N32 (winter) Motor model manual variable motor A6V80MA Motor specification 30kw Weight main engine 275kg/backbone 40kg/operating floor86kg/power car 420kg |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Key words: KY-250, mine drilling rig, full hydraulic,prospecting drill, prospecting equipment, mineral prospecting equipment, geophysical prospecting instruments,prospecting drilling rig 1.The brief introductions of KY-250 metal mine exploration drilling rig
The KY250 tunnel drilling rig is
small in size
light weight
convenient to install and operate
excellent linkage and adjustable speed range
suitable for drilling at any angle in the tunnel or surface.
