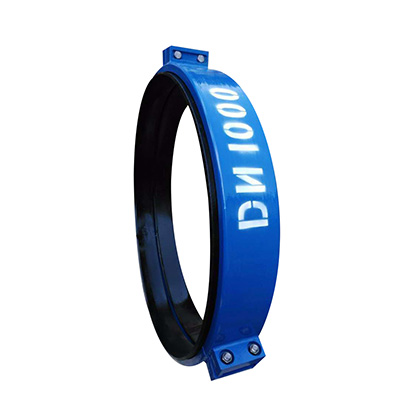

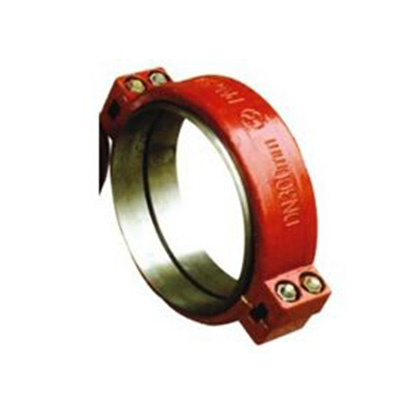

KRHD Steel Clamp Joint

KRHD Steel Clamp Joint
Dismantling Joint
External diameter of connection tube (mm) DN Normnal Diameter (mm) permitted axial load(kg) Compensation length(mm) Permitted outer corner Min. Length(mm) Installation Length(mm) Max. Length(mm) Matching bolt (mm)
89 80 2680 20 17.90 90 100 110 M12×60
108 100 3500 20 15.06 90 100 110 M14× 60
133 125 4620 20 13.05 95 105 115 M14× 60
159 150 5530 20 12.09 100 110 120 M14× 60
194 175 7370 20 10.51 100 110 120 M16× 60
219 200 9370 20 9.33 106 116 126 M16× 75
245 225 11750 20 8.36 112 122 132 M16× 80
273 250 14620 20 7.51 117 127 137 M18× 90
325 300 20680 20 6.32 120 130 140 M18× 100
377 350 27875 20 5.45 125 135 145 M18× 100
426 400 35600 20 4.80 130 140 150 M18× 110
480 450 45180 20 4.28 135 145 155 M18× 110
530 500 55120 20 3.88 140 150 160 M18× 120
630 600 65900 22 3.27 145 155 165 M18× 120
720 700 70170 22 2.86 150 160 170 M20× 120
820 800 84400 22 2.51 155 165 175 M20× 130
920 900 106200 22 2.24 160 170 180 M20× 130
1020 1000 116870 22 2.02 165 175 185 M20× 130
1220 1200 130600 24 1.69 170 180 190 M22× 140
1420 1400 146200 24 1.45 175 185 195 M22× 140
1620 1600 158300 24 1.27 180 190 200 M22× 140
1820 1800 166000 24 1.13 185 195 205 M22× 150
2020 2000 179000 24 1.01 190 200 210 M24× 150
2220 2200 187000 26 1.01 195 205 215 M24× 150
2420 2400 196000 26 1.01 200 210 220 M24× 150
2620 2600 206000 26 1.01 205 215 225 M24× 160
2830 2800 253300 26 1.01 210 220 230 M27× 160
3020 3000 260100 26 1.01 215 225 235 M27× 160
3220 3200 286900 26 1.01 220 230 240 M27× 180
